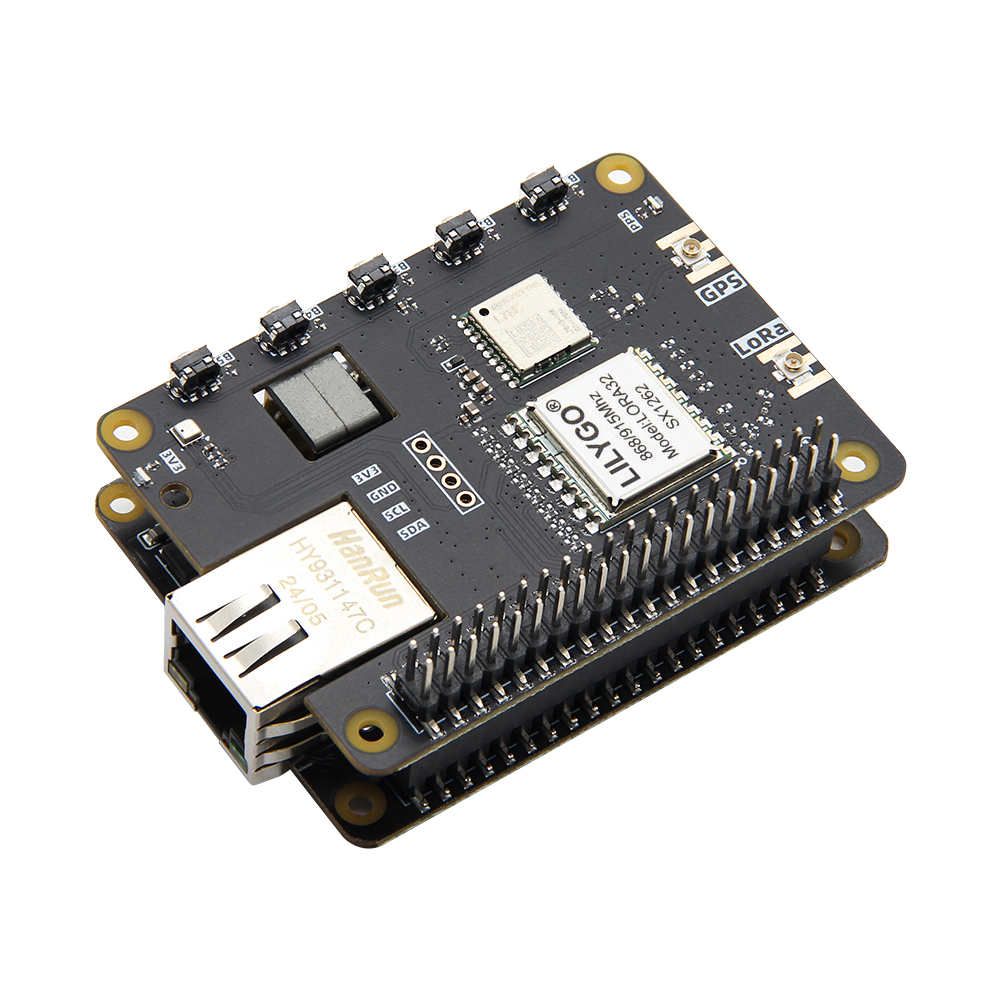

LILYGO T-ETH ELITE-LoRa Shield

T-ETH-LoRa-shield

Introduction

The LILYGO T-ETH ELITE-LoRa Shield is an expansion module specifically designed for the T-ETH-Elite main board. It integrates multi-band LoRa communication (supporting modules such as T-LR1121, SX1262, SX1276, and SX1280, covering 2.4GHz and 830–945MHz frequency bands) along with high-precision GPS positioning via the L76K module, making it ideal for long-range IoT communication and location tracking.

The module features a 40-PIN GPIO header (Raspberry Pi-compatible layout), SPI interface (MISO/MOSI/SCLK/CS), and control pins (RST/IRQ/BUSY), enabling rapid deployment of LoRa nodes or external sensors. With four M2.5 mounting holes, it ensures stable expansion.

When paired with the main board’s Ethernet (W5500), Wi-Fi/Bluetooth, and PoE power supply, it enables hybrid communication gateway setups—suitable for smart agriculture, logistics tracking, environmental monitoring, and more. The shield is developer-friendly and compatible with platforms like Arduino and ESP-IDF.

Appearance and function introduction

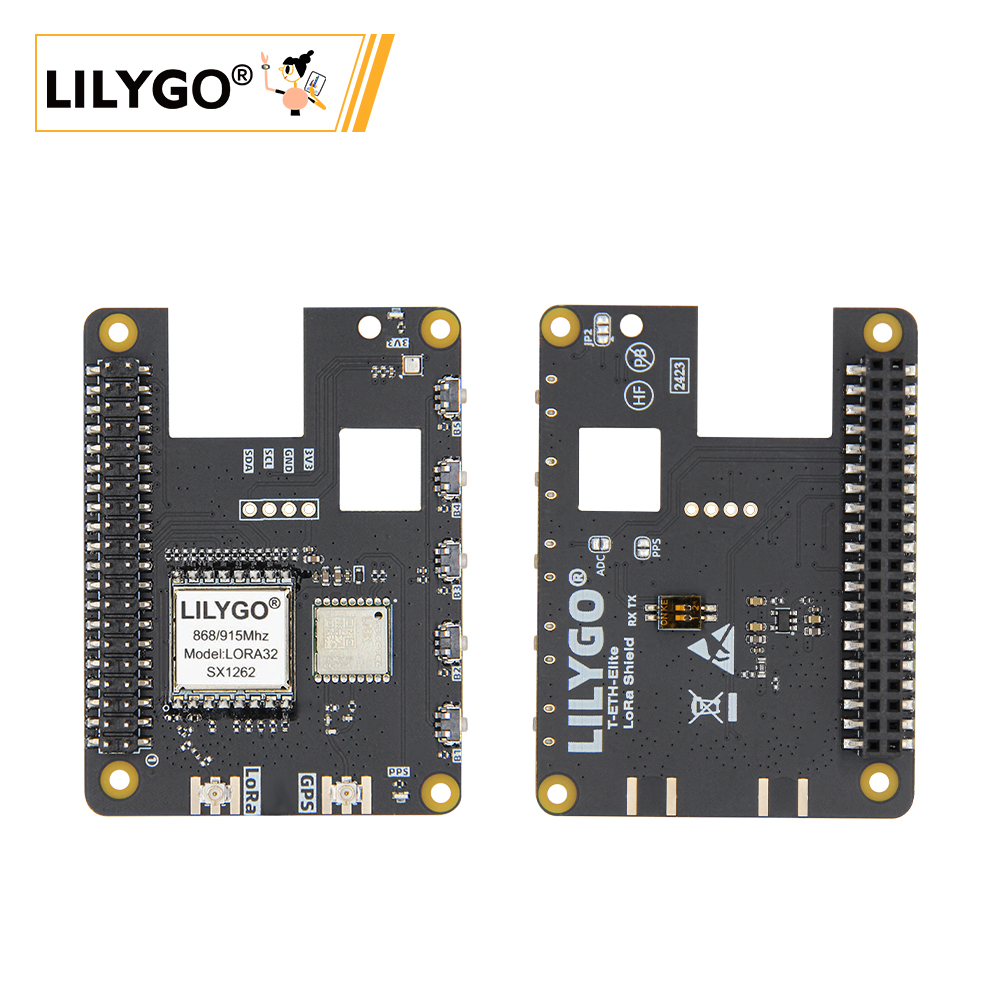

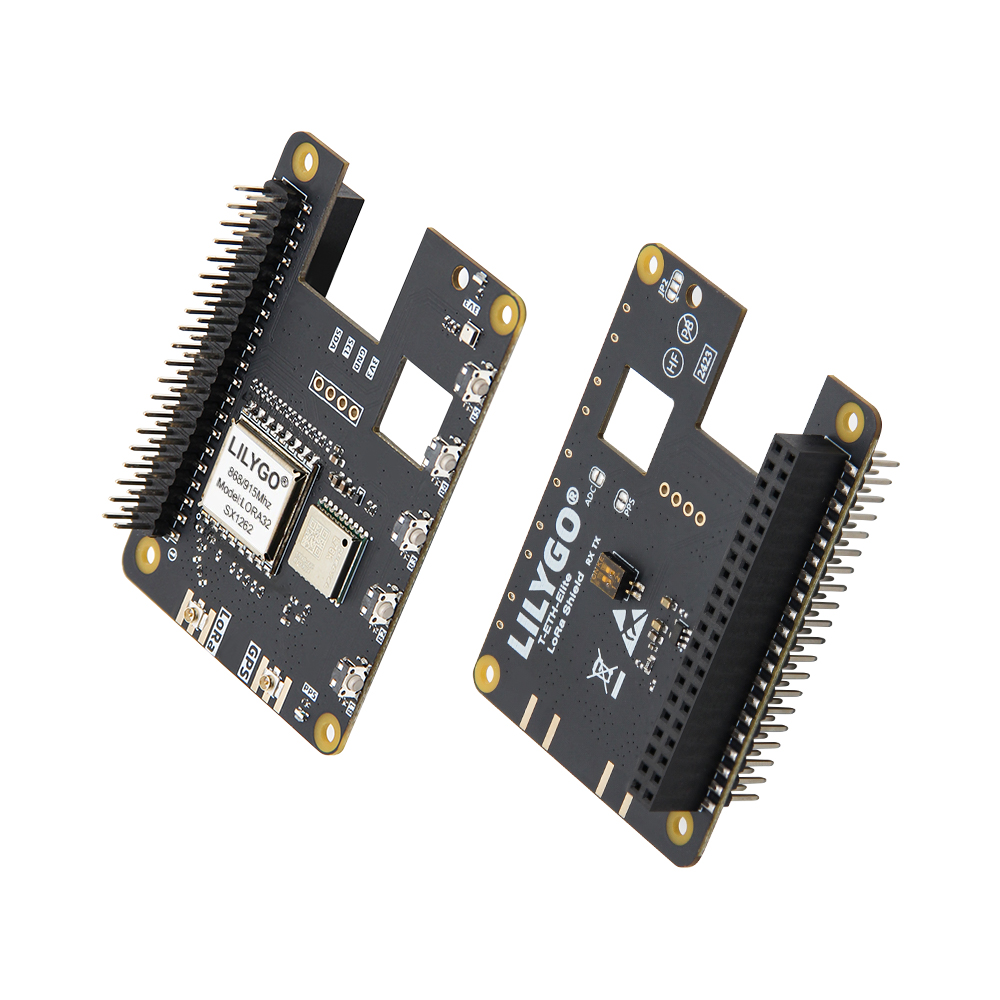

Appearance

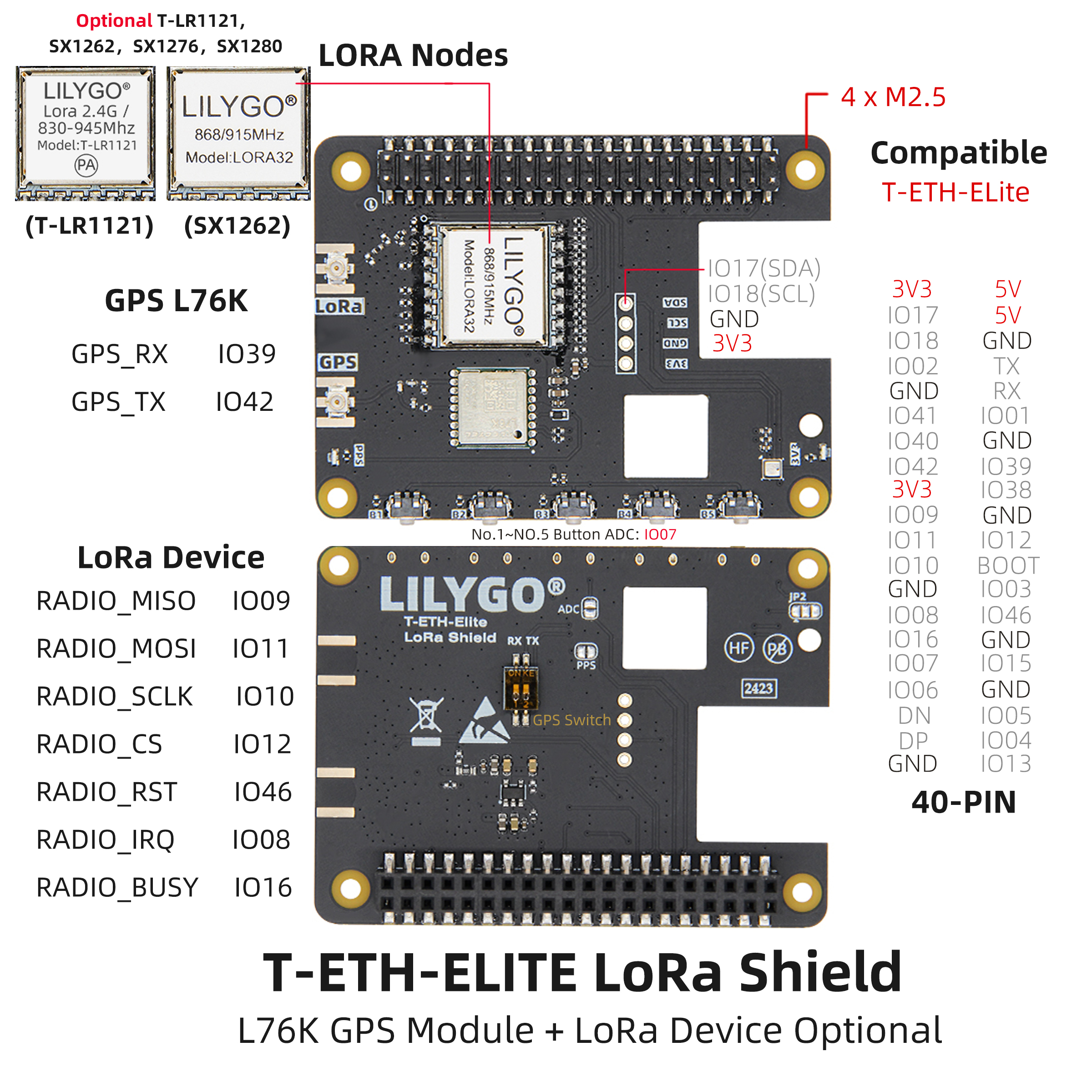

Pinmap

Module Information and Specifications

Description

T-ETH-ELITE Mainboard + T-ETH-LoRa Expansion Board:

Combination: Mainboard + LoRa Module Expansion Board

Function: Provides terminal device communication capabilities, supporting multi-mode LoRa modules (such as SX1276/SX1262), and can integrate GPS for location tracking.

Scenario: Suitable for mobile terminal applications such as logistics tracking, asset location, and outdoor sensor data transmission.
