Introduction
The LILYGO T7-C6 is a development board based on the ESP32-C6 chip, integrating Wi-Fi 6, Bluetooth 5 (BLE), and Thread/Zigbee support, making it ideal for IoT and wireless communication projects.
This board features a rich set of GPIO pins (GPIO0–GPIO23), ADC (analog-to-digital conversion) capabilities, and 4MB Flash storage. Its pin layout includes a JST SH 4-Pin connector (GND, 3V, TX, RX) and supports SPI (SDIO) communication, enabling seamless connectivity with sensors and peripherals.
With 5V and 3.3V power outputs, the board can power a variety of external devices. It is an excellent choice for developers working on smart home systems, remote monitoring, and other embedded applications.
Appearance and function introduction

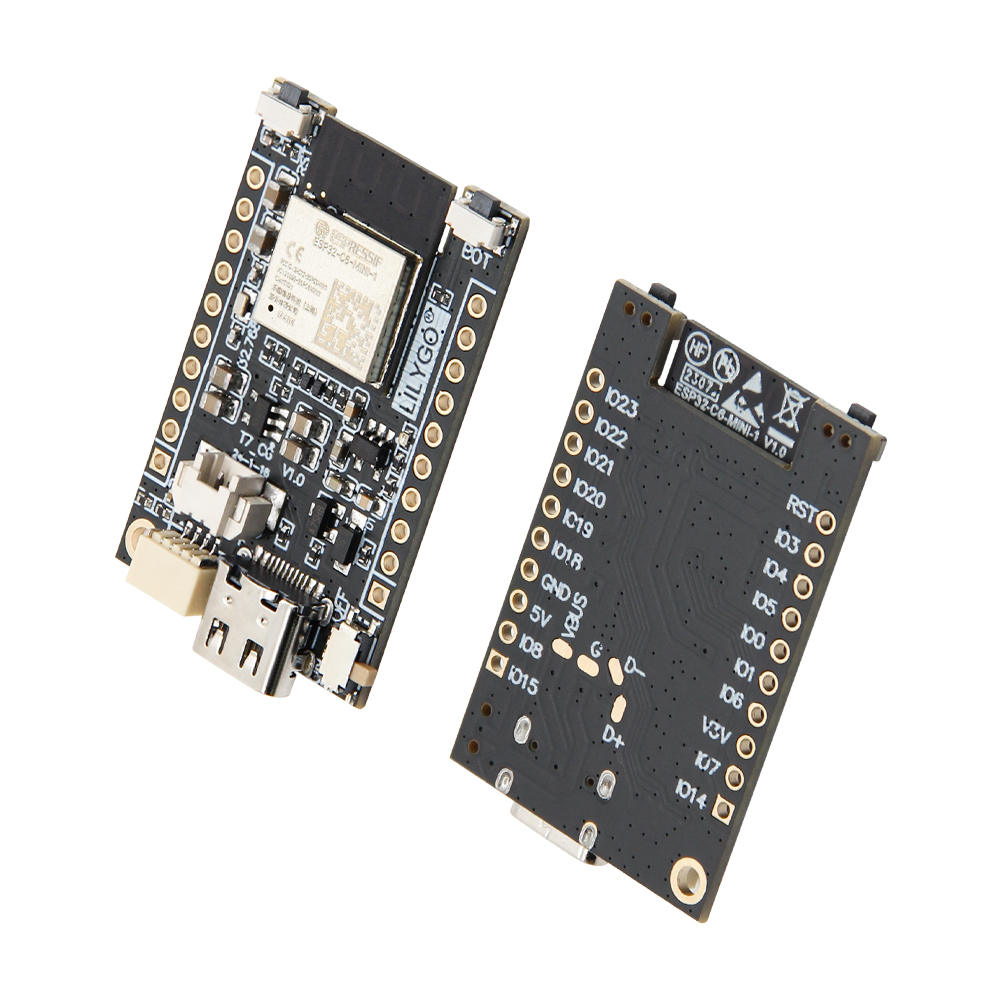

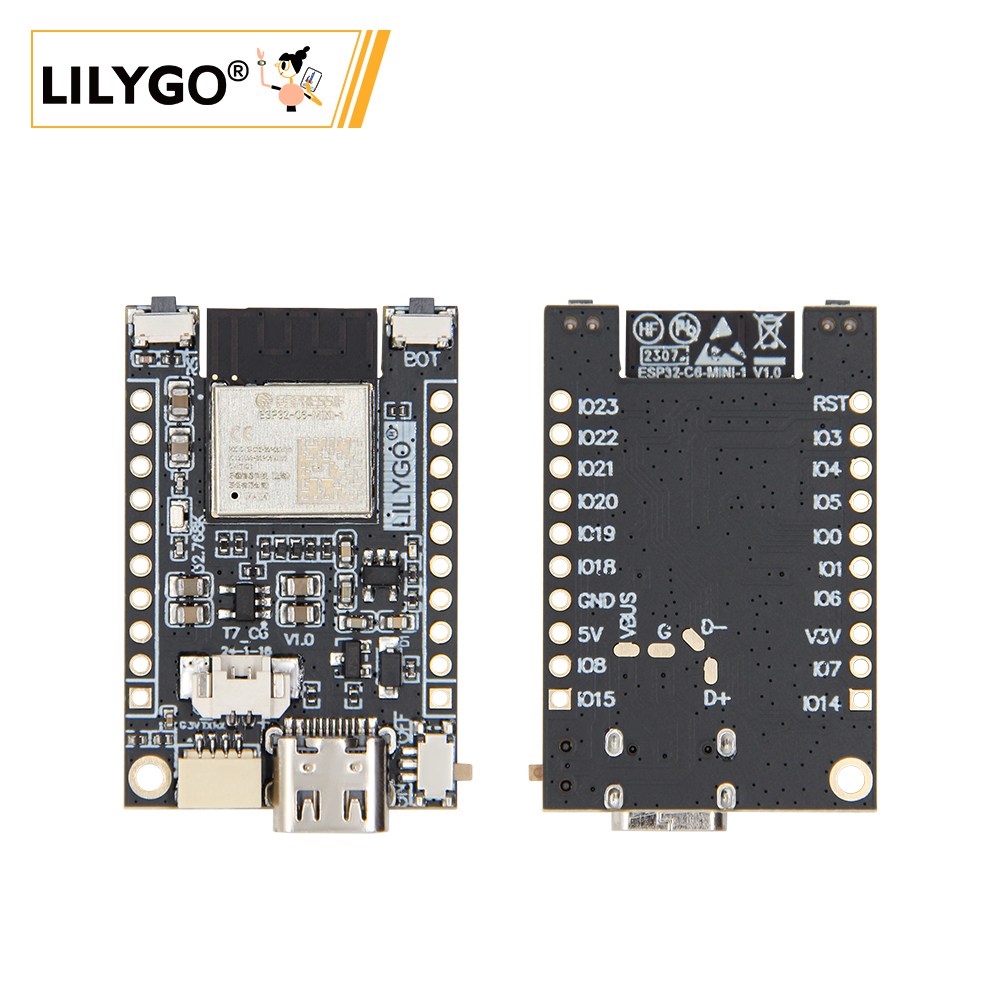

Appearance

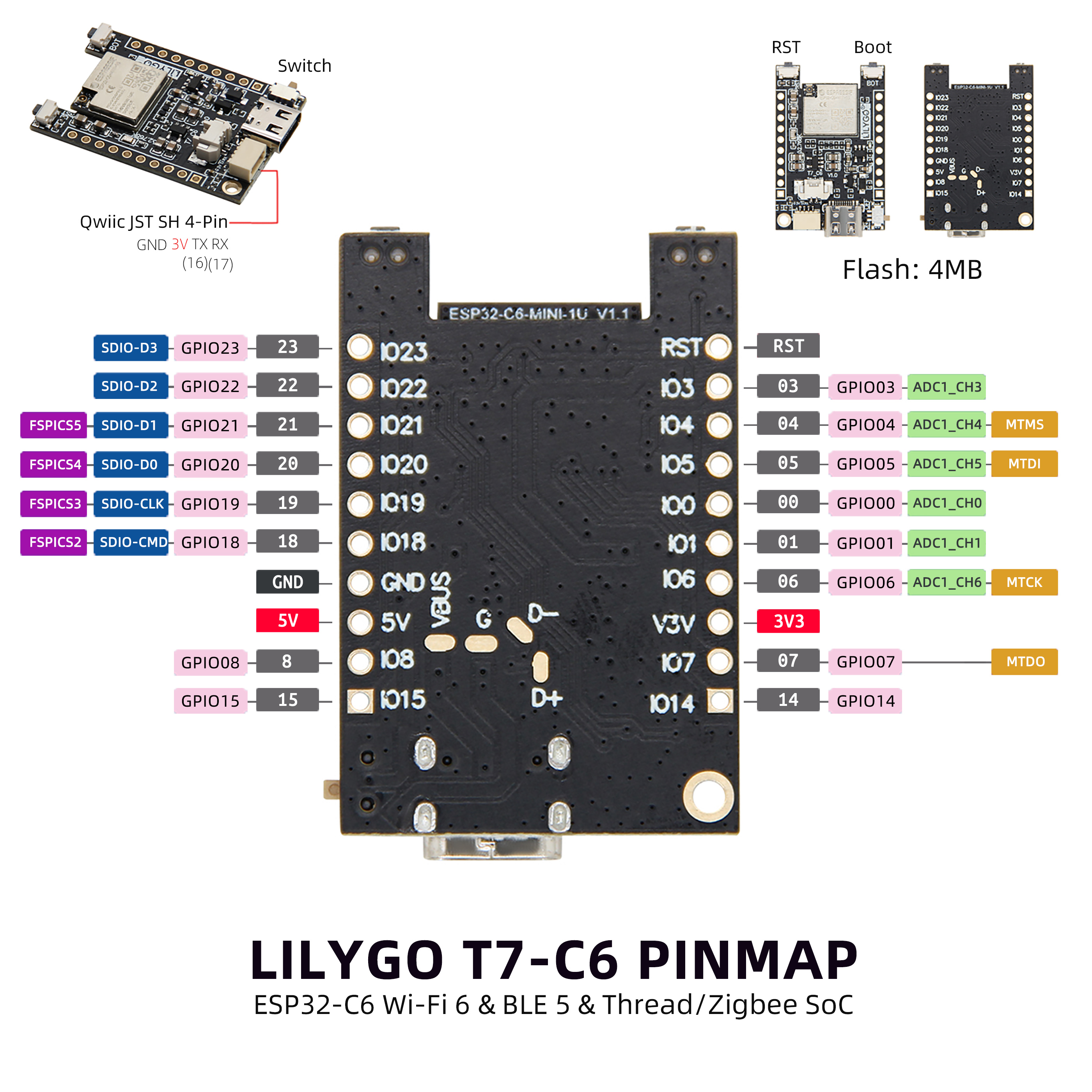

Pinmap
Module Information and Specifications
Description
| Component | Description |
|---|---|
| MCU | ESP32-C6-MINI-1 |
| Flash | 4MB |
| Battery chip | TP4065 |
| wireless | 2.4g Wi-Fi 6, Bluetooth 5 (LE), 802.15.4 |
| Power | 5V/500mA |
| button | 1 x RST button + 1 x BOOT button |
| Extended Interface | 1 × QWIIC interface |
| Hole | 1 × 2mmpositioning holes |
Related Links
Github：T7 C6
Schematic Diagram
Software Design
Arduino Set Parameters
| Arduino IDE Setting | Value |
|---|---|
| Board | ESP32C6 Dev Module |
| Port | Your port |
| CPU Frequency | 160MHz |
| Core Debug Level | None |
| USB DFU On Boot | Disable |
| Flash Mode | QIO |
| Flash Size | 4MB(32Mb) |
| Partition Scheme | Huge APP (3MB No OTA/1MB SPIFFS) |
| Upload Speed | 921600 |
