LILYGO T-Beam SUPREME

Version Iteration:

Purchase Links

Table of Contents

• Description
• Preview
• Modules
• Quick Start
• Pin Overview
• Related Tests
• FAQ
• Projects
• Resources
• Dependent Libraries

Description

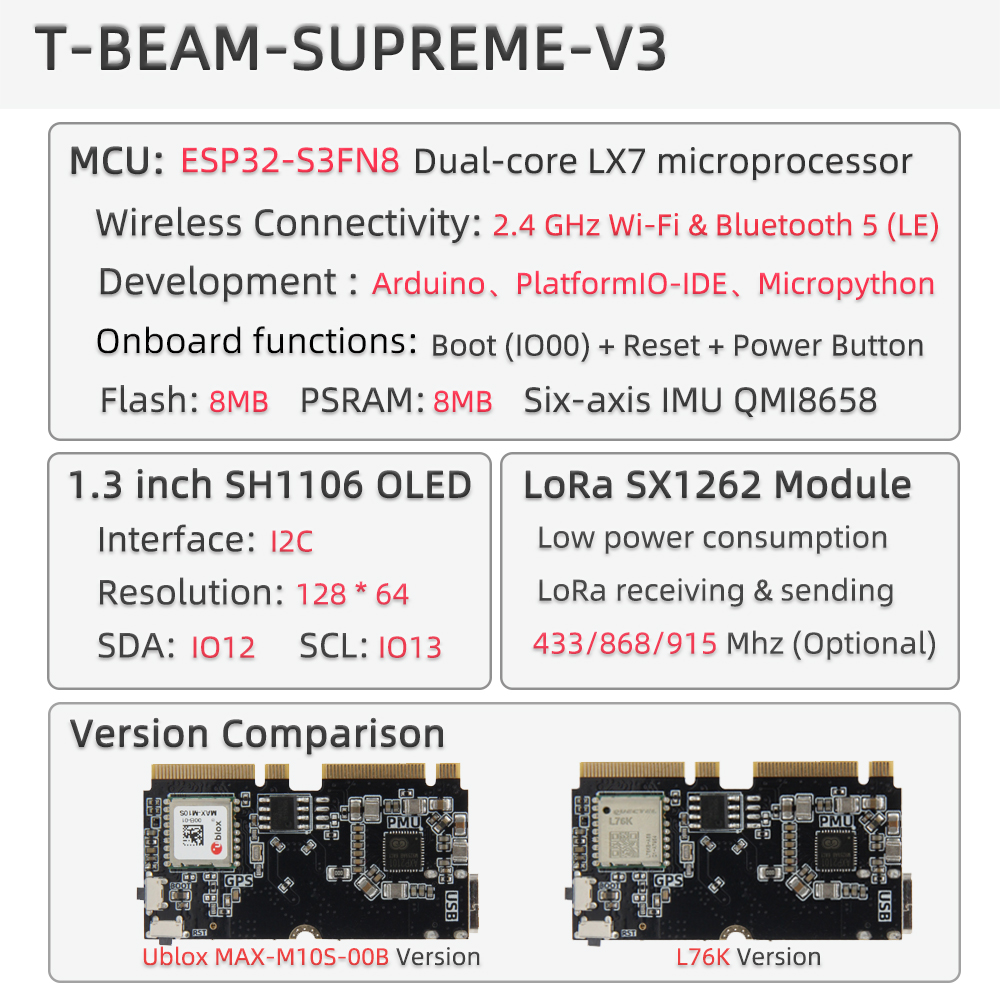

T-BEAM-SUPREME V3.0 is a high-performance multifunctional IoT development board based on the ESP32-S3FN8 dual-core processor, supporting Wi-Fi 802.11 b/g/n and Bluetooth 5.0, providing flexible wireless connectivity. The development board is compatible with Arduino-IDE, MicroPython, and VS Code programming environments, equipped with 8MB PSRAM and 8MB Flash storage, and integrates a six-axis sensor (QMI8658), temperature/humidity/pressure sensor (BME280), 3.7V 18650 battery power supply interface, and multifunctional buttons (Boot/Reset/Power).

It features a 1.3-inch SH1106 OLED screen (128x64 resolution, I2C interface), supports LoRa SX1262 module (covering 433/868/915/923MHz frequency bands), enabling long-range low-power communication. Additionally, users can flexibly choose between Ublox MAX-M10S or L76K GPS module versions to meet precise positioning requirements, suitable for smart hardware, environmental monitoring, and IoT node development scenarios.

Preview

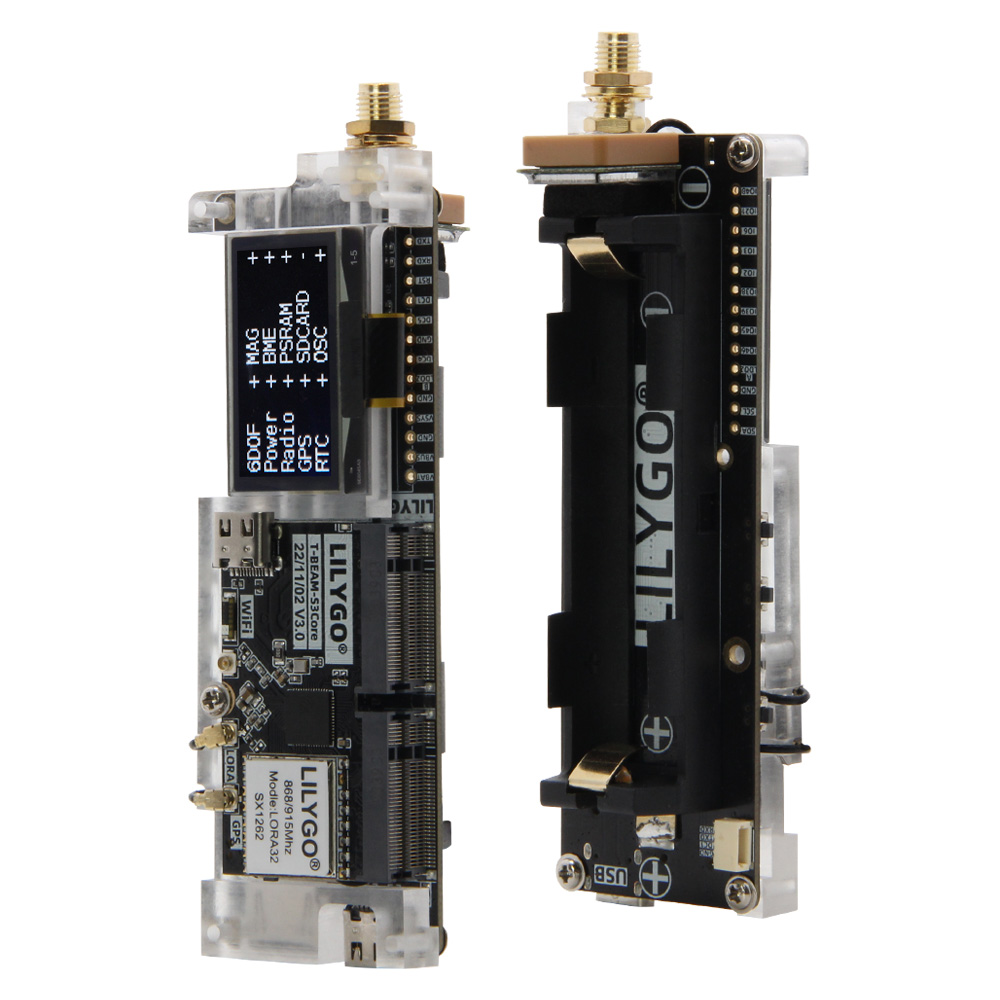

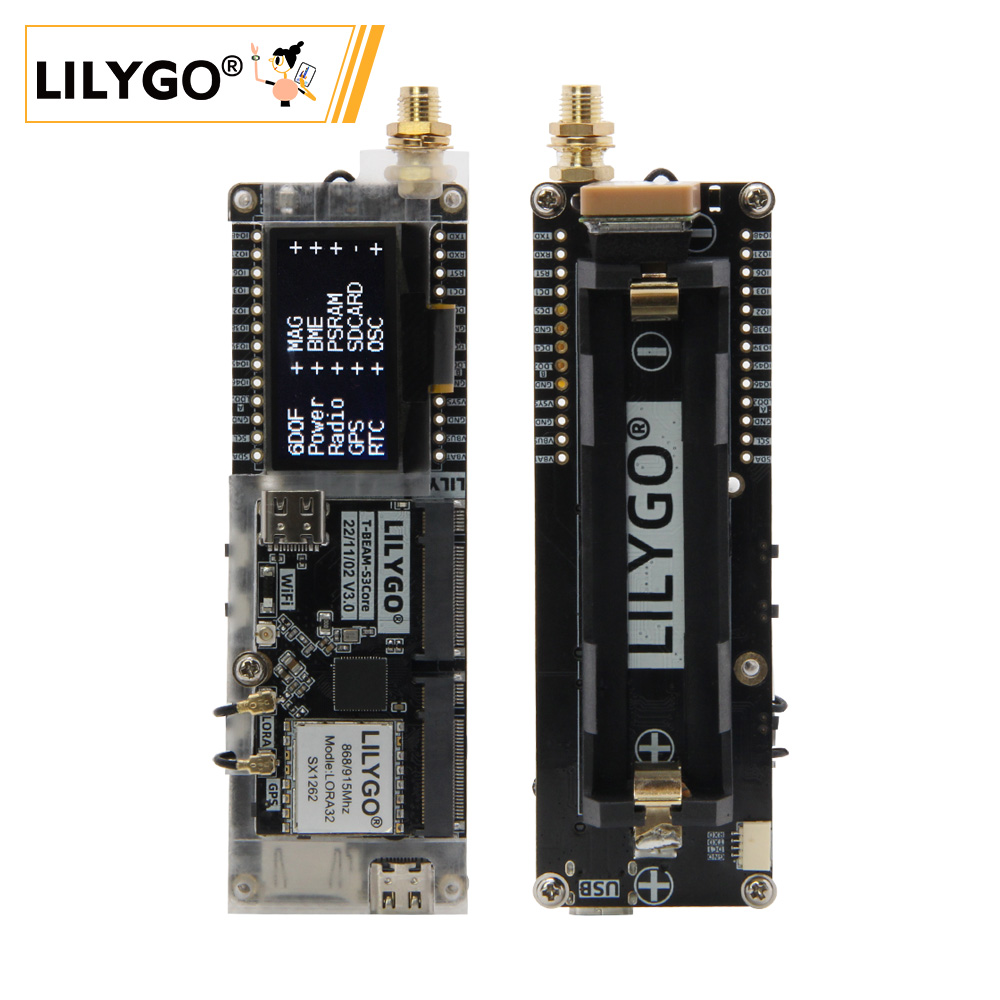

Physical Image

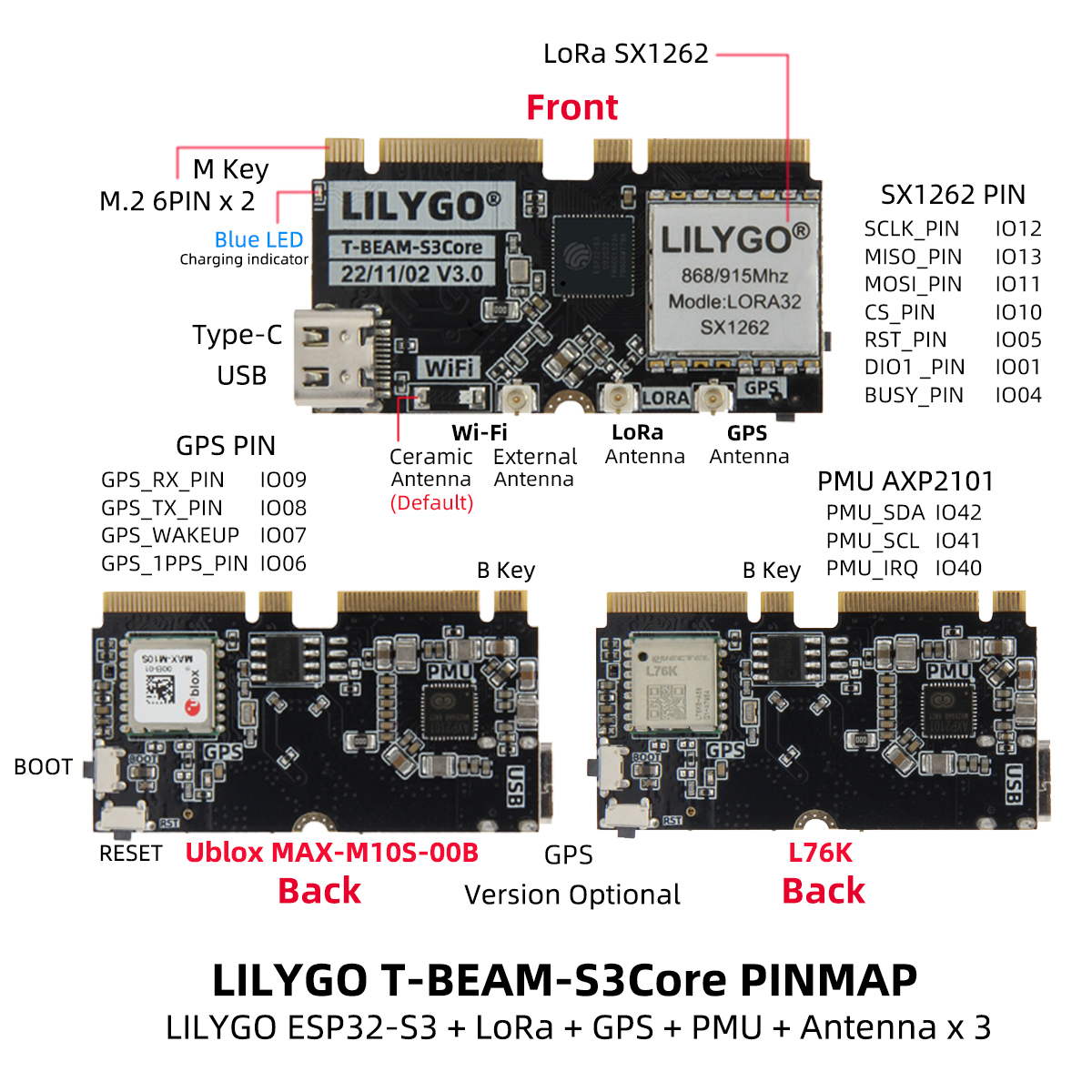

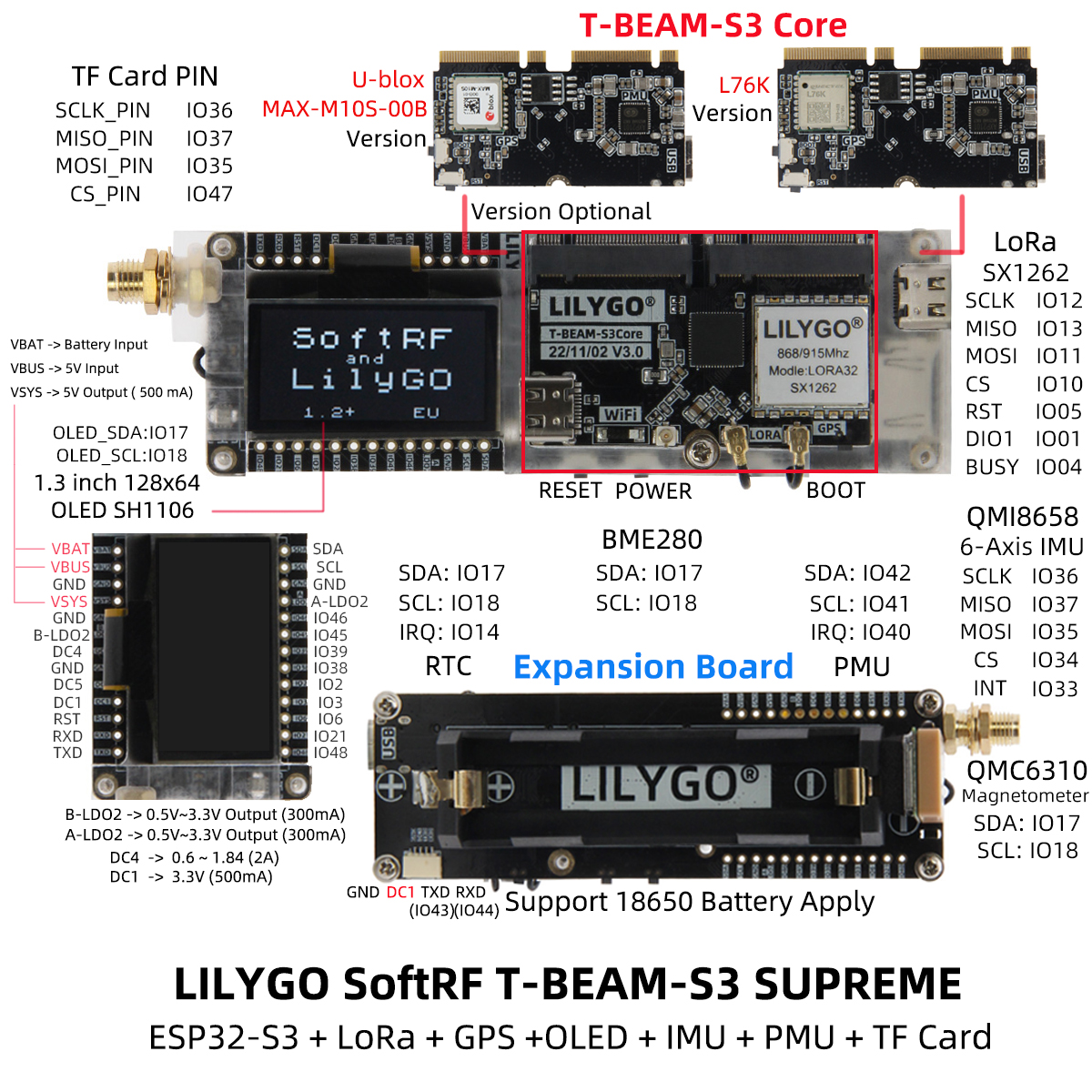

Pinout Diagram

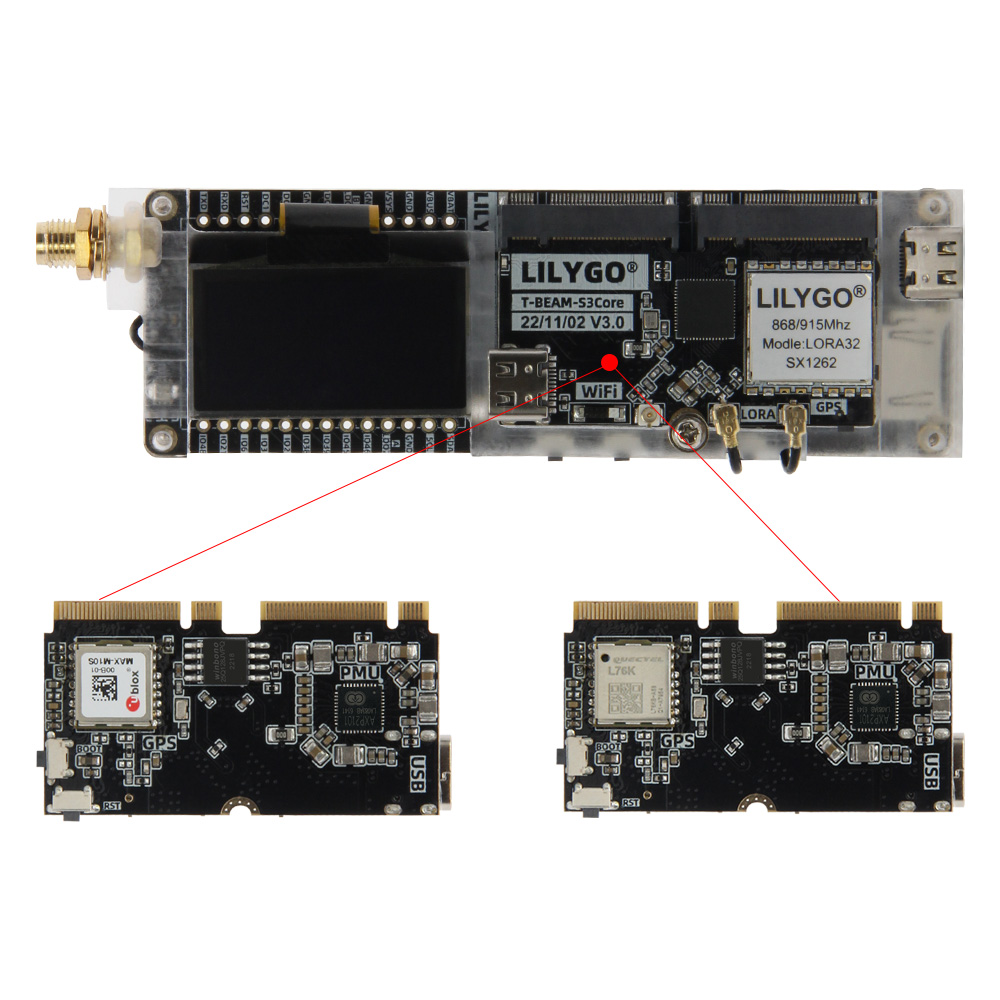

Core Board & Expansion Board

Modules

MCU

• Chip: ESP32-S3FN8
• PSRAM: 8MB
• FLASH: 8MB
• Other Notes: For more information, please visit Espressif Official ESP32-S3 Datasheet

Display

• Size: 1.3-inch OLED
• Resolution: 128x64px
• Display Type: OLED
• Driver Chip: SH1106
• Bus Communication Protocol: I2C

LoRa

• Chip: SX1262
• Frequency: 433/868/915/923MHz
• Other: Optional SX1280 (2.4GHz)

GPS

• Chip: MAX-M10S or L76K (selectable)
• Features: MAX-M10S supports NMEA 0183 protocol, L76K supports UBX protocol
• Baud Rate: 9600/19200/38400/57600/115200

Sensors

• Six-Axis Sensor: QMI8658
• Temperature/Humidity/Pressure Sensor: BME280
• Magnetometer: QMC6310

Power Management

• Chip: AXP2101
• Features: Supports 3.7V 18650 battery power supply

RTC

• Chip: PCF85063ATL
• Bus Communication Protocol: I2C

I2C Device Addresses

Electrical Parameters

Power Management

• T-Beam Supreme GPS backup power is provided by the 18650 battery. If you remove the 18650 battery, GPS hot start will not be possible. To use GPS hot start, please connect the 18650 battery.

Overview

Quick Start

Example Support

./examples/
├── ArduinoLoRa                              # Only support SX1276/SX1278 radio module
│   ├── LoRaReceiver
│   └── LoRaSender
├── Display                                  # Only supports TBeam TFT Shield
│   ├── Free_Font_Demo
│   ├── TBeam_TFT_Shield
│   ├── TFT_Char_times
│   └── UTFT_demo
├── GPS                                      # T-Beam GPS demo examples
│   ├── TinyGPS_Example
│   ├── TinyGPS_FullExample
│   ├── TinyGPS_KitchenSink
│   ├── UBlox_BasicNMEARead                  # Only support Ublox GNSS Module
│   ├── UBlox_NMEAParsing                    # Only support Ublox GNSS Module
│   ├── UBlox_OutputRate                     # Only support Ublox GNSS Module
│   └── UBlox_Recovery                       # Only support Ublox GNSS Module
├── LoRaWAN                                  # LoRaWAN examples
│   ├── LMIC_Library_OTTA
│   └── RadioLib_OTAA
├── OLED
│   ├── SH1106FontUsage
│   ├── SH1106GraphicsTest
│   ├── SH1106IconMenu
│   ├── SH1106PrintUTF8
│   ├── SSD1306SimpleDemo
│   └── SSD1306UiDemo
├── PMU                                      # T-Beam & T-Beam S3 PMU demo examples
├── RadioLibExamples                         # RadioLib examples,Support SX1276/78/62/80...
│   ├── Receive_Interrupt
│   └── Transmit_Interrupt
├── Sensor                                   # Sensor examples,only support t-beams3-supreme
│   ├── BME280_AdvancedsettingsExample
│   ├── BME280_TestExample
│   ├── BME280_UnifiedExample
│   ├── PCF8563_AlarmByUnits
│   ├── PCF8563_SimpleTime
│   ├── PCF8563_TimeLib
│   ├── PCF8563_TimeSynchronization
│   ├── QMC6310_CalibrateExample
│   ├── QMC6310_CompassExample
│   ├── QMC6310_GetDataExample
│   ├── QMC6310_GetPolarExample
│   ├── QMI8658_BlockExample
│   ├── QMI8658_GetDataExample
│   ├── QMI8658_InterruptBlockExample
│   ├── QMI8658_InterruptExample
│   ├── QMI8658_LockingMechanismExample
│   ├── QMI8658_MadgwickAHRS
│   ├── QMI8658_PedometerExample
│   ├── QMI8658_ReadFromFifoExample
│   └── QMI8658_WakeOnMotion
|── T3S3Factory                              # T3 S3 factory test examples
└── Factory                                  # T-Beam & T-Beam S3 and BPF factory test examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO extension in Visual Studio Code
3. After installation, restart Visual Studio Code
4. After restarting, select File -> Open Folder -> Choose the LilyGo-LoRa-Series directory
5. Wait for third-party dependency libraries to finish installing
6. Click to open the platformio.ini file, under the platformio section
7. Under default_envs, select the name of the board you want to use and uncomment it
8. Uncomment one line src_dir = xxxx, ensuring only one line is active. Please note the example comments, which explain which features are available and which are not.
9. Click the (✔) symbol at the bottom left to compile
10. Connect the board to your computer using a USB-C cable (Micro-USB interface is for module firmware upgrade)
11. Click (→) to upload the firmware
12. Click (plug symbol) to monitor the serial output
13. If unable to upload or the USB device keeps blinking, please check the FAQ below

Arduino

1. Install Arduino IDE

2. Install Arduino ESP32

3. Copy all folders from the lib directory to the Sketchbook location directory. How to find the library file location, please refer here

   • Windows: C:\Users\{Username}\Documents\Arduino
   • macOS: /Users/{Username}/Documents/Arduino
   • Linux: /home/{Username}/Arduino

4. Open the corresponding example

   • Open the downloaded LilyGo-LoRa-Series folder
   • Open the examples folder
   • Select the example file and open the file with ino extension

5. Select the corresponding board model in the Arduino IDE Tools menu, click the corresponding option in the list below to select

   | Name | Value |
   | ------------------------------------ | --------------------------------- |
   | Board | ESP32S3 Dev Module |
   | Port | Your port |
   | USB CDC On Boot | Enable |
   | CPU Frequency | 240MHZ(WiFi) |
   | Core Debug Level | None |
   | USB DFU On Boot | Disable |
   | Erase All Flash Before Sketch Upload | Disable |
   | Events Run On | Core1 |
   | Flash Mode | QIO 80MHZ |
   | Flash Size | 8MB(64Mb) |
   | Arduino Runs On | Core1 |
   | USB Firmware MSC On Boot | Disable |
   | Partition Scheme | 8M Flash(3M APP/1.5MB SPIFFS) |
   | PSRAM | QSPI PSRAM |
   | Upload Mode | UART0/Hardware CDC |
   | Upload Speed | 921600 |
   | USB Mode | CDC and JTAG |
   | Programmer | Esptool |

6. Please uncomment the corresponding model in the utilities.h file according to your board model, for example T_BEAM_S3_SUPREME_SX1262 or T_BEAM_S3_SUPREME_LR1121, otherwise compilation will report an error

7. Upload the program

Development Platforms

1. Arduino IDE
2. Platform IO
3. ESP-IDF
4. Micropython

Pin Overview

1. GNSS wake-up function is only available in the L76K version.

2. The radio has its own SPI bus, while other peripheral SPI devices share that SPI bus

Related Tests

Test data to be supplemented

FAQ

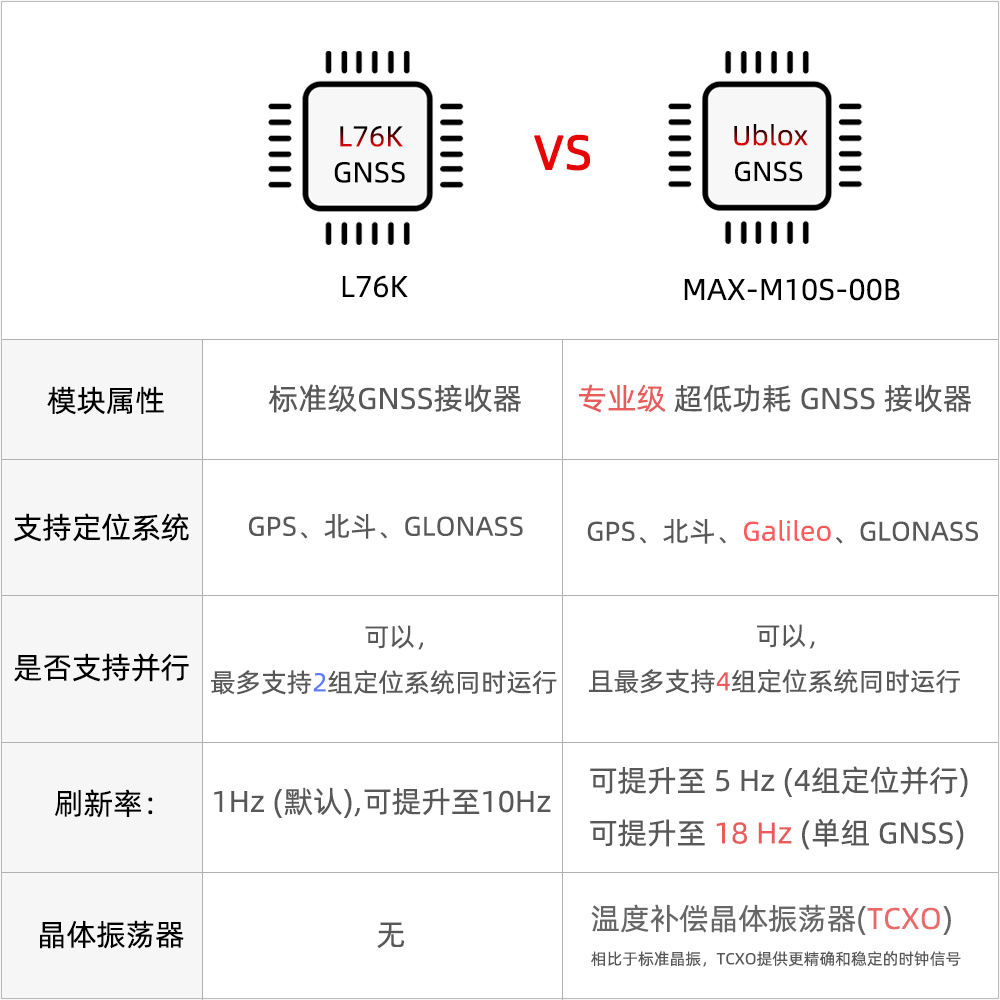

• Q. How to choose GPS module version?
  A. MAX-M10S has higher accuracy and lower power consumption, L76K has better cost advantage. Choose according to positioning accuracy and budget requirements.

• Q. What to do if LoRa communication distance is not ideal?
  A. Check antenna connection, ensure use in open environment, adjust LoRa parameters (spreading factor, bandwidth, etc.).

• Q. Short battery life?
  A. Enable deep sleep mode, turn off unnecessary sensors and peripherals, select low-power operation mode.

• Q. Device cannot flash program?
  A. Ensure USB CDC On Boot is enabled, hold BOOT button and click RESET to enter download mode.
