Introduction
T-Display AMOLED Plus is a high-integration development board based on the ESP32-S3 microcontroller, designed for multifunctionality and high performance. It features 16MB Flash and 8MB PSRAM, enabling the execution of complex applications. The board includes a 1.25-inch AMOLED display with touch functionality.
It comes with a built-in PMU (Power Management Unit) and RTC (Real-Time Clock), along with VBUS power management, optimizing it for low-power applications. For expansion, it offers STEMMA QT/Qwiic dual interfaces, supporting rapid sensor connections, SD card storage, and provides ample GPIO, ADC channels, and UART interfaces for peripheral integration.
Additionally, the board features BOOT mode switching and a reset circuit for easier development and debugging. This product is ideal for smart wearables, IoT terminals, and other scenarios requiring interactive displays and multi-sensor integration.
Appearance and function introduction

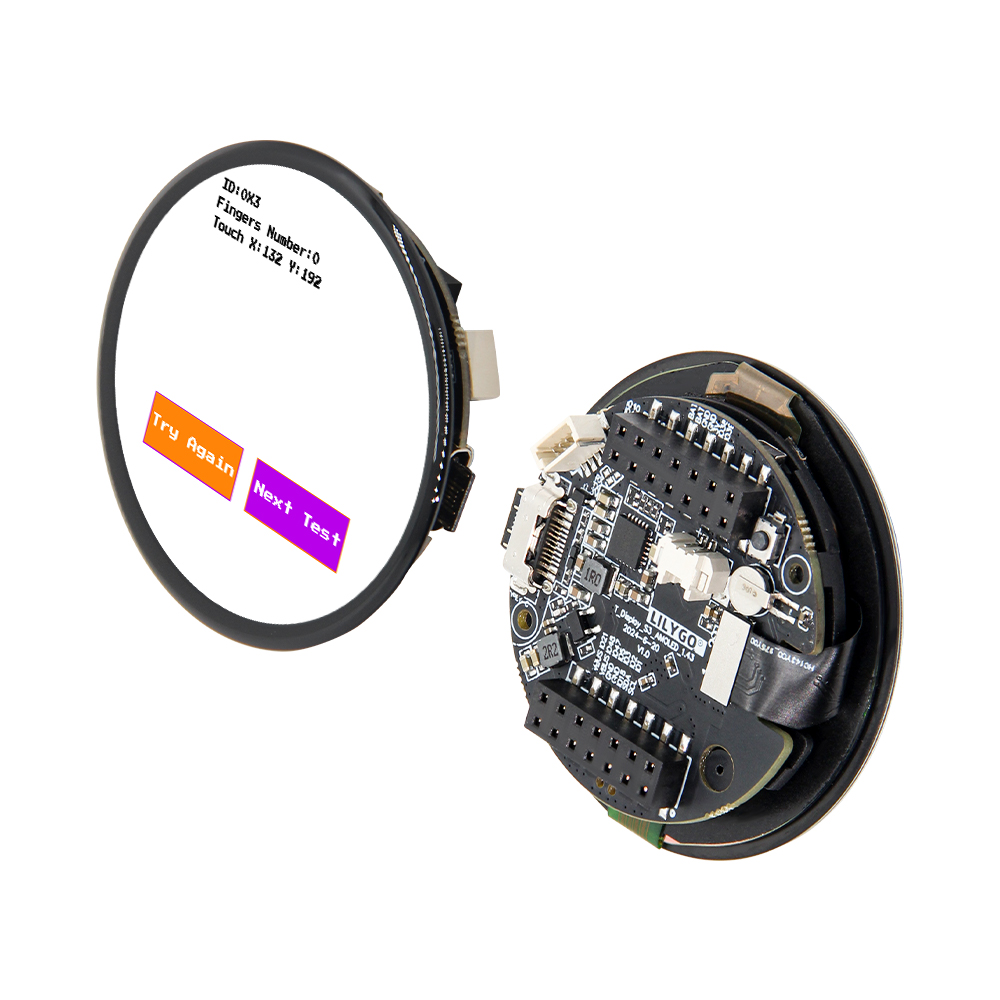

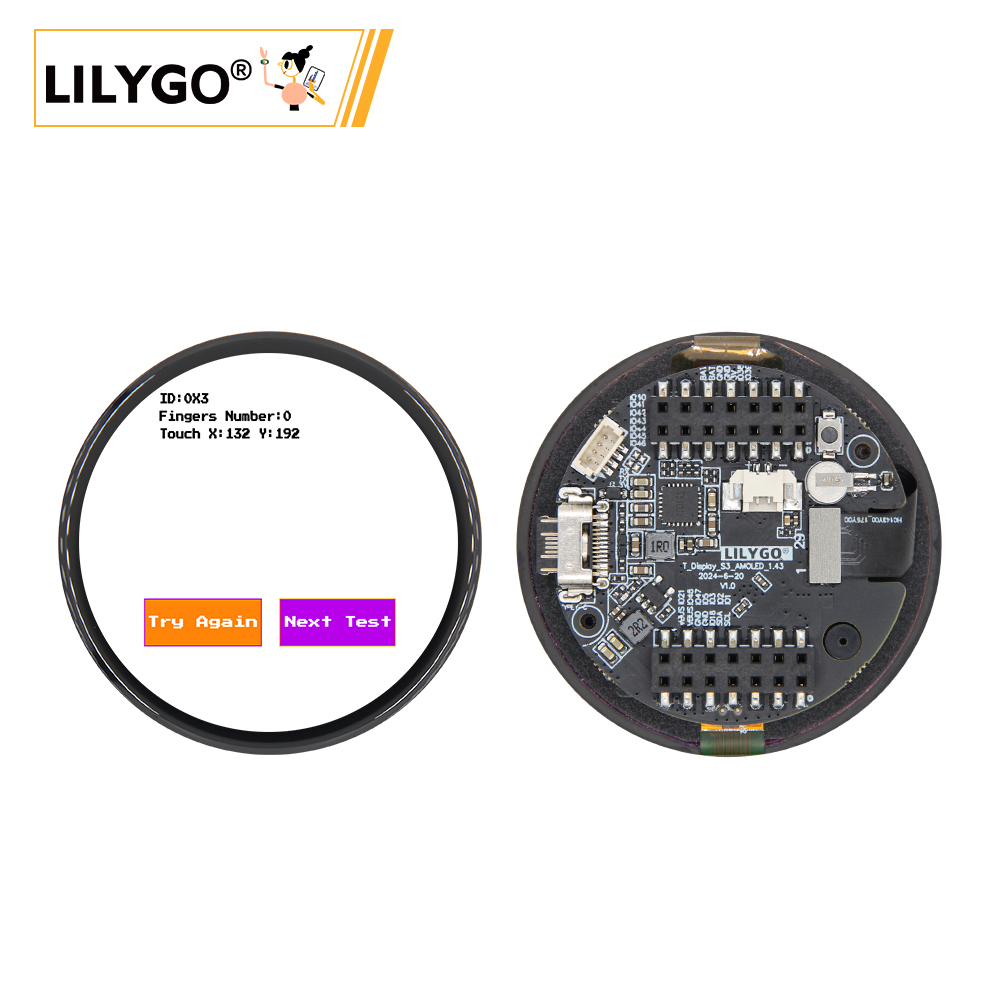

Appearance

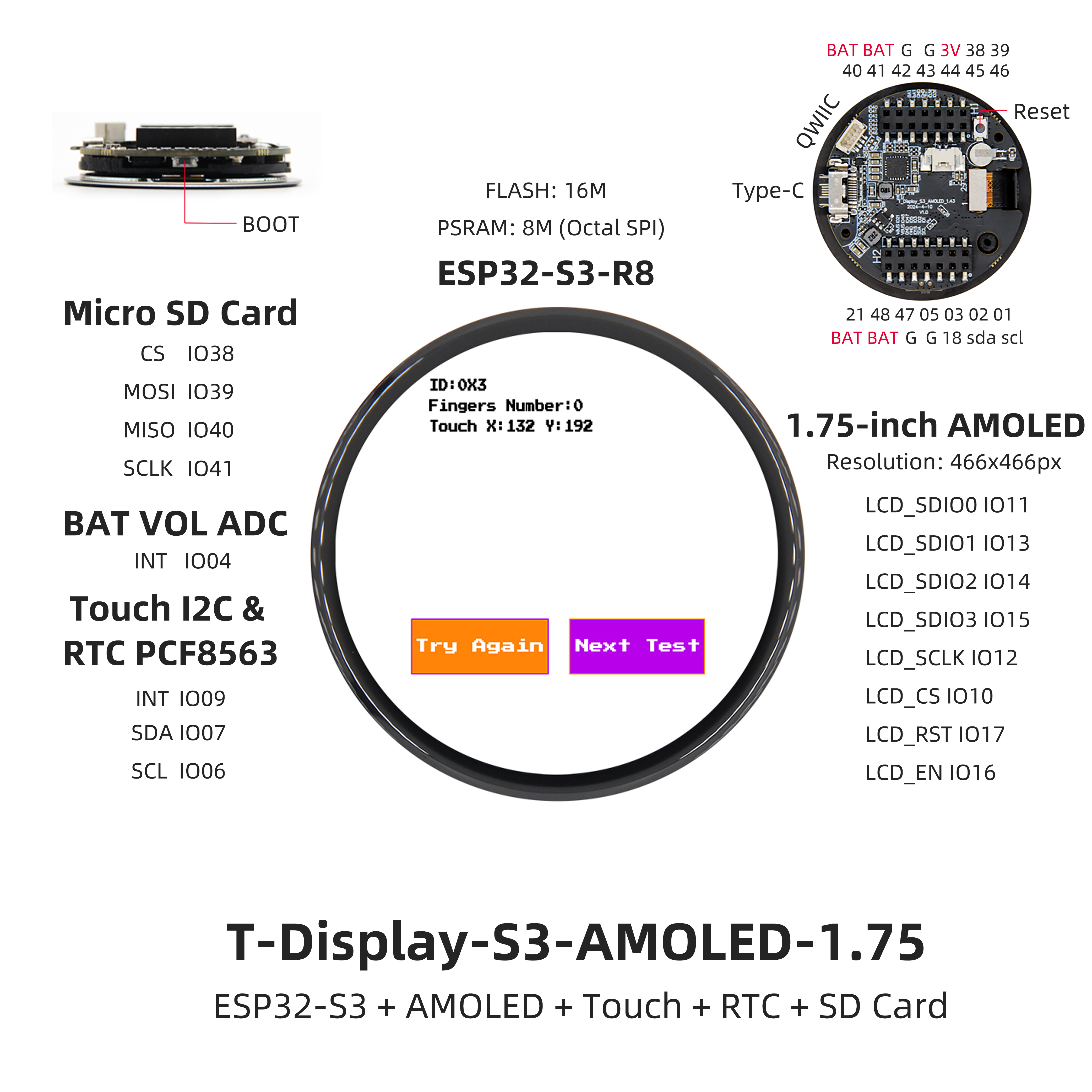

Pinmap

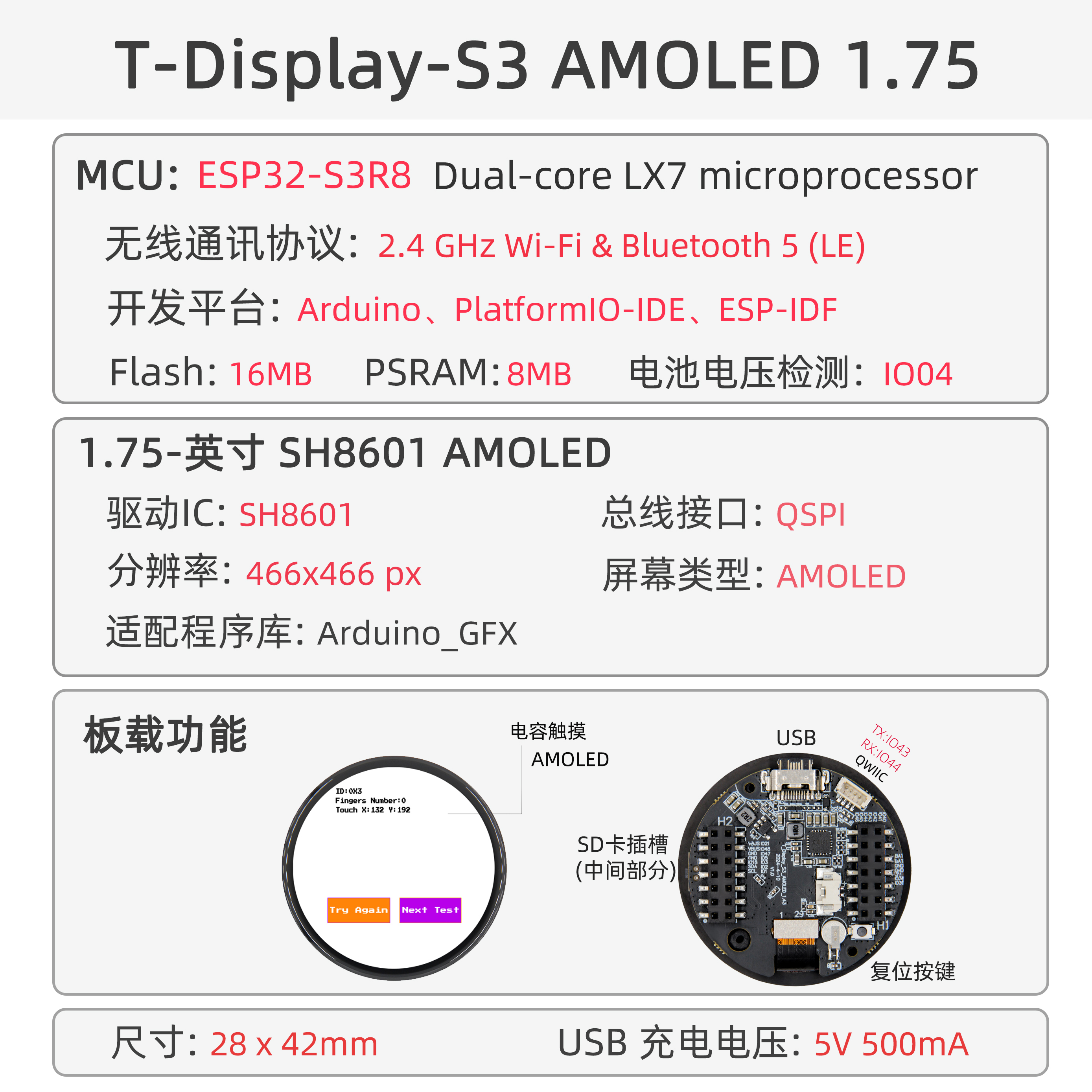

Module Information and Specifications
Description
| Component | Description |
|---|---|
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| FLASH | 16MB |
| PSRAM | 8MB |
| Screen | 1.75-inch SH8601 AMOLED |
| Touch | FT3168 touch capacitive screen |
| Bus | QSPI |
| LoRa | 1276:868,915Mhz |
| Storage | TF Card |
| Charging chip | SY6970 |
| RTC | PCF8563 |
| Wireless | 2.4GHz Wi-Fi & Bluetooth 5 (LE) |
| USB | 1 × USB Port and OTG(TYPE-C interface) |
| IO interface | 2 x 2.54mm pitch 2*7 extended IO interface |
| Extended Interface | 1 × QWIIC interface + JST-GH 1.25MM interface +1 x battery socket |
| Keys | 1 x RESET key + 1 x BOOT key |
| Dimensions | 45x45x11mm |
The output waveform of this chip will be very unstable when it is not powered by a 5V battery. It is necessary to connect a battery for use or use software to close the battery channel. In this case, the situation will be alleviated
Related Links
T-Display-S3-AMOLED-1.43/1.75 is a round display development board based on the ESP32-S3. It features a high-definition onboard AMOLED screen and supports external battery connection for independent power supply.
Github：T-Display-S3-AMOLED-1.43
Schematic Diagram
Dependency Libraries
Software Design
Arduino Set Parameters
| Setting | Value |
|---|---|
| Board | ESP32S3 Dev Module |
| Upload Speed | 921600 |
| USB Mode | Hardware CDC and JTAG |
| USB CDC On Boot | Enabled |
| USB Firmware MSC On Boot | Disabled |
| USB DFU On Boot | Disabled |
| CPU Frequency | 240MHz (WiFi) |
| Flash Mode | QIO 80MHz |
| Flash Size | 16MB (128Mb) |
| Core Debug Level | None |
| Partition Scheme | 16M Flash (3MB APP/9.9MB FATFS) |
| PSRAM | OPI PSRAM |
| Arduino Runs On | Core 1 |
| Events Run On | Core 1 |
