LILYGO T-PICO-2350

1. Introduction#

The T-Pico2350 is another version in the T-Pico series, designed and manufactured based on the Raspberry Pi RP2350 chip. It features an external expansion case design similar to the T-Display S3 Pro. This case is designed with multiple external expansion interfaces, supporting both pin header expansion and a 13-pin 0.3mm pitch FPC expansion interface. Additionally, the bottom is equipped with multiple M1.4 embedded brass nuts for secure expansion and mounting.

The device integrates RP2350 + ESP32-C6, a 2.33-inch capacitive touchscreen, TF card slot, HDMI interface, two QWIIC interfaces, and a PMU (Power Management Unit). It supports both battery power and USB power. The USB interface follows the T-Pico series design, allowing programming of both chips regardless of the insertion direction.

2. Appearance and function introduction#

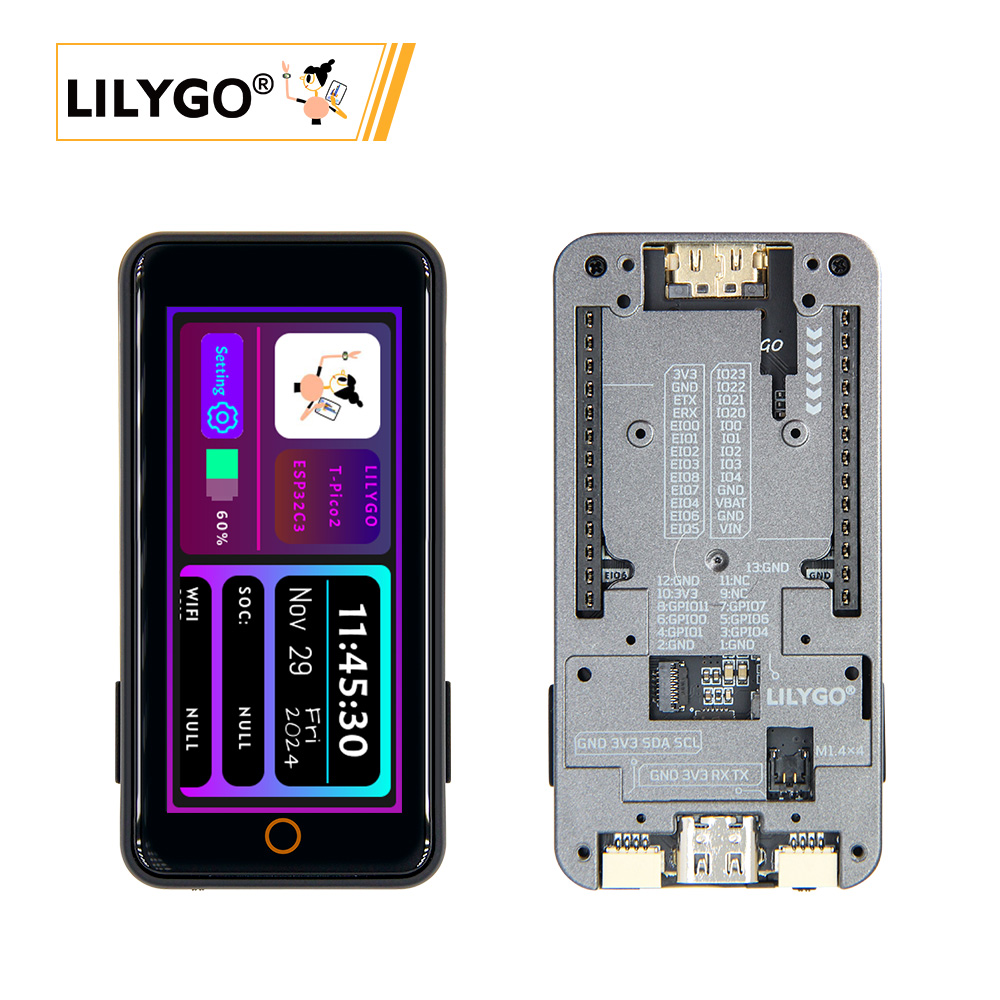

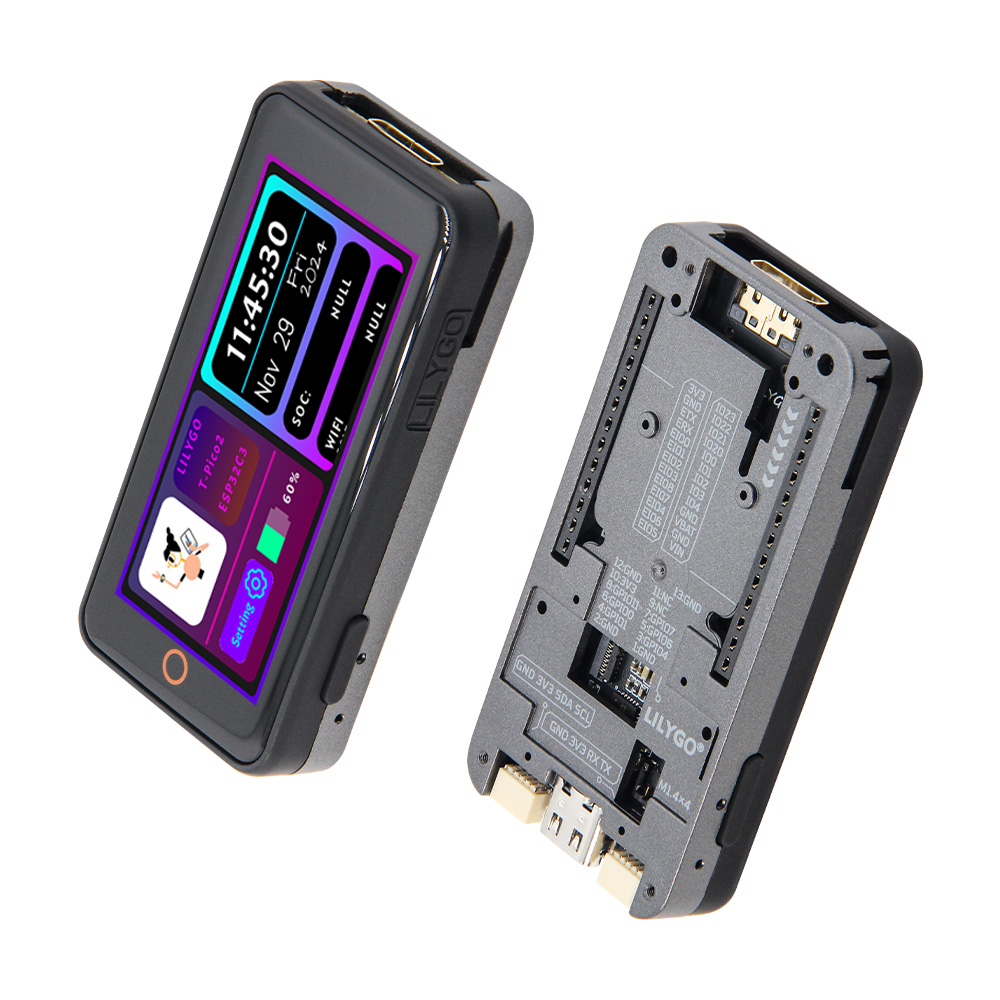

2.1. Appearance#

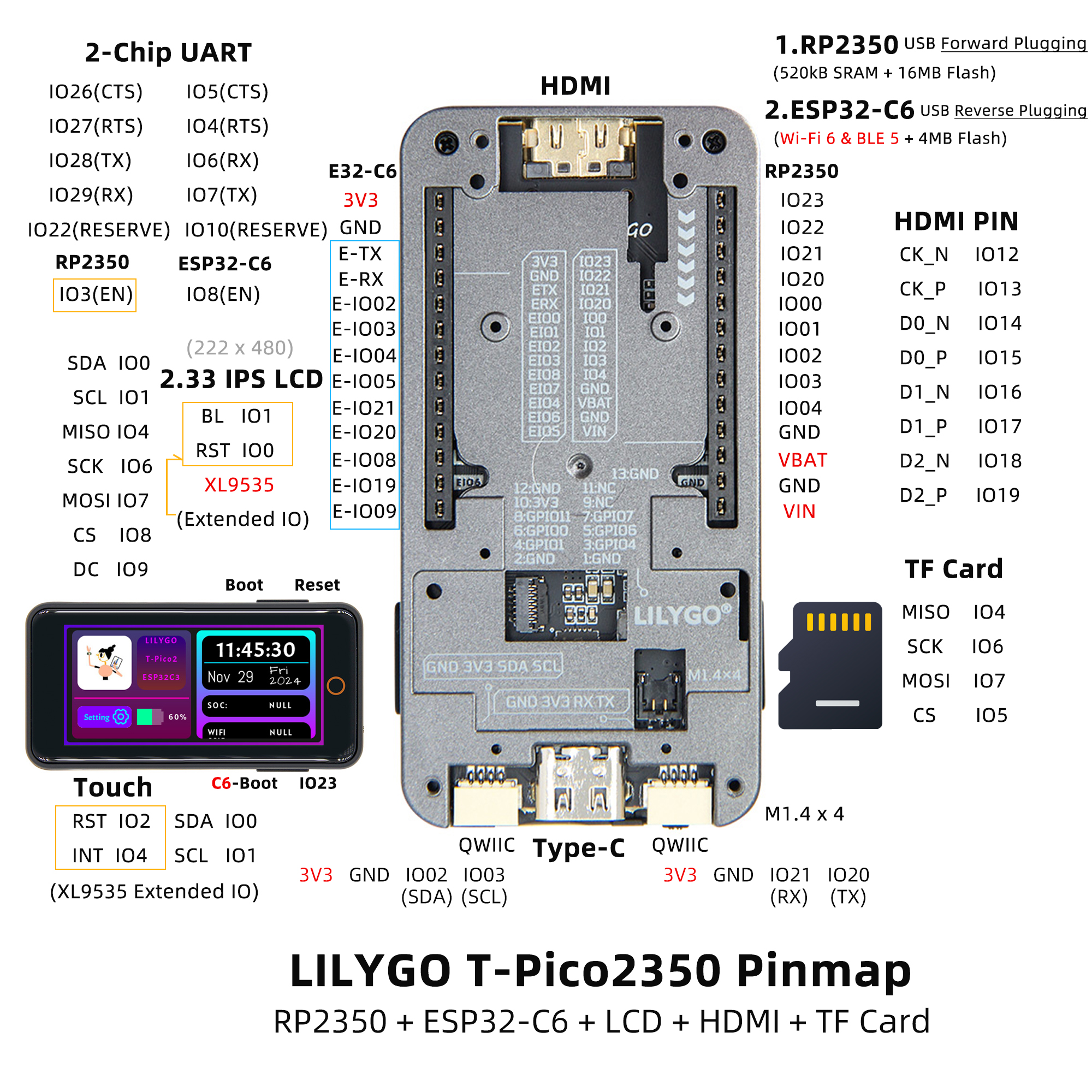

2.2. Pinmap#

3. Module Information and Specifications#

3.1. Development board parameter#

3.2. Related Links#

Github：T-PICO-2350

3.2.1. Schematic Diagram#

• Light Sensor datasheet
• RP2350
• ST7796S
• CST226SE

3.2.2. Dependency Libraries#

• lvgl 8.3.9
• AceButton
• TFT_eSPI
• Arduino_GFX
• WiFiEspAT
• XPowersLib
• SensorLib
• MPU9250
• Adafruit_BME280_Library
• TinyGPSPlus

4. Software Design#

4.1. Arduino Set Parameters#

4.2. Development Platform#

1. C
2. Arduino IDE
3. Platform IO

5. Product Technical Support#
