TranslateLILYGO T5 E-Paper
Introduction
The LILYGO T5-4.7-S3 Capacitive Touch Screen Development Board is an e-paper (E-Ink) solution based on the ESP32-S3-WROOM-1-N16R8 chip, which integrates 8MB of PSRAM and 16MB of Flash. This product features a 4.7-inch capacitive touch screen (supporting two-point touch), a PCF8563 real-time clock (RTC) chip, a USB Type-C interface, and a Li-Po battery connector (JST-PH 2.0mm), supporting battery voltage monitoring (Bat ADC).
It offers a 40-PIN GPIO expansion interface compatible with Raspberry Pi, includes an onboard TF card slot, and features dedicated screen control signals (STV/LE) and an SPI interface (CS/SCLK/MOSI/MISO). The board is designed with a 2.5D curved edge and is tailored for low-power e-paper applications with touch interaction, such as information displays, smart home terminals, and portable devices.
Appearance and function introduction

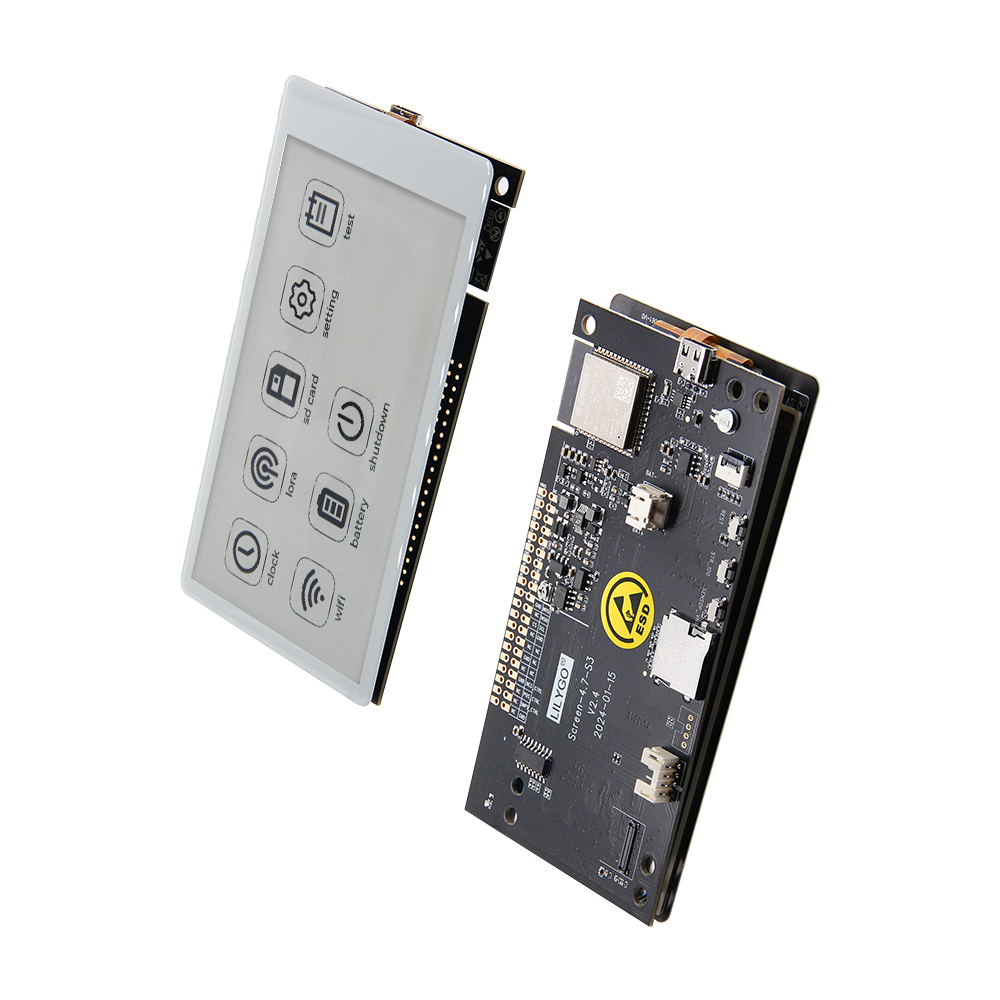

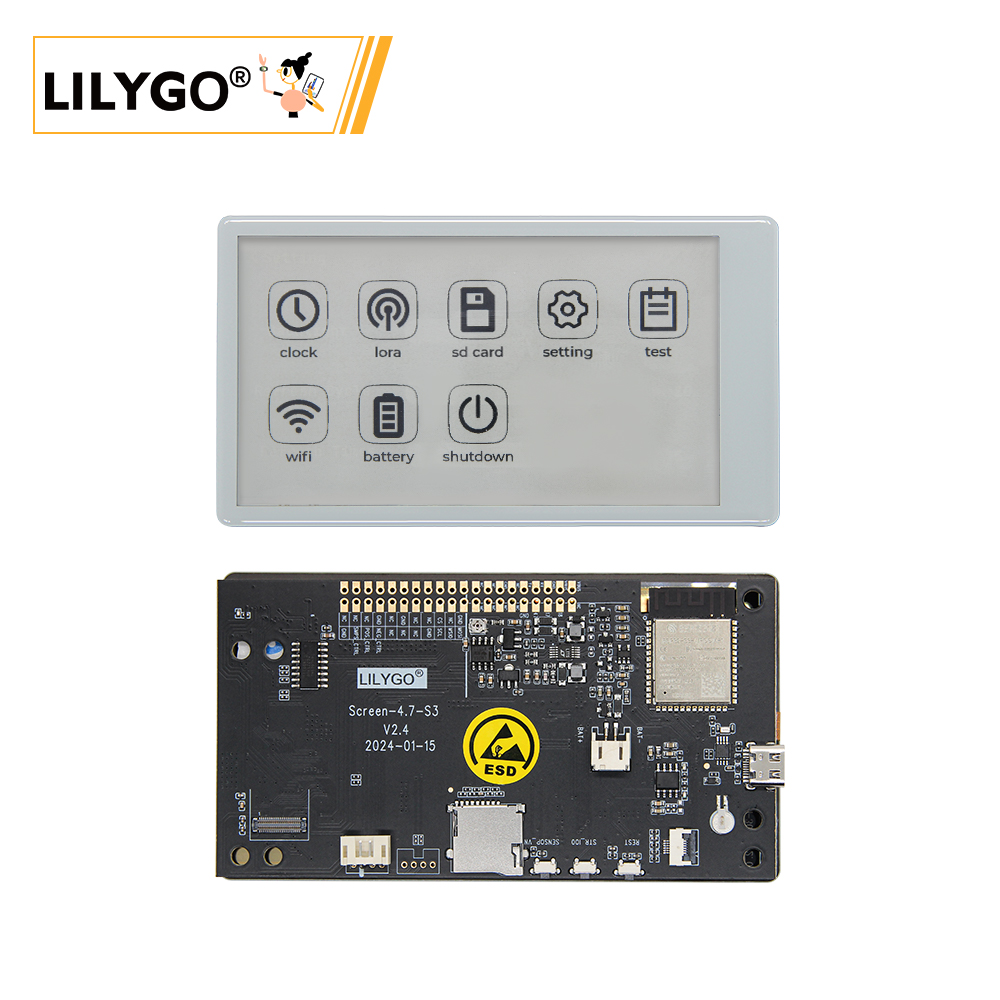

Appearance

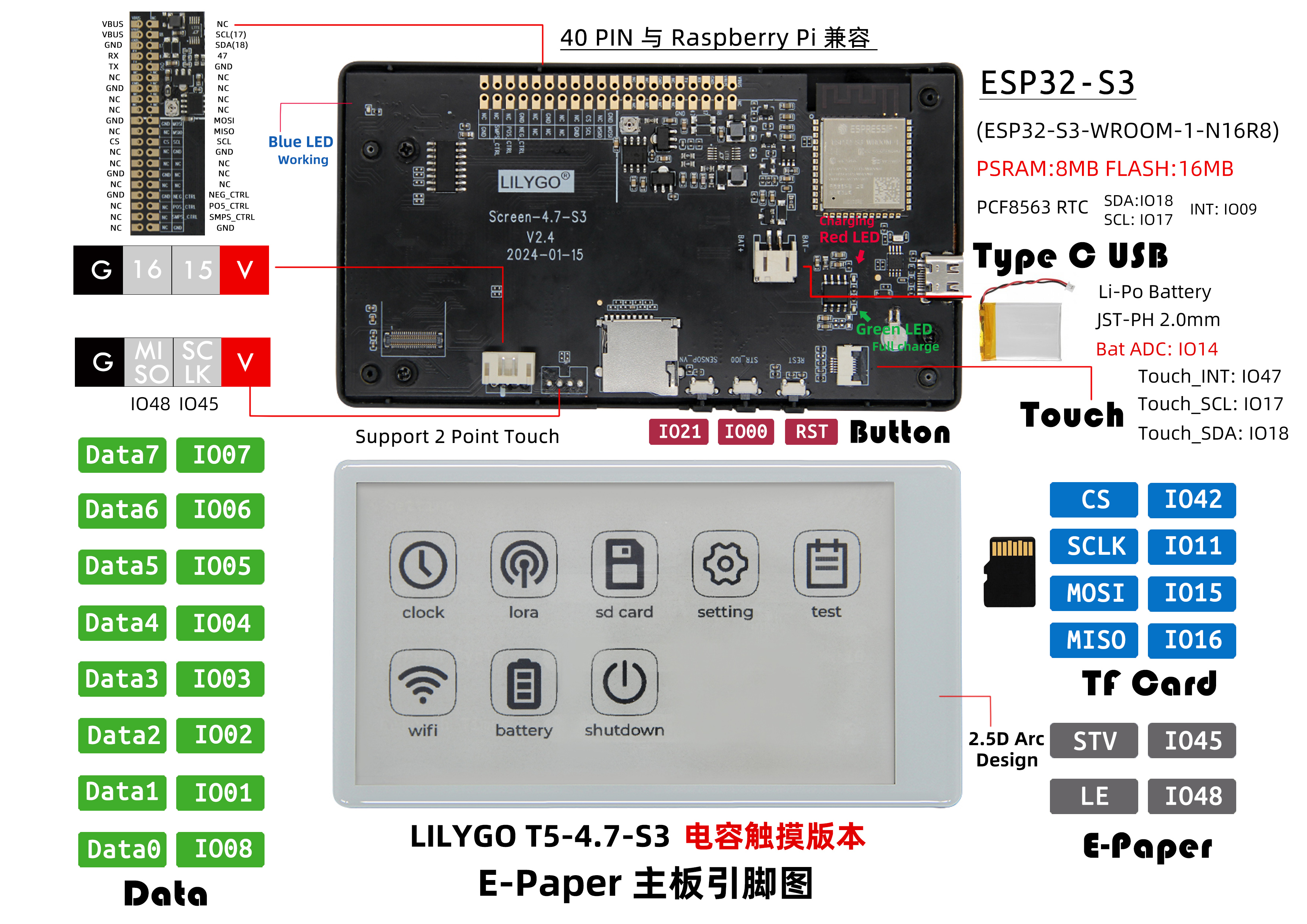

Pinmap
Module Information and Specifications
Description
| Component | Description |
|---|---|
| MCU | ESP32-S3-WROOM-1-N16R8 |
| Flash | 16M |
| PSRAM | 8M |
| Wireless | 2.4GHz Wi-Fi& BLE 5 |
| Storage | TF Card |
| Screen | EDO47TC1 4.7-inch low-power E-ink screen (540 x 960) |
| Touch | GT911 |
| Clock | PCF8563 |
| Keys | 1 x RST key + 1 x BOOT key + 1 x IO48 key + 1 × PWR key |
| IO Extension | 2 x 20-pin extension interface (Compatible with Raspberry PI) |
| Expansion Interface | 1 x JST-PH 2.0mm battery interface + 2 x 4pin Molex connectors |
| Hole position | 6 x 3.8mm positioning hole |
| Dimensions | 121x67x12mm |
Related Links
Github：T5 E-paper
Schematic Diagram
Dependency Libraries
Software Design
Arduino Set Parameters
| Arduino IDE Setting | Value |
|---|---|
| Board | ESP32S3 Dev Module |
| Port | Your port |
| USB CDC On Boot | Enable |
| CPU Frequency | 240MHZ(WiFi) |
| Core Debug Level | None |
| USB DFU On Boot | Disable |
| Erase All Flash Before Sketch Upload | Disable |
| Events Run On | Core1 |
| Flash Mode | QIO 80MHZ |
| Flash Size | 16MB(128Mb) |
| Arduino Runs On | Core1 |
| USB Firmware MSC On Boot | Disable |
| Partition Scheme | 16M Flash(3M APP/9.9MB FATFS) |
| PSRAM | OPI PSRAM |
| Upload Mode | UART0/Hardware CDC |
| Upload Speed | 921600 |
| USB Mode | CDC and JTAG |
| Programmer | Esptool |
