LILYGO T-QT C6

T-QT C6

Introduction

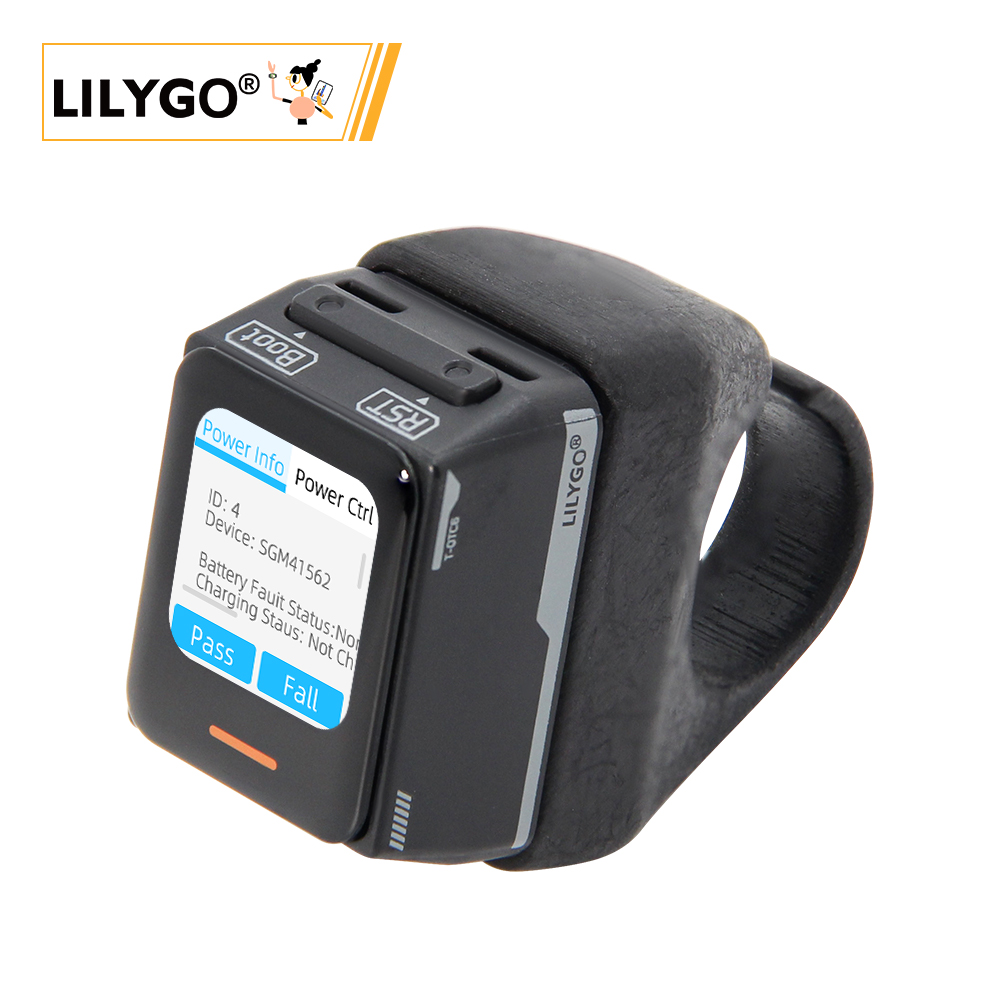

LILYGO T-QT C6 is a smart wearable development kit based on the ESP32-C6-MINI-1U microcontroller. It integrates a 0.85-inch TFT LCD display with a resolution of 128×128, a 6-axis sensor (LSM6DSL, supporting accelerometer and gyroscope functions), and a SGM41562 power management unit (PMU).

  • Key features include:

  • Built-in battery power supply,

  • Touch interaction,

  • Breathing light status indicator,

  • 4MB Flash storage,

  • QWIIC 4-PIN connector and I2C/SPI pins for hardware expansion.

It supports Wi-Fi and Bluetooth wireless communication and is suitable for applications such as motion tracking, embedded development, or portable interactive devices.

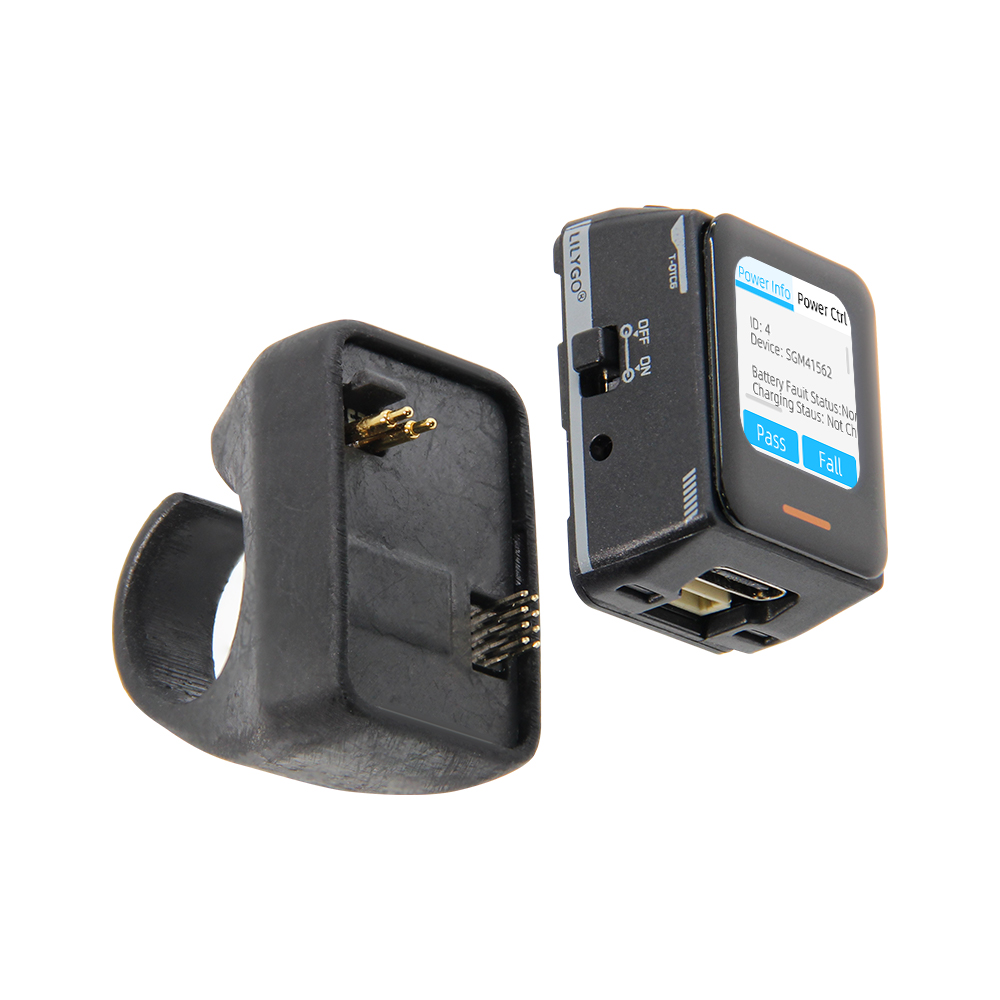

The product may adopt a ring-style extension dock design (T-QT-C6 Extended Finger Ring Dock), balancing low power consumption with high integration, making it ideal for prototyping and functional validation in fields like IoT and wearable devices.

Appearance and function introduction

Appearance

summary

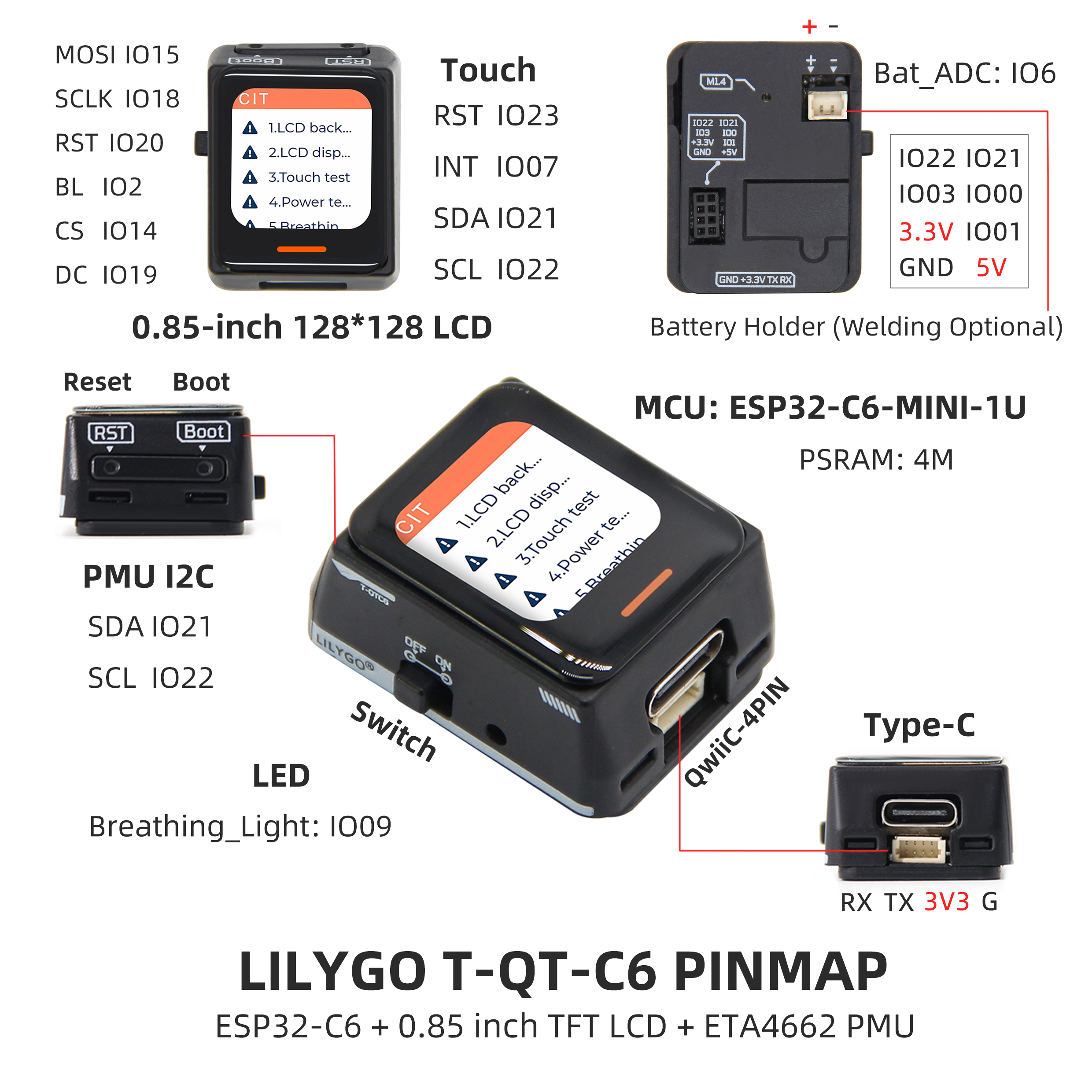

Pinmap

summary

Module Information and Specifications

Description

summary
Component Description
MCU ESP32-S3R8 Dual-core LX7 microprocessor
PSRAM 4M
Screen 0.85-inch GC9107 TFT
Touch CST816T touch capacitive screen
Bus QSPI
LoRa 1276:868,915Mhz
Battery backsheet Inertial sensor LSM6DSLTR
Power Management SGM41562
Wireless 2.4GHz Wi-Fi & Bluetooth 5 (LE)
USB 1 × USB Port and OTG(TYPE-C interface)
IO interface 2 x 2.54mm pitch 2*7 extended IO interface
Extended Interfaces 1 × QWIIC 4-pin interface +1 x 2 x 4-pin extended battery interface + power interface
Keys 1 x RESET key + 1 x BOOT key
Dimensions 33x24x44.5mm

Github：T-QT-C6

Schematic Diagram

Dependency Libraries

Software Design

Arduino Set Parameters

Setting Value
Board ESP32C6 Dev Module
Upload Speed 921600
CPU Frequency 160MHz
Flash Mode QIO
Flash Size 4MB (32Mb)
Core Debug Level None
Partition Scheme Huge APP (3MB No OTA/1MB SPIFFS)

Development Platform

  1. Micropython
  2. Arduino IDE
  3. Platform IO
