LILYGO T-PCIE

Introduction

Chip Model

SIM7600E

The SIM7600E-PCIE is an LTE Cat 1 module that supports multiple wireless communication modes, including LTE-TDD / LTE-FDD / HSPA+ / GSM / GPRS / EDGE.
It offers a maximum downlink rate of 10 Mbps and a maximum uplink rate of 5 Mbps.

The T-SIM7600E-PCIE adopts the mini PCIe form factor and consists of a SIM7600 series module and a mini PCIe adapter board for easy customer integration.

This module integrates multiple high-precision satellite positioning (GNSS) systems, has built-in network protocols, and supports mainstream operating systems such as Windows, Linux, and Android with available USB drivers. Its AT command set is compatible with the SIM7500/SIM7600-H series modules.

In addition, the SIM7600-PCIE series integrates major industrial standard interfaces and provides strong scalability. Rich interfaces are available, including UART, USB, and GPIO.
It is suitable for IoT applications such as telematics, surveillance equipment, customer premises equipment (CPE), industrial routers, and remote diagnostics.

Datasheet: SIM7600E

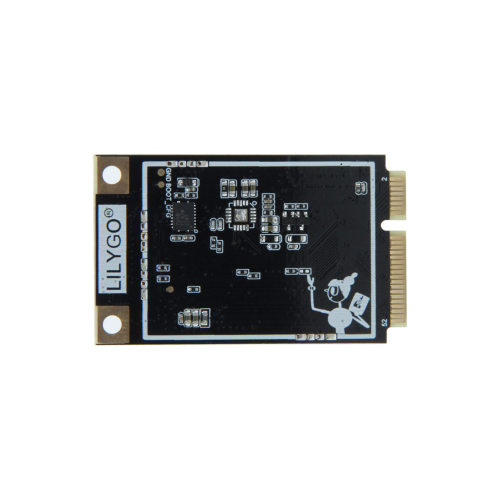

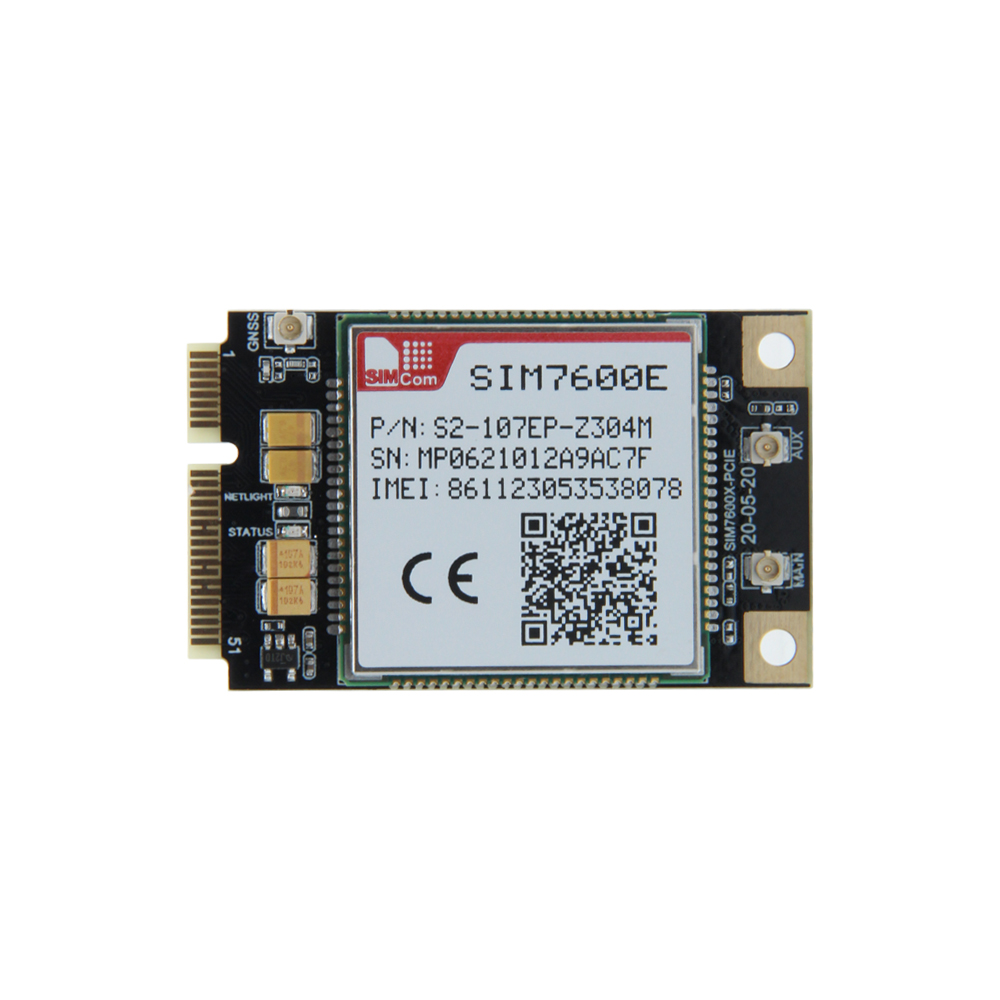

Appearance

summary summary

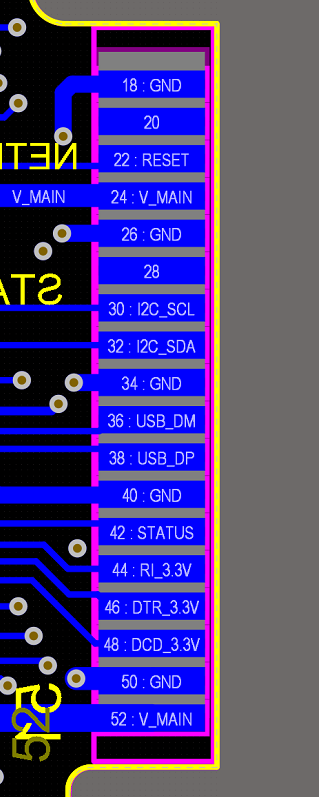

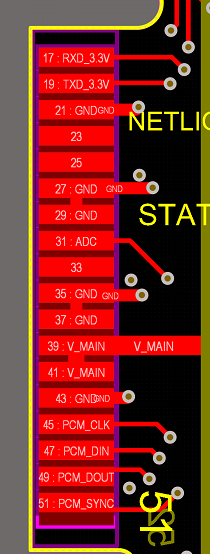

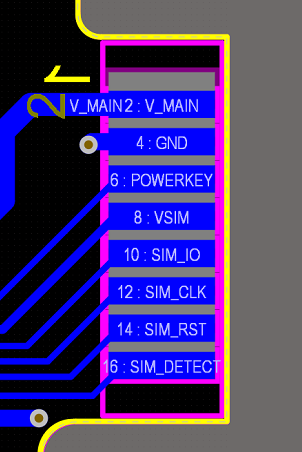

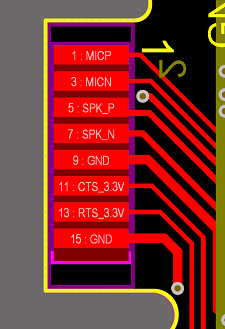

Pin Definition

summary summary
summary summary

Pinout Diagram

Module Information

Overview

Github:T-PCIE

Schematics

T-PCIE
