Overview

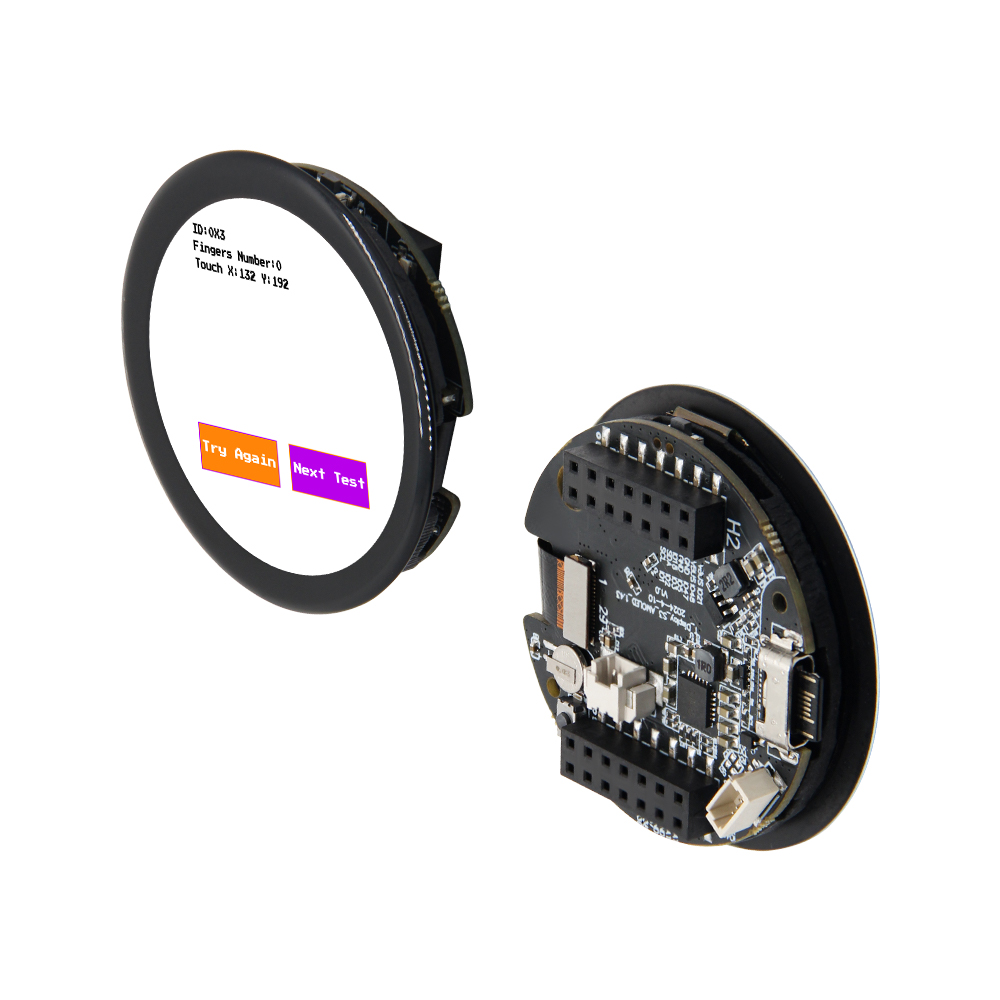

T-Display S3 AMOLED 1.43 is a smart display development board based on ESP32-S3R8 (16 MB Flash, 8 MB PSRAM). Equipped with a 1.43-inch SH8601 AMOLED circular display (466 × 466, QSPI), FT3168 capacitive touch, SY6970 PMU, PCF8563 RTC, TF card slot, and STEMMA QT/QWIIC interface. Supports battery voltage detection (ADC GPIO4) and 5 V/500 mA USB charging. Suitable for smart wearables, embedded GUI, and IoT terminals in a compact 45 × 45 × 11 mm form factor.

The output waveform of the SY6970 PMU will be very unstable when powered by 5V without a battery. Connect a battery for use, or use software to disable the battery channel.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
T-Display-S3-AMOLED-1.43-1.75	✓	✓	Display, touch, RTC, sleep, SD examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Open the T-Display-S3-AMOLED-1.43-1.75 project folder
4. Open platformio.ini and select your example
5. Click ✓ to compile, connect via USB-C, click → to upload

Arduino

1. Install Arduino IDE
2. Install Arduino ESP32
3. In Tools → Board, configure:

Arduino IDE Setting	Value
Board	ESP32S3 Dev Module
Upload Speed	921600
USB Mode	Hardware CDC and JTAG
USB CDC On Boot	Enabled
USB Firmware MSC On Boot	Disabled
USB DFU On Boot	Disabled
CPU Frequency	240 MHz (WiFi)
Flash Mode	QIO 80 MHz
Flash Size	16MB (128Mb)
Core Debug Level	None
Partition Scheme	16M Flash (3MB APP/9.9MB FATFS)
PSRAM	OPI PSRAM
Arduino Runs On	Core 1
Events Run On	Core 1

4. Click Upload

Development Platforms

1. ESP-IDF
2. Arduino IDE
3. PlatformIO

Video

Key Features

• ESP32-S3R8 dual-core LX7 @ 240 MHz, Wi-Fi + Bluetooth 5.0
• 1.43-inch SH8601 AMOLED (466 × 466), QSPI bus
• FT3168 capacitive touch
• SY6970 PMU, PCF8563 RTC
• TF card slot, STEMMA QT/QWIIC, JST-GH battery connector
• 45 × 45 × 11 mm

Product Parameters

Feature	Specification
MCU	ESP32-S3R8 @ Dual-core LX7, 240 MHz
Flash	16 MB
PSRAM	8 MB (Octal SPI)
Wi-Fi	2.4 GHz 802.11 b/g/n
Bluetooth	Bluetooth 5.0 LE
Display	1.43-inch SH8601 AMOLED, 466 × 466, QSPI
Touch	FT3168 capacitive
PMU	SY6970
RTC	PCF8563
Storage	TF card slot
USB	1 × Type-C (USB + OTG)
Expansion	STEMMA QT/QWIIC + JST-GH battery connector
Dimensions	45 × 45 × 11 mm

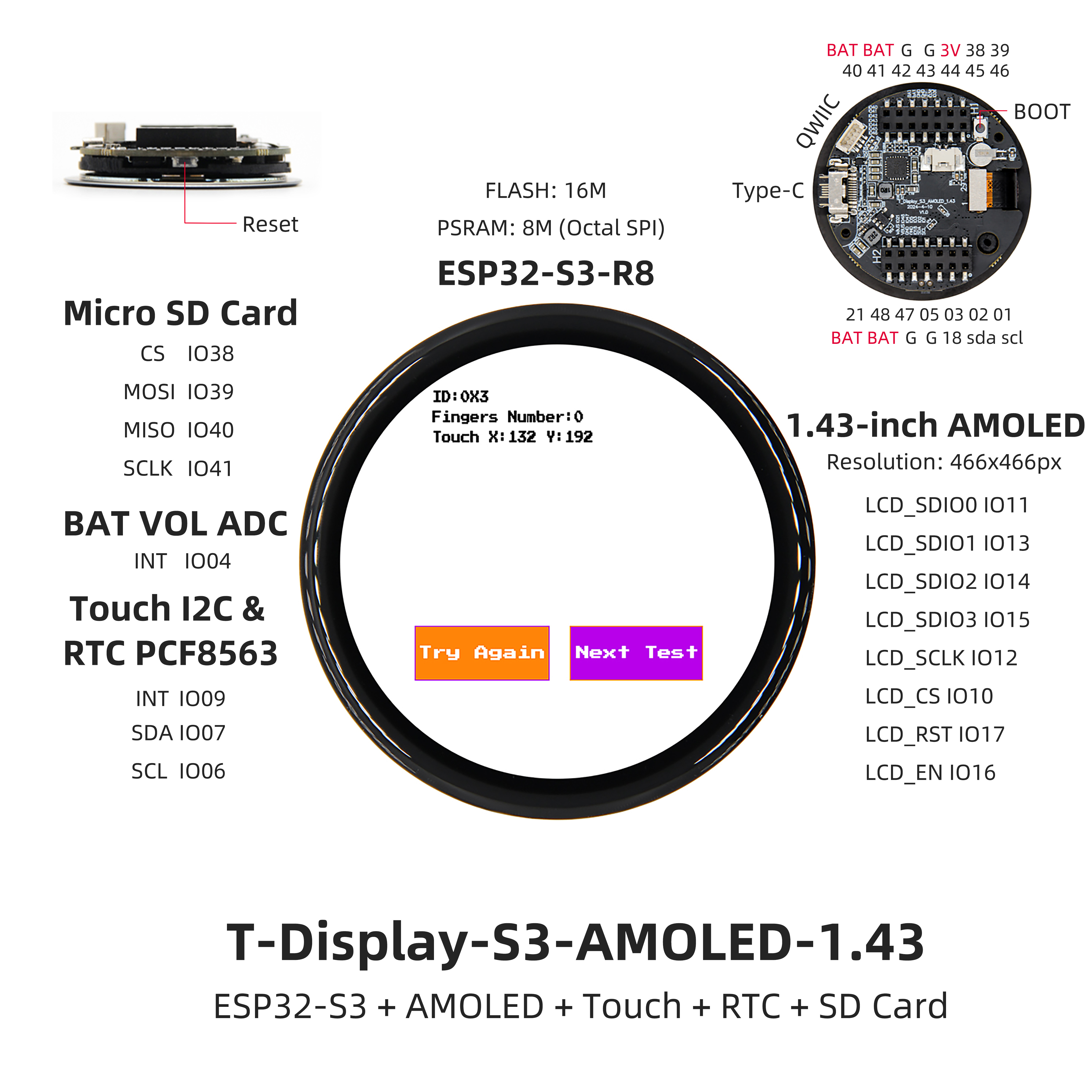

Pin Diagram

Pin Mapping

AMOLED (QSPI)	IO11 (SDIO0), IO13 (SDIO1), IO14 (SDIO2), IO15 (SDIO3), IO12 (SCLK), IO10 (CS), IO17 (RST), IO16 (EN)
Touch (FT3168)	IO7 (SDA), IO6 (SCL), IO9 (INT)
SY6970	IO7 (SDA), IO6 (SCL)
Battery ADC	IO4
SD Card	IO4 (CS), IO39 (MOSI), IO40 (MISO), IO41 (SCLK)

Dimension Diagram

Schematic

• T-Display-S3-AMOLED-1.43-1.75 V1.0 Schematic

Datasheet

• SH8601
• PCF8563
• AN_SY6970

Software Development

• T-Display-S3-AMOLED-1.43-1.75 GitHub Repository

Dependent Libraries

• Arduino_GFX-1.3.7
• Arduino_DriveBus-1.1.16
• JPEGDEC-1.2.8
• lvgl-8.3.5
• SensorLib

FAQ

• Q. Why does my board keep failing to upload programs? A. Hold down the BOOT-0 button and try uploading again.

• Q. Why is there no serial data output from the Uart interface? A. The project defaults to USB CDC as Uart0. Set USB CDC On Boot to Disabled in Arduino Tools, or change -DARDUINO_USB_CDC_ON_BOOT=true to false in platformio.ini.

Version History

Version	Release Date	Update Description
T-Display-S3-AMOLED-1.43 V1.0	2024-05-20	Initial version
T-Display-S3-AMOLED-1.43-1.75 V1.0	2024-11-25	Added FPC cable, H0175Y003AM screen support
T-Display-S3-AMOLED-1.43-1.75 V1.0	2025-01-13	Added DO0143FMST10 screen support
