T-PCIE SIM7600E

Overview

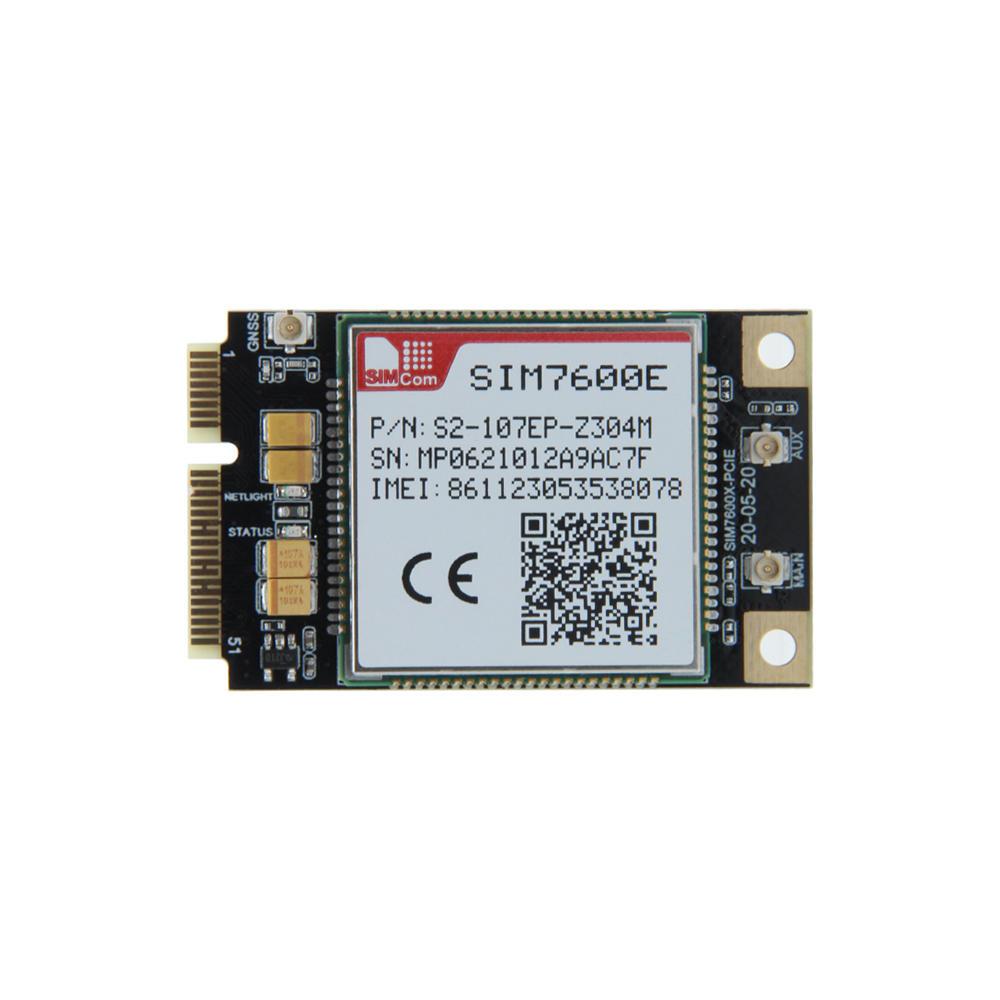

T-PCIE SIM7600E is a mini PCIe form-factor LTE modem module based on the SIM7600E chip, designed to be inserted into the T-PCIE mainboard mPCIe slot. Supports LTE-FDD/LTE-TDD, HSPA+, GSM/GPRS/EDGE multi-mode wireless communication with maximum downlink 10 Mbps / uplink 5 Mbps. Integrates multi-constellation GNSS and built-in TCP/IP/HTTP/HTTPS/FTP protocol stack. AT commands are compatible with the SIM7600 series.

For mainboard hardware details (DIP switch, pin map, electrical parameters, buttons, LED, antenna), see the T-PCIE mainboard page.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
LilyGo-Modem-Series	✓		AT commands, MQTT, HTTP examples

Development Platforms

1. PlatformIO
2. Arduino IDE
3. ESP-IDF

Related Videos

Key Features

• SIM7600E LTE Cat-4, mini PCIe form factor
• LTE-FDD B1/B3/B5/B8/B20, GSM 900/1800 MHz
• Max 10 Mbps downlink / 5 Mbps uplink
• Integrated multi-constellation GNSS
• Built-in TCP/IP, HTTP/HTTPS, FTP/FTPS protocol stack
• USB 2.0 interface, Windows/Linux/Android drivers
• AT commands compatible with SIM7600 series

Modem Specifications

Feature	Specification
Module	SIM7600E
Form Factor	mini PCIe
Standard	LTE Cat-4
LTE-FDD	B1/B3/B5/B8/B20
GSM	900 / 1800 MHz
Max Downlink	10 Mbps
Max Uplink	5 Mbps
GNSS	Multi-constellation
Interface	UART, USB 2.0, GPIO
AT Commands	Compatible with SIM7600 series
SIM Card	Nano SIM (via mainboard slot)

Regional coverage: SIM7600E covers Europe, Middle East, Africa, South Korea, and Thailand. For other regions, see the modem differences table below.

Modem Differences

Model	GPS	Phone Call	SMS	Frequency Band
SIM7600E	✅	✅	✅	LTE-FDD: B1/B3/B5/B8/B20; GSM: 900/1800 MHz

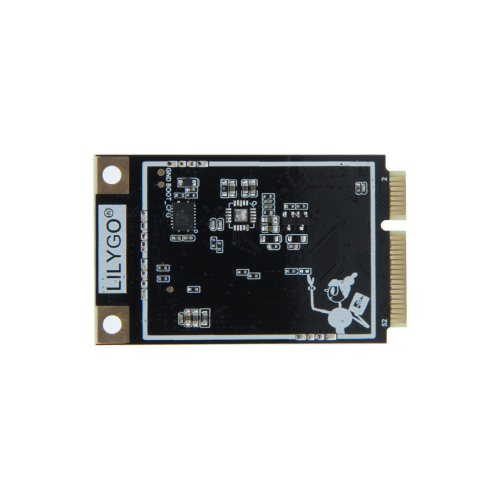

Voice call requires an onboard audio decoder chip. Send AT+SIMCOMATI to check your module's hardware version. The SIM7600 series only has voice call functionality if a chip is present in the audio decoder area (red-marked zone on the PCB). If that area is empty, voice calls are not supported.

Pin Diagram

Dimension Diagram

Schematic

• T-PCIE V1.2 Schematic

Datasheet

• SIM7600E Datasheet
• SIMCOM SIM7600X Official Page

Software Development

• LilyGo-Modem-Series GitHub Repository

Dependent Libraries

• TinyGSM
• XPowersLib

FAQ

• Q. Which regions does SIM7600E cover? A. Europe, Middle East, Africa, South Korea, and Thailand (LTE-FDD B1/B3/B5/B8/B20, GSM 900/1800 MHz).

• Q. Does SIM7600E support voice calls? A. Only if the board has an onboard audio decoder chip. Send AT+SIMCOMATI to check. If the audio area is empty, voice calls are not possible.

• Q. Which GPS antenna is compatible? A. Use an active GPS antenna with 3.3 V supply (IPEX Gen-1 connector). Most active GPS antennas supporting 2.5–5.5 V are compatible.

• Q. For mainboard-related issues (upload failure, SIM not detected, power switching). A. See the T-PCIE mainboard FAQ.

Version History

Version	Date	Notes
T-PCIE V1.2	—	Current version
