T-BHI260AP
Overview

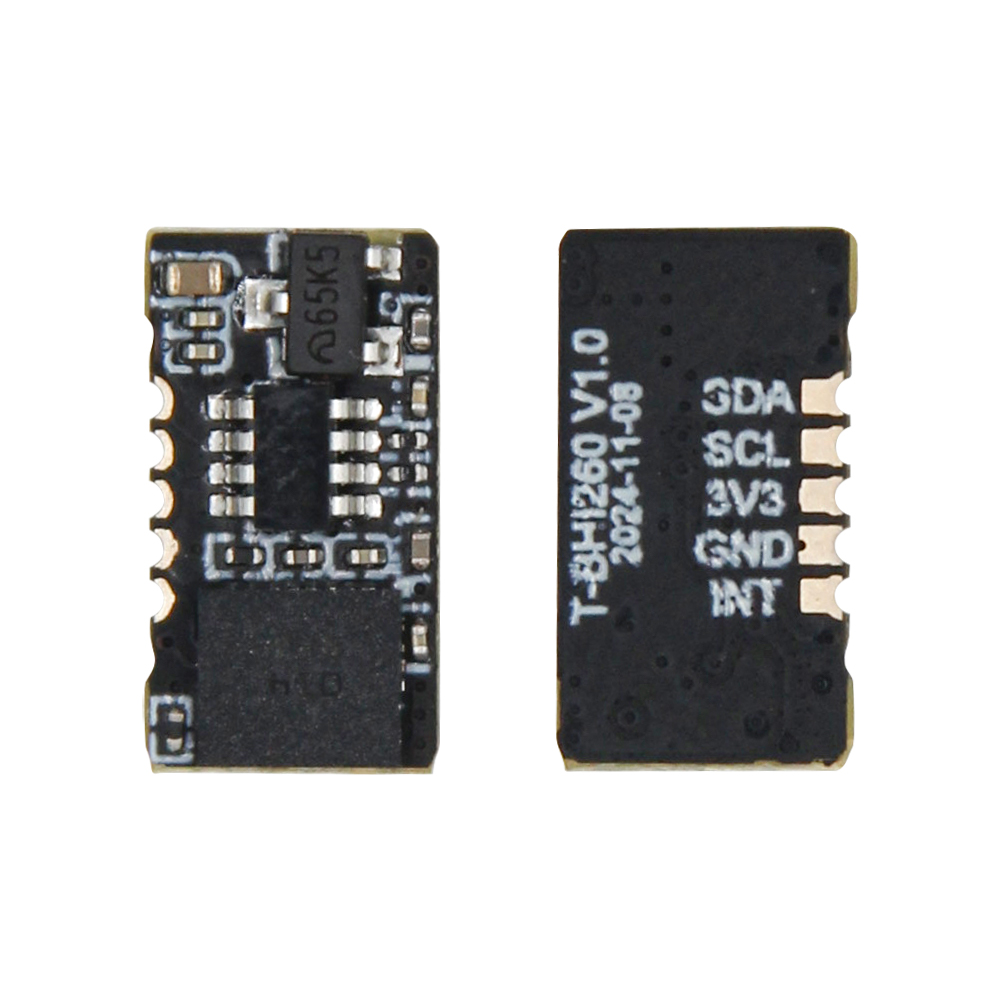

The T-BHI260AP AI Smart Sensor is a multifunctional motion monitoring expansion module integrating a self-learning AI algorithm with a 6-axis IMU (accelerometer + gyroscope). It supports real-time pedestrian tracking, personalized fitness data analysis (movement accuracy, calorie consumption), and specialized swimming metrics (stroke efficiency, stroke frequency). Features a waterproof design and low-power consumption for sustained outdoor and underwater use. Compatible with mainboards including T-Deck, T-Display-S3, T-Display-S3-Pro, and T-Echo.
Quick Start
Example Support
| Example | PlatformIO/Arduino | ESP-IDF | Description |
|---|
PlatformIO
Arduino
Development Platforms
Video
Key Features
- BHI260AP self-learning AI algorithm with 6-axis IMU (accelerometer + gyroscope)
- Real-time pedestrian tracking and fitness data analysis
- Swimming metrics: stroke efficiency and stroke frequency
- Waterproof design, low power consumption
- Compatible with T-Deck, T-Display-S3, T-Display-S3-Pro, T-Echo
Product Parameters
| Feature | Specification |
|---|---|
| Sensor | BHI260AP 6-axis IMU |
| Interface | I2C / SPI |

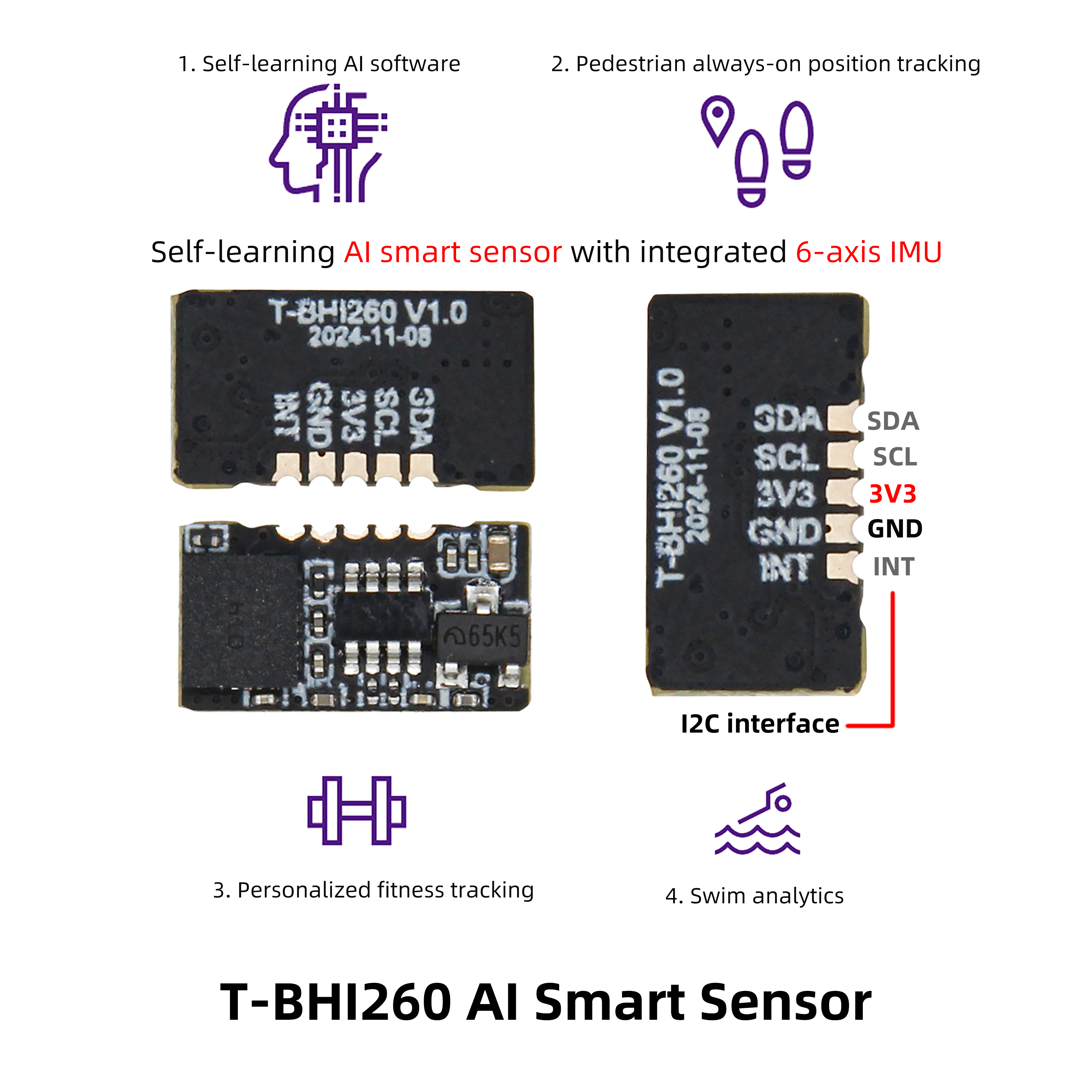

Pin Diagram
Dimension Diagram
Schematic
Datasheet
Software Development
Compatible Products
| Product | Link |
|---|---|
| T-Deck | Store |
| T-Display-S3 | Store |
| T-Display-S3-Pro | Store |
| T-Echo | Store |
FAQ
Version History
| Version | Release Date | Update Description |
|---|---|---|
| T-BHI260AP V1.0 | — | Initial version |
