Overview
LILYGO T-Echo-Plus is an upgraded version of the T-Echo, designed with Meshtastic mesh networking in mind. It is powered by the Nordic nRF52840 MCU with Bluetooth 5.0 and NFC, paired with a Semtech SX1262 LoRa transceiver (433/868/915 MHz). The board features a 1.54-inch e-ink display, L76K GNSS receiver, BHI260AP intelligent sensor hub (IMU), a buzzer, and a vibration motor — making it ideal for off-grid communication, asset tracking, and portable Meshtastic nodes.
Quick Start
Example Support
| Example | PlatformIO/Arduino | ESP-IDF | Description |
|---|---|---|---|
| LilyGo-T-Echo | ✓ | LoRa, e-ink, GPS, Meshtastic examples |
Arduino
- Install Arduino IDE
- Add the Adafruit nRF52 board package URL in Preferences
- Install Adafruit nRF52 boards from Board Manager
- In Tools → Board, select Adafruit Feather nRF52840 Express or the T-Echo specific board
- Upload
Meshtastic
Flash Meshtastic firmware directly from flasher.meshtastic.org or use the Meshtastic Android/iOS app.
Key Features
- Nordic nRF52840 @ 64 MHz, Bluetooth 5.0 + NFC
- Semtech SX1262 LoRa (433/868/915 MHz), up to +22 dBm, sensitivity −139 dBm
- 1.54-inch e-ink display (ultra-low power, sunlight-readable)
- L76K GNSS (GPS/BeiDou/GLONASS/QZSS)
- BHI260AP intelligent sensor hub (6-axis IMU)
- Buzzer + vibration motor (upgraded vs. standard T-Echo)
- 2 MB Flash, 256 KB RAM (nRF52840)
- Li-Po battery support with charging
- Meshtastic compatible

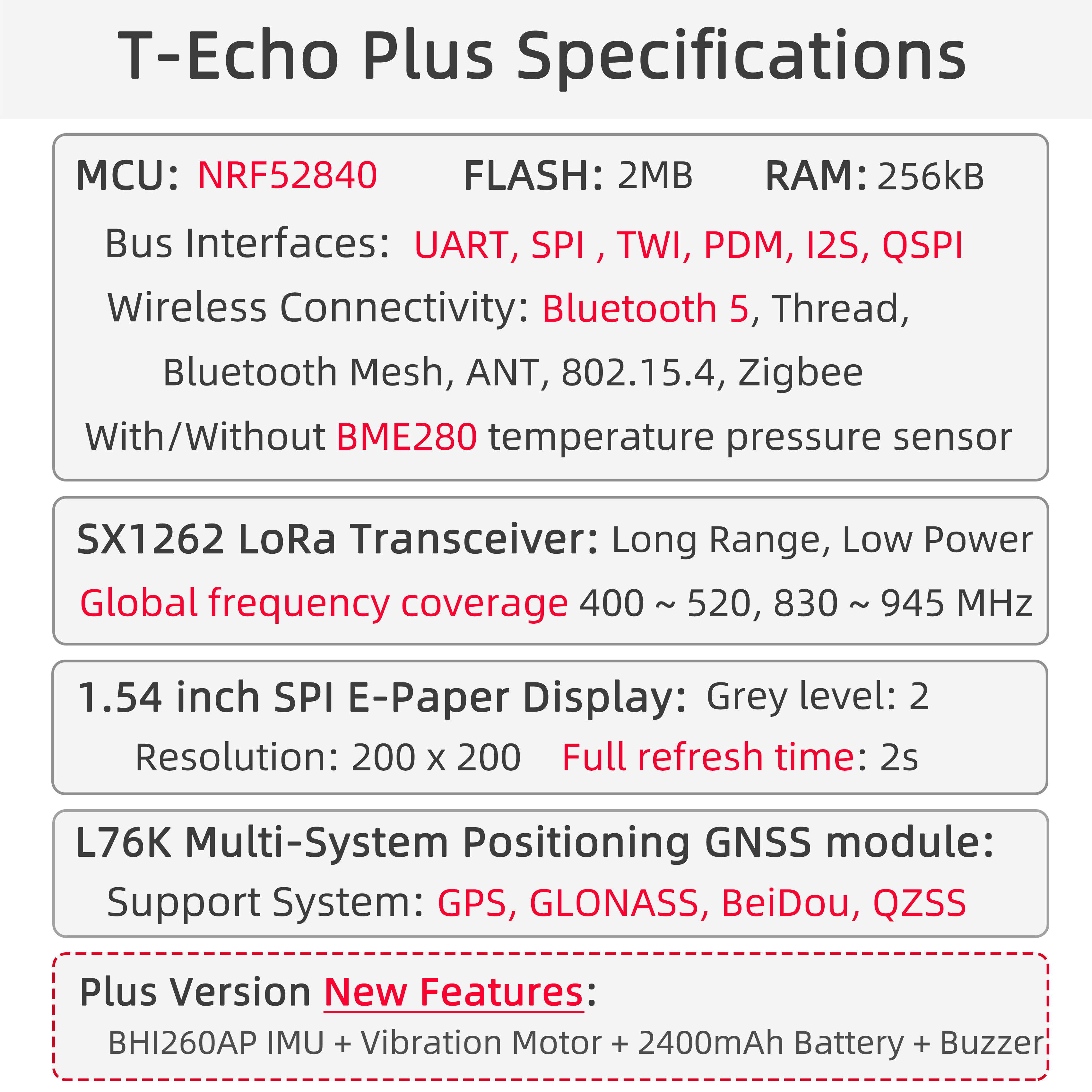

Specifications
| Parameter | Value |
|---|---|
| MCU | Nordic nRF52840, 64 MHz, Bluetooth 5.0 + NFC |
| Flash | 2 MB (MCU internal) |
| RAM | 256 KB |
| Wireless (LoRa) | SX1262, 433/868/915 MHz, +22 dBm |
| Wireless (BLE) | Bluetooth 5.0 |
| Display | 1.54-inch e-ink |
| GNSS | L76K (GPS/BeiDou/GLONASS/QZSS) |
| IMU | BHI260AP sensor hub |
| Alerts | Buzzer + vibration motor |
| USB | 1 × USB-C |
| Battery | Li-Po with charging |

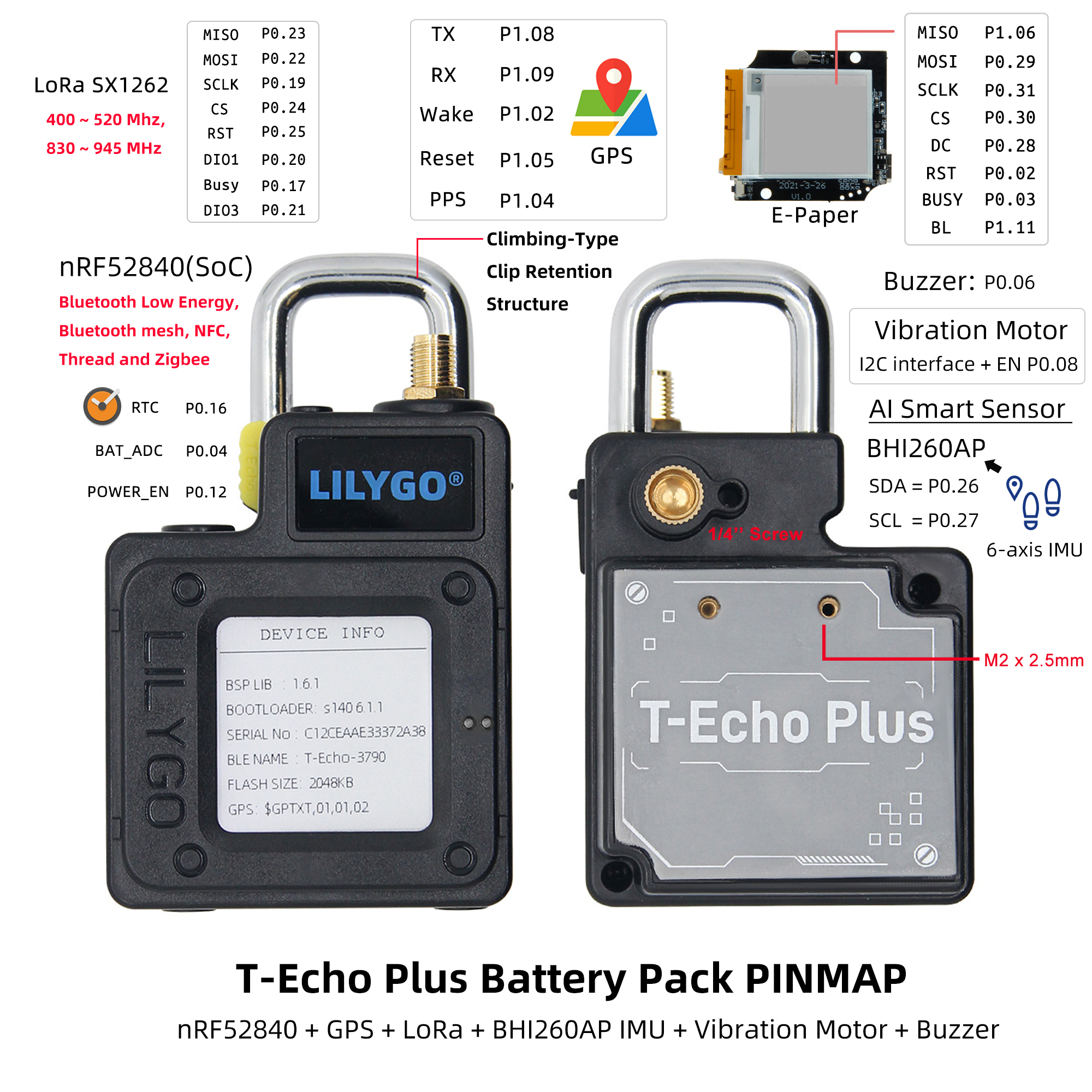

Pin Diagram

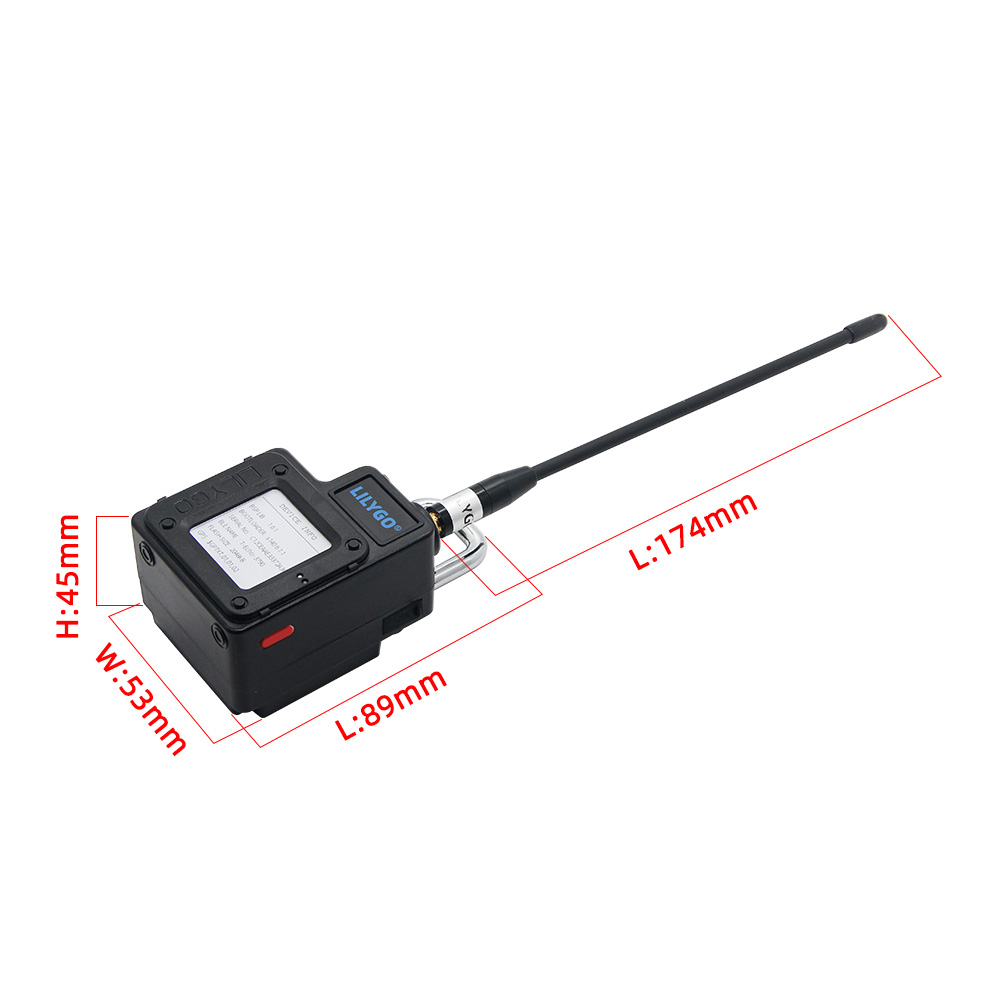

Dimensions
Schematic
Datasheet
Software Libraries
FAQ
Q. How do I flash Meshtastic? A. Use the official Meshtastic flasher at flasher.meshtastic.org and select the T-Echo device.
Q. What is the difference from the standard T-Echo? A. The T-Echo-Plus adds a BHI260AP intelligent sensor hub, buzzer, and vibration motor compared to the standard T-Echo.
Changelog
| Version | Date | Notes |
|---|---|---|
| V1.0 | Initial release with BHI260AP, buzzer, vibration motor |
