Overview

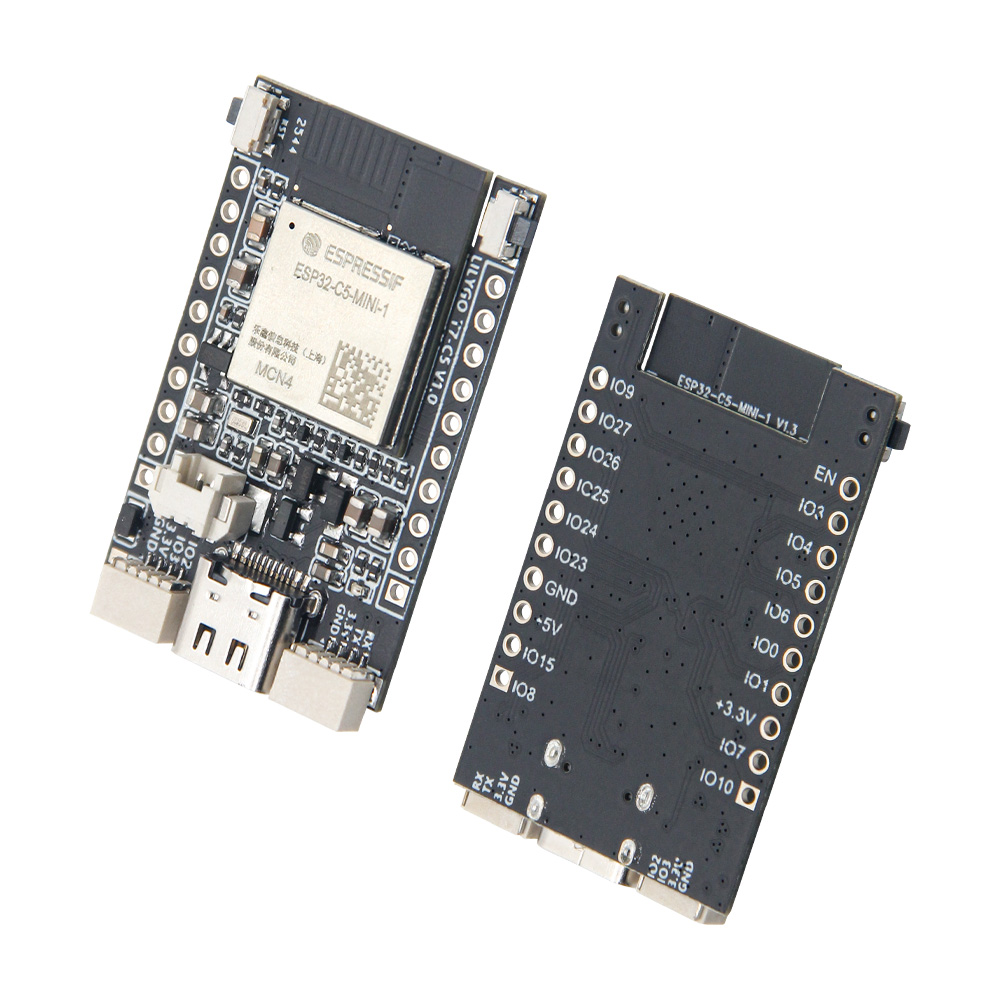

LILYGO T7-C5 is a development board based on the ESP32-C5-MINI-1 module — Espressif's first chip supporting dual-band Wi-Fi 6 (802.11ax) at both 2.4 GHz and 5 GHz, plus Bluetooth 5 and IEEE 802.15.4 (Thread/Zigbee). With 4 MB Flash, USB-C, and a compact form factor, it is designed for next-generation smart home and industrial IoT applications requiring high-throughput wireless connectivity and multi-protocol support.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
LilyGo-T7-C5	✓	✓	Wi-Fi 6, BLE, Thread/Zigbee examples

Arduino

1. Install Arduino IDE
2. Install ESP32 Arduino core (v3.x or later, which includes ESP32-C5 support)
3. In Tools → Board, select ESP32C5 Dev Module
4. Click Upload

ESP-IDF

1. Install ESP-IDF v5.3 or later
2. Set target: idf.py set-target esp32c5
3. Build and flash: idf.py build flash

Key Features

• ESP32-C5-MINI-1 @ 240 MHz, RISC-V single-core
• Dual-band Wi-Fi 6 (802.11ax): 2.4 GHz + 5 GHz
• Bluetooth 5 (LE)
• IEEE 802.15.4 (Thread / Zigbee)
• 4 MB Flash
• USB-C for power and programming
• Onboard ceramic antenna

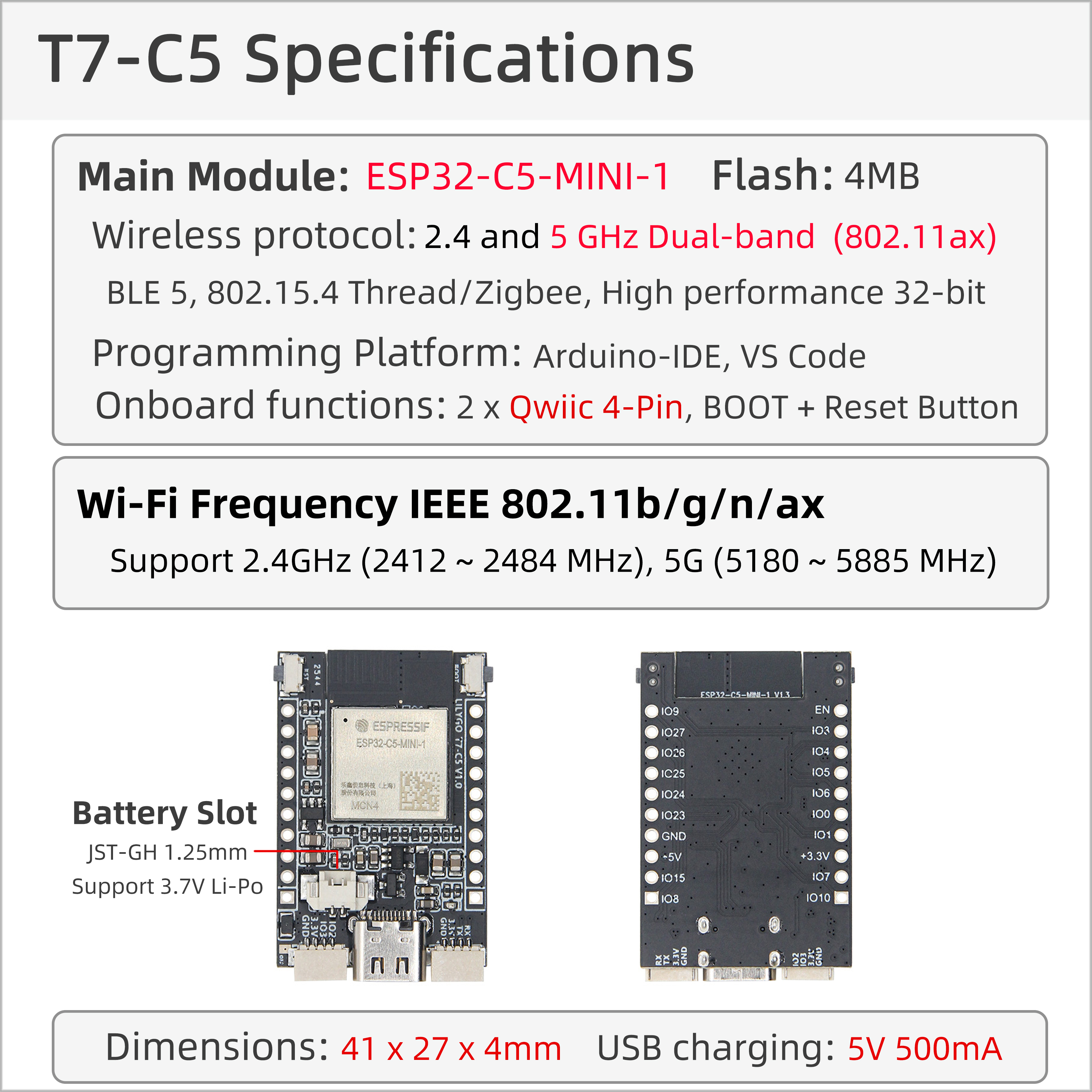

Specifications

Parameter	Value
MCU	ESP32-C5-MINI-1, RISC-V @ 240 MHz
Flash	4 MB
Wi-Fi	2.4 GHz + 5 GHz, 802.11ax (Wi-Fi 6)
Bluetooth	Bluetooth 5 (LE)
802.15.4	Thread / Zigbee
USB	1 × USB-C

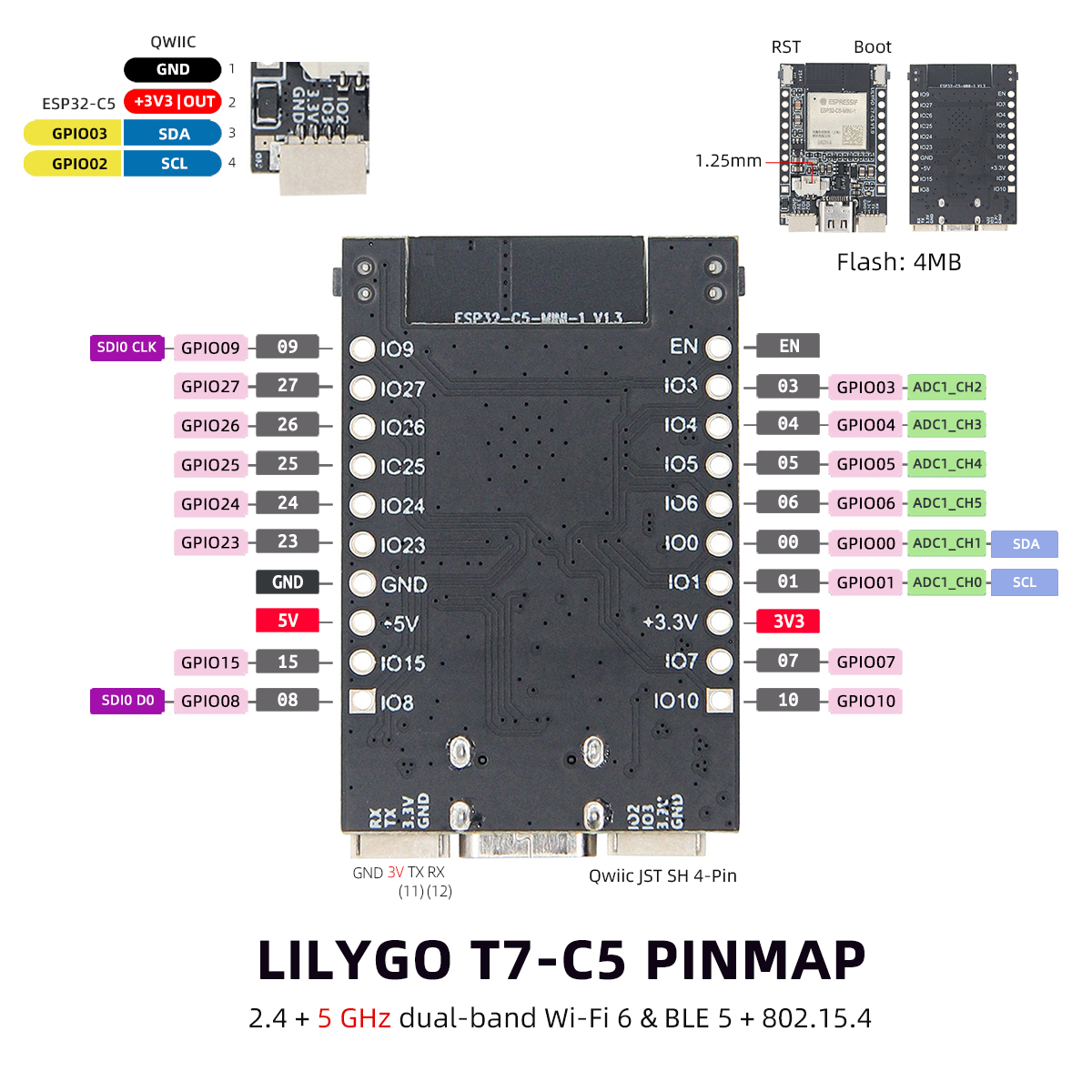

Pin Diagram

Software Libraries

• LilyGo-T7-C5 GitHub Repository

FAQ

• Q. What is the advantage of Wi-Fi 6 (802.11ax)? A. Wi-Fi 6 offers higher throughput, lower latency, and better performance in dense wireless environments compared to Wi-Fi 4 (802.11n).

• Q. Does it support 5 GHz networks? A. Yes. The ESP32-C5 is the first ESP32 chip with dual-band Wi-Fi including 5 GHz support.

Changelog

Version	Date	Notes
V1.0		Initial release
