Overview

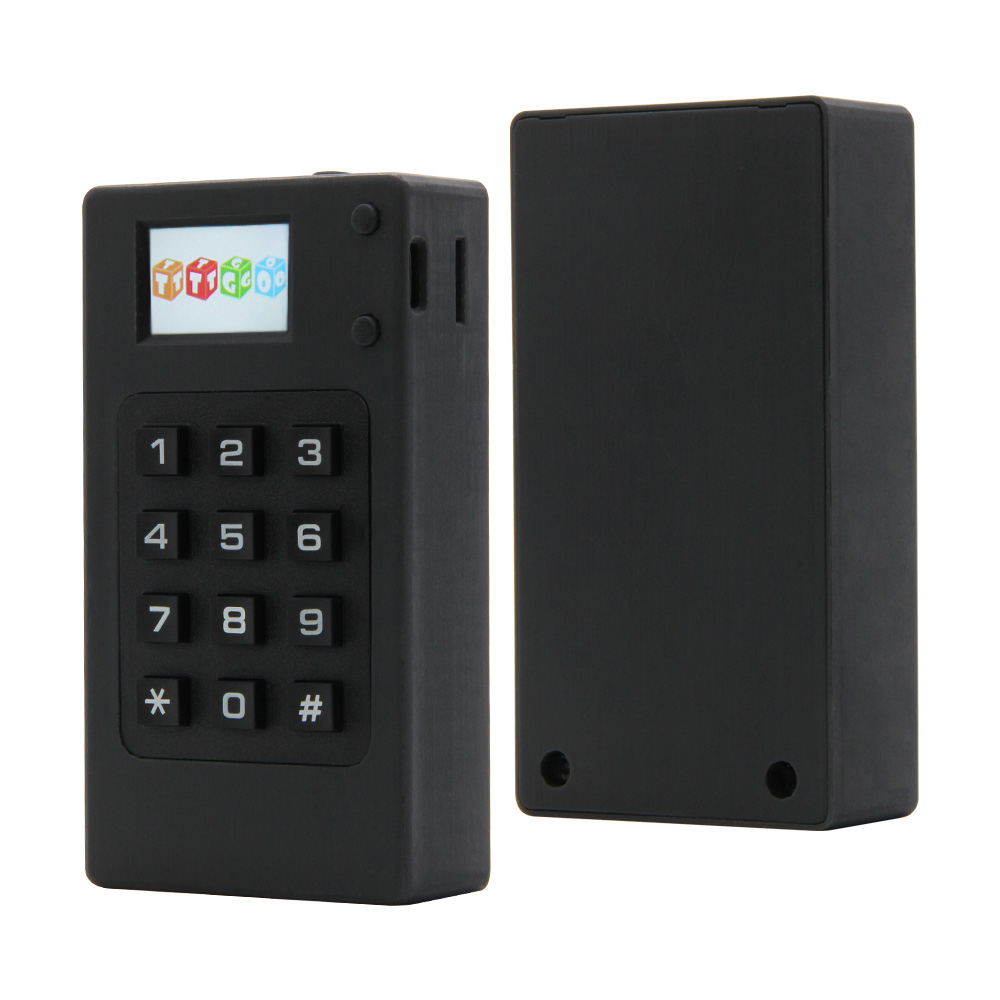

LILYGO T-Display-Keyboard is a handheld ESP32 development kit that combines the T-Display board (1.14-inch ST7789V IPS TFT, 240 × 135 px) with a compact physical keyboard shell. Based on the ESP32 dual-core LX6 processor at up to 240 MHz, it provides Wi-Fi 802.11 b/g/n and Bluetooth 4.2 + BLE. The keyboard shell exposes a full QWERTY-style keypad and a battery holder for portable, standalone applications. It is ideal for handheld controllers, message terminals, remote interfaces, and educational embedded projects.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
TTGO-T-Display	✓		Display demos, TFT_eSPI examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Open the TTGO-T-Display project folder
4. Open platformio.ini and select your example
5. Click ✓ to compile, connect via USB-C, click → to upload

Arduino

1. Install Arduino IDE
2. Install Arduino ESP32
3. In Tools → Board, configure:

Arduino IDE Setting	Value
Board	ESP32 Dev Module
Port	Your port
CPU Frequency	240 MHz (WiFi)
Flash Mode	QIO
Flash Size	4MB (32Mb) or 16MB (128Mb)
Upload Speed	921600

4. Click Upload

Development Platforms

1. ESP-IDF
2. Arduino IDE
3. PlatformIO

Related Videos

Key Features

• ESP32 dual-core LX6 @ 240 MHz, Wi-Fi 802.11 b/g/n + Bluetooth 4.2 BLE
• 1.14-inch ST7789V IPS TFT LCD, 240 × 135 px
• Integrated keyboard shell for handheld use
• Optional 2800 mAh lithium battery support
• USB-C for power and programming
• Available in 4 MB and 16 MB Flash variants
• Modular interfaces: UART, SPI, I2C, I2S, PWM, ADC, DAC

Specifications

Parameter	Value
SOC	ESP32-D0WDQ6, dual-core LX6 @ 240 MHz
Flash	4 MB / 16 MB (QSPI)
PSRAM	—
SRAM	520 KB
Wi-Fi	2.4 GHz 802.11 b/g/n
Bluetooth	Bluetooth 4.2 + BLE
Display	1.14-inch ST7789V IPS TFT, 240 × 135 px
Display Interface	4-wire SPI
Battery	Optional 805050 2800 mAh LiPo
USB	1 × USB-C
Working Voltage	2.7 V – 4.2 V

Pin Diagram

Display (ST7789V)

ST7789V	MOSI	SCK	CS	DC	RST	BL
ESP32	GPIO19	GPIO18	GPIO5	GPIO16	GPIO23	GPIO4

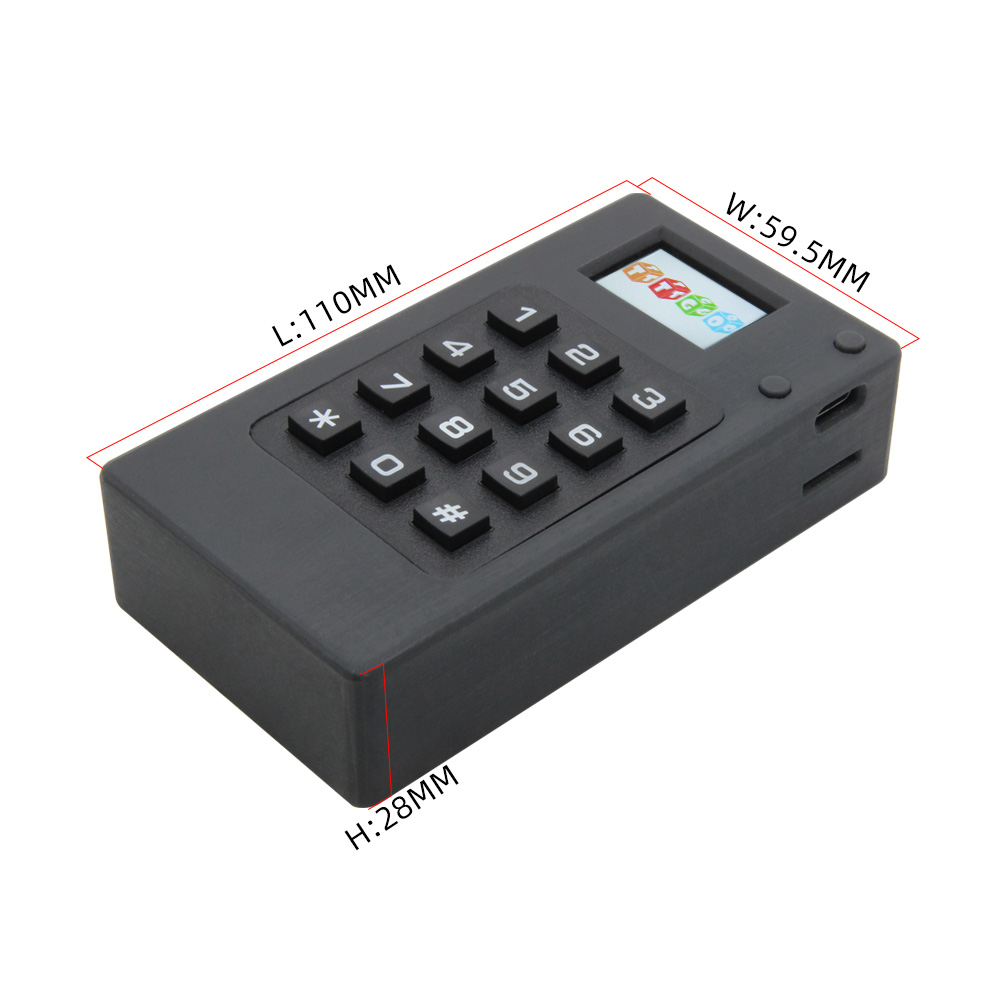

Dimensions

Schematic

• T-Display V1.0 Schematic
