LILYGO T-Display K230 Cased Version
Overview

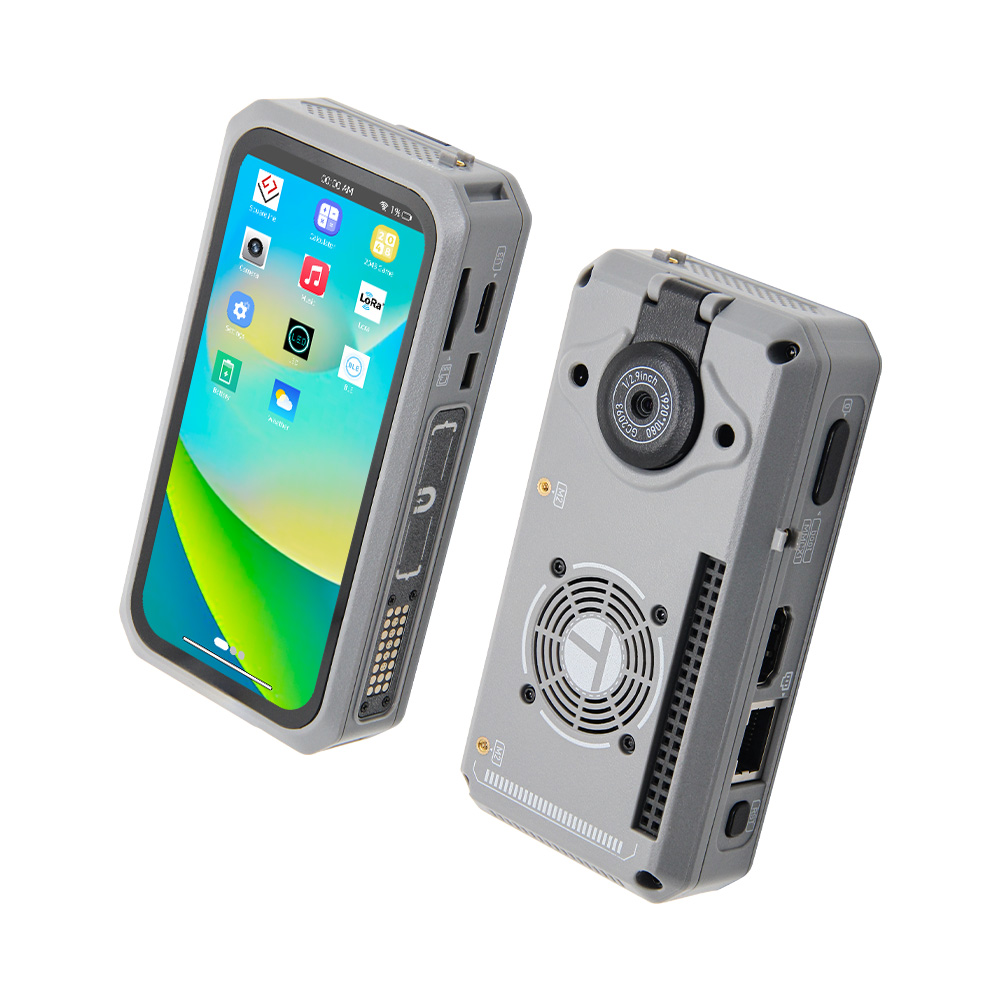

T-Display K230 Cased Version is a high-performance AIoT terminal based on the K230 AI chip. It integrates a 4.1-inch AMOLED display, camera, audio, Ethernet, HDMI, USB, TF card, QWIIC, and expansion headers. The enclosure provides structural protection and interface cutouts, making it suitable for AI vision, edge computing, handheld demos, and peripheral expansion tests.
Key Features
- K230 dual 64-bit RISC-V CPU, CPU1 1.6GHz + CPU0 800MHz
- Integrated KPU, DPU, GPU, and VPU for AI inference and multimedia processing
- 4.1-inch AMOLED display, 568 × 1232 resolution
- Onboard 2MP 1080P camera, microphone, speaker, and 3.5mm headphone jack
- Supports RTL8189FS SDIO Wi-Fi; Bluetooth requires a USB Bluetooth adapter or optional nRF52840 base board; also includes RTL8152B 100 Mbps Ethernet, HDMI, USB, TF card, and QWIIC
- Enclosure size approx. 110 × 58 × 30mm

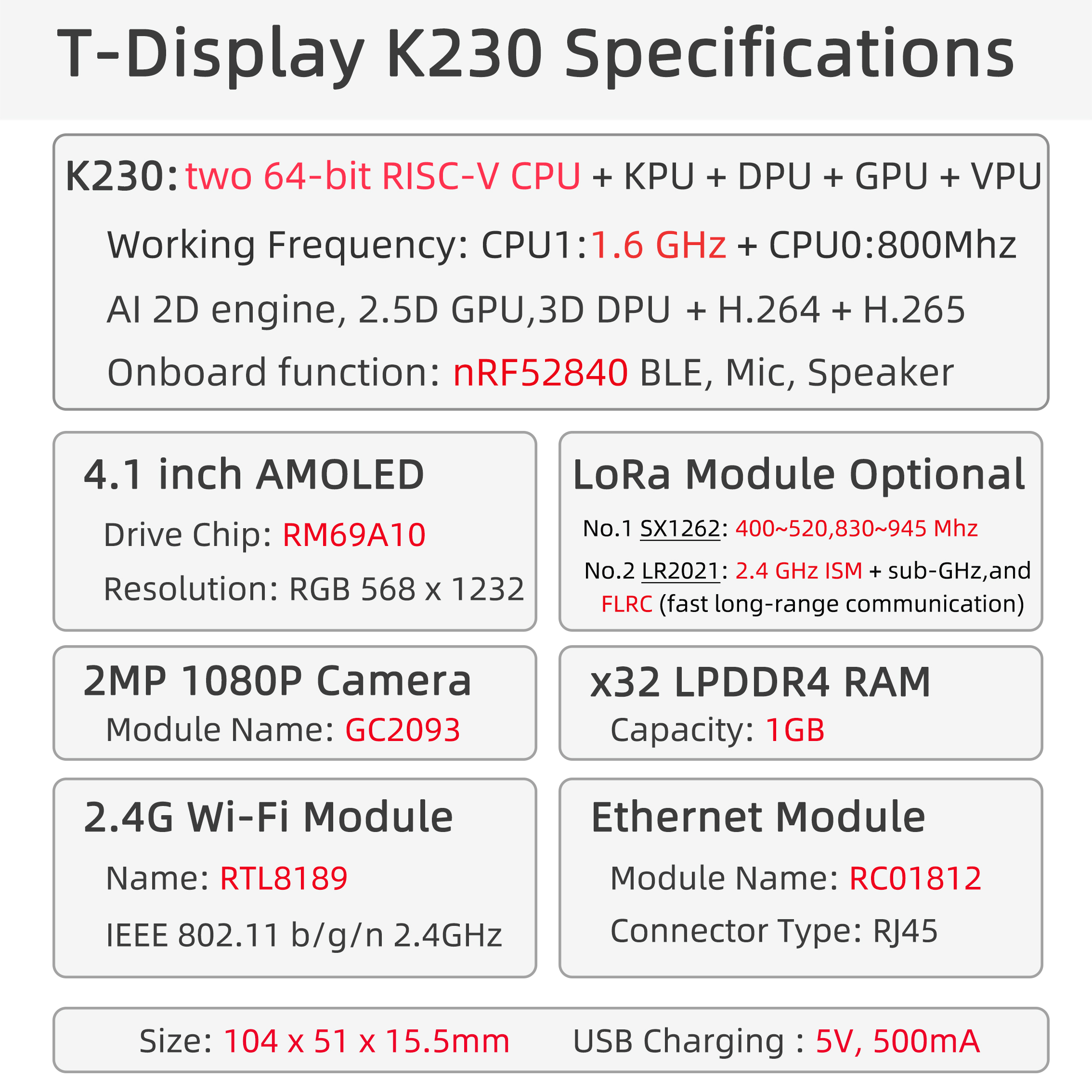

Product Parameters
| Feature | Specification |
|---|---|
| Main Processor | K230 dual 64-bit RISC-V CPU |
| CPU | CPU1 1.6GHz + CPU0 800MHz |
| AI / Multimedia | KPU + DPU + GPU + VPU |
| Display | 4.1-inch AMOLED, RGB 568 × 1232 |
| Camera | 2MP 1080P camera |
| Memory | 1 GB LPDDR4 |
| Wireless | RTL8189FS SDIO Wi-Fi; Bluetooth via USB adapter or optional nRF52840 base board |
| LoRa | Optional SX1262 or LR2021 module |
| Network | RTL8152B 100 Mbps Ethernet |
| Video Output | HDMI 1080P 30FPS |
| Audio | Microphone, speaker, 3.5mm headphone jack |
| Storage | TF card |
| Expansion | QWIIC, nRF52840 GPIO expansion header |
| Power | USB 5V / 500mA |
| Enclosure Size | Approx. 110 × 58 × 30mm |
Product Details

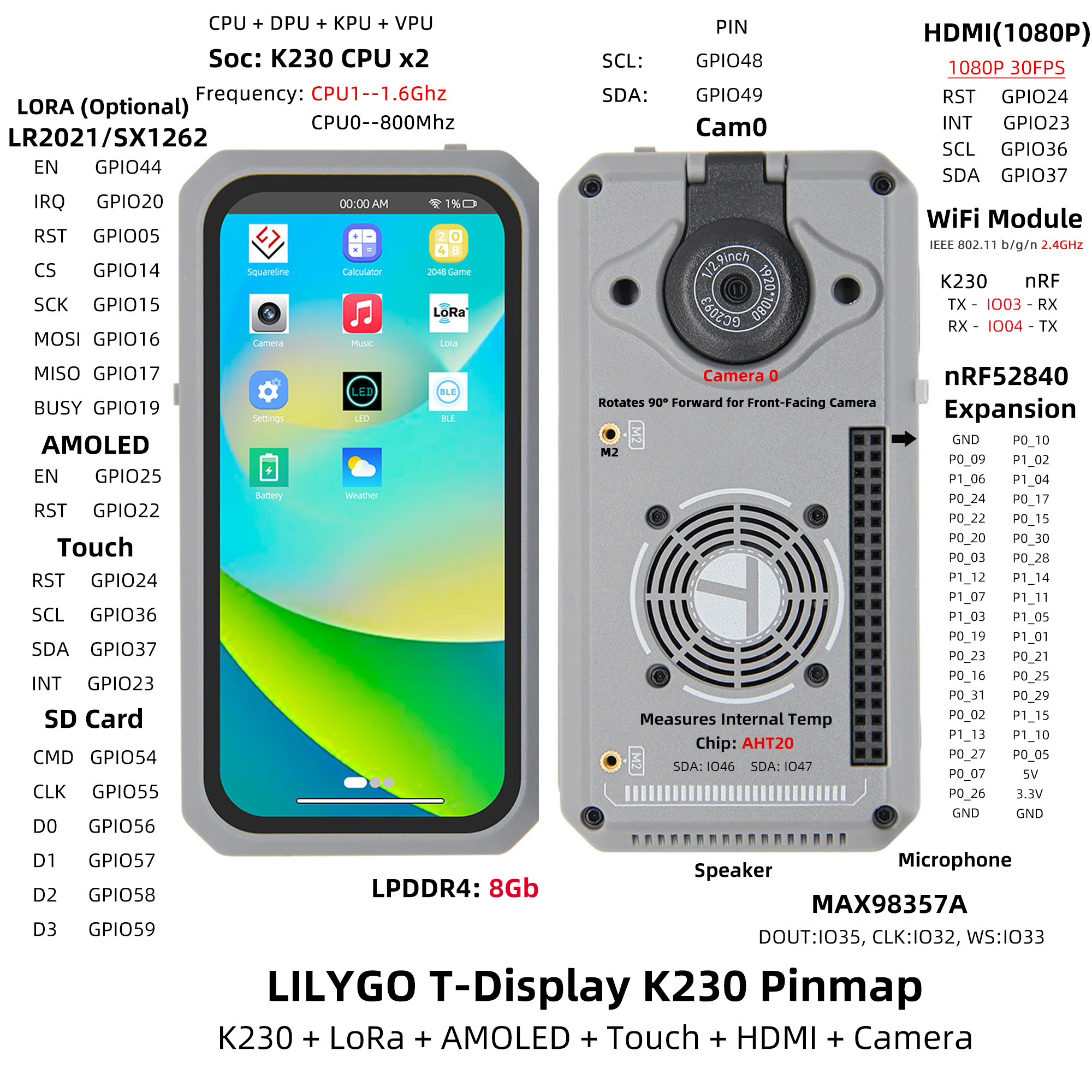

Pin Diagram

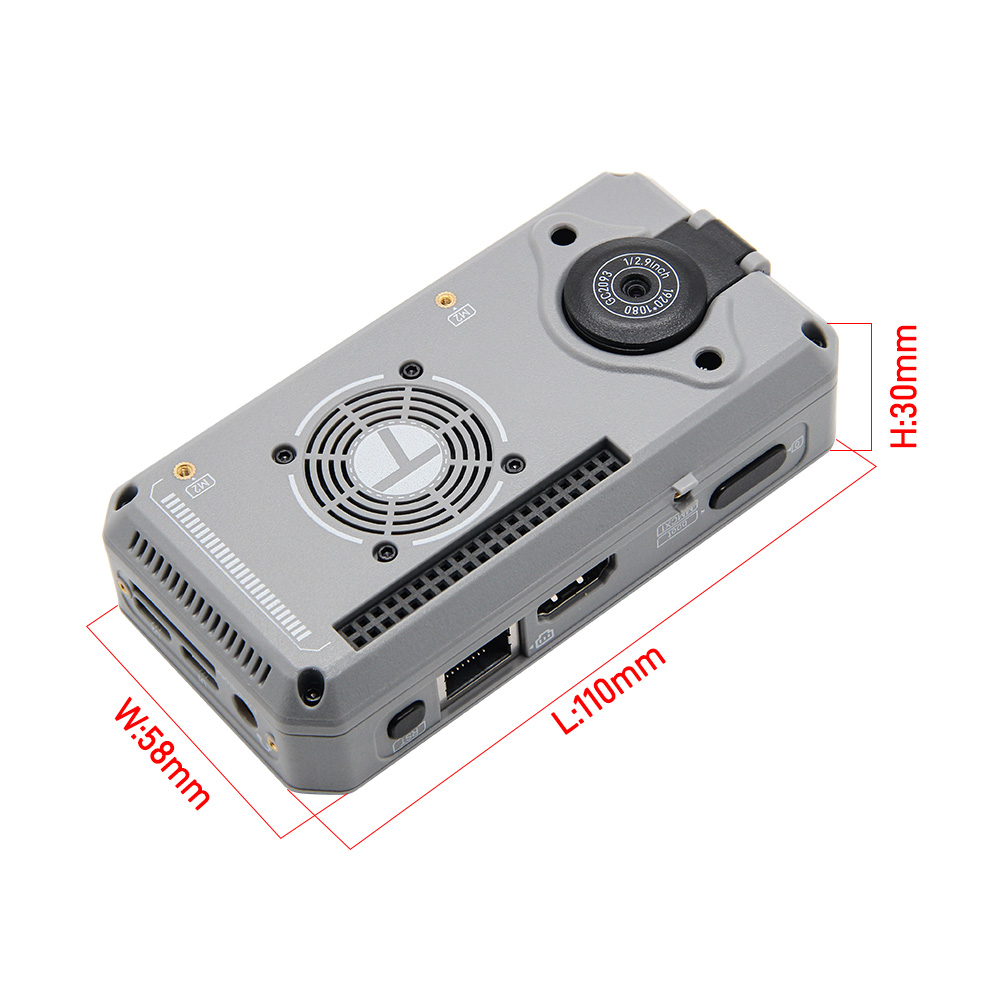

Dimension Diagram
