Overview
The T-Solar Kit is a solar charging expansion solution designed for outdoor IoT devices. Provides stable off-grid power for low-power devices (environmental sensors, agricultural monitoring stations, field positioning terminals, etc.) via a 5.4 W peak solar panel with a wide input range of 4.4–6 V. Uses a standard JST2.0 interface for quick installation. Includes all mounting screws and hardware (SUS304 stainless steel). Compatible with T3, T-Beam, T-Echo Lite, and other mainstream LILYGO mainboards.
Quick Start
Example Support
| Example | PlatformIO/Arduino | ESP-IDF | Description |
|---|

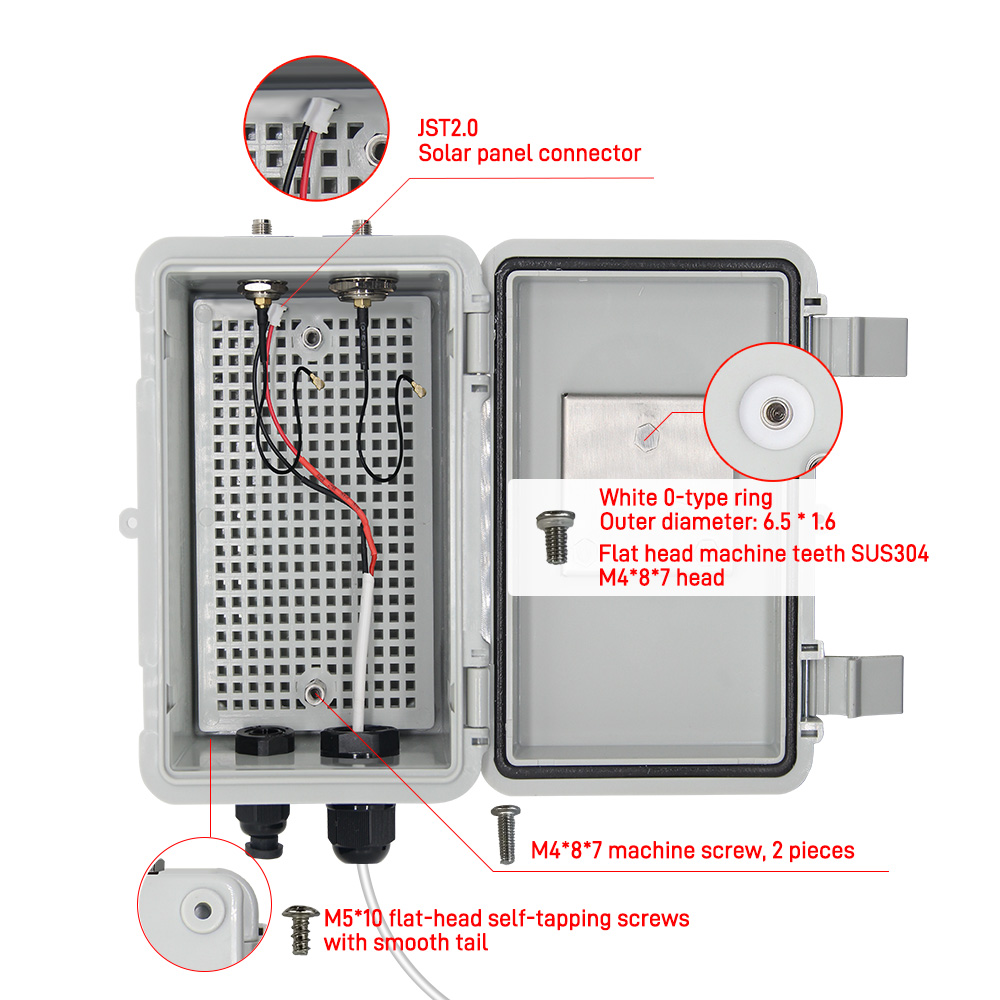

Installation
- Connect the solar panel's JST2.0 interface to the expansion board
- Secure the expansion board using the provided M4/M5 screws
- Connect the expansion board's output to a compatible mainboard
- Position the solar panel facing sunlight and verify charging status
Development Platforms
Video
Key Features
- 5.4 W peak solar panel (Vmp = 5.7 V, Imp = 947 mA)
- Wide input voltage: 4.4–6 V
- Standard JST2.0 interface for quick connection
- SUS304 stainless steel accessories for outdoor environments
- M12/M16 IPEX antenna adapter options
- Compatible with T3, T-Beam, T-Echo Lite, and more

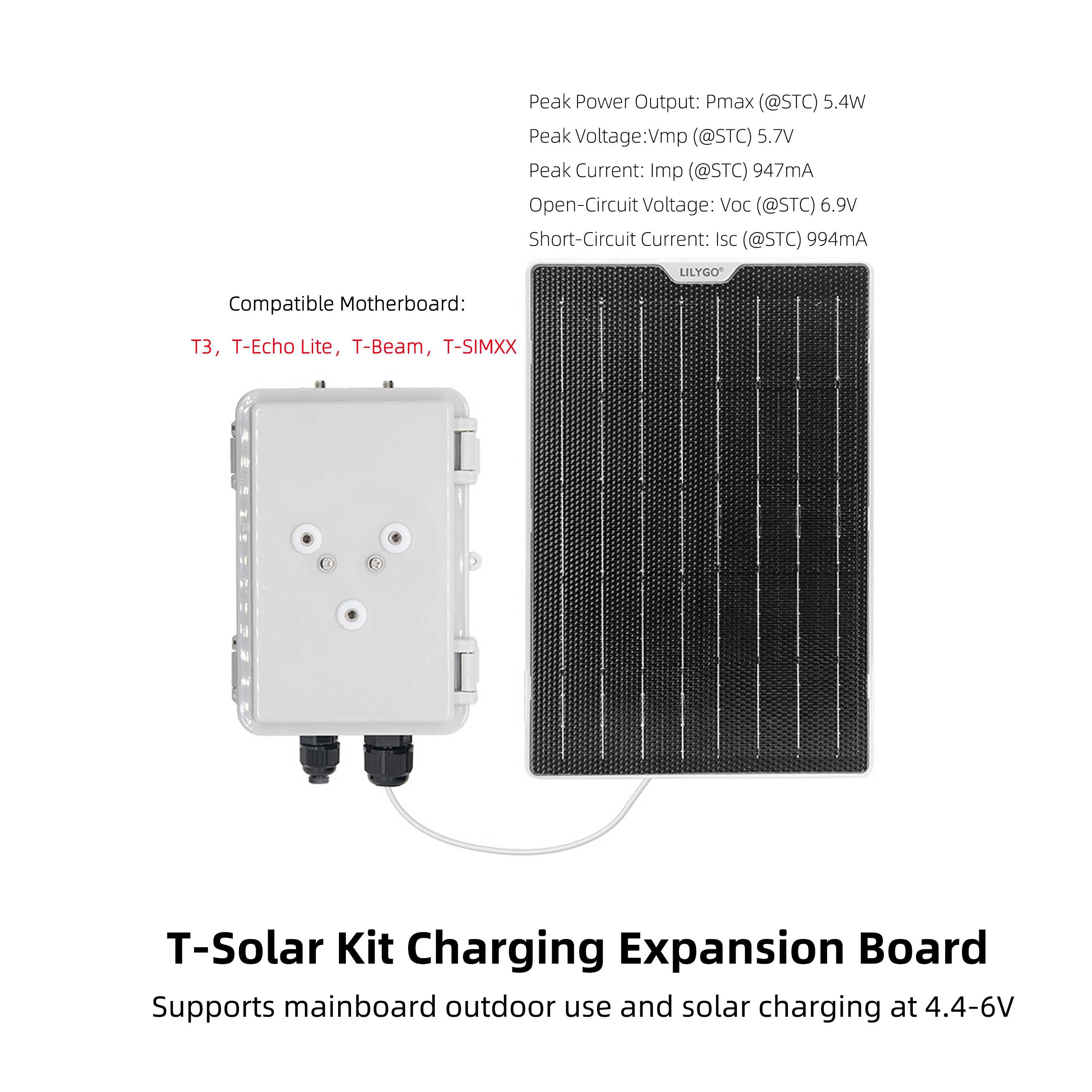

Product Parameters
| Parameter | Value |
|---|---|
| Peak Power (Pmax) | 5.4 W |
| Peak Voltage (Vmp) | 5.7 V |
| Peak Current (Imp) | 947 mA |
| Open Circuit Voltage (Voc) | 6.9 V |
| Short Circuit Current (Isc) | 994 mA |
| Input Voltage Range | 4.4–6 V |
| Output Interface | JST2.0 |
| Battery Type | 3.7 V Li-ion / LiPo |

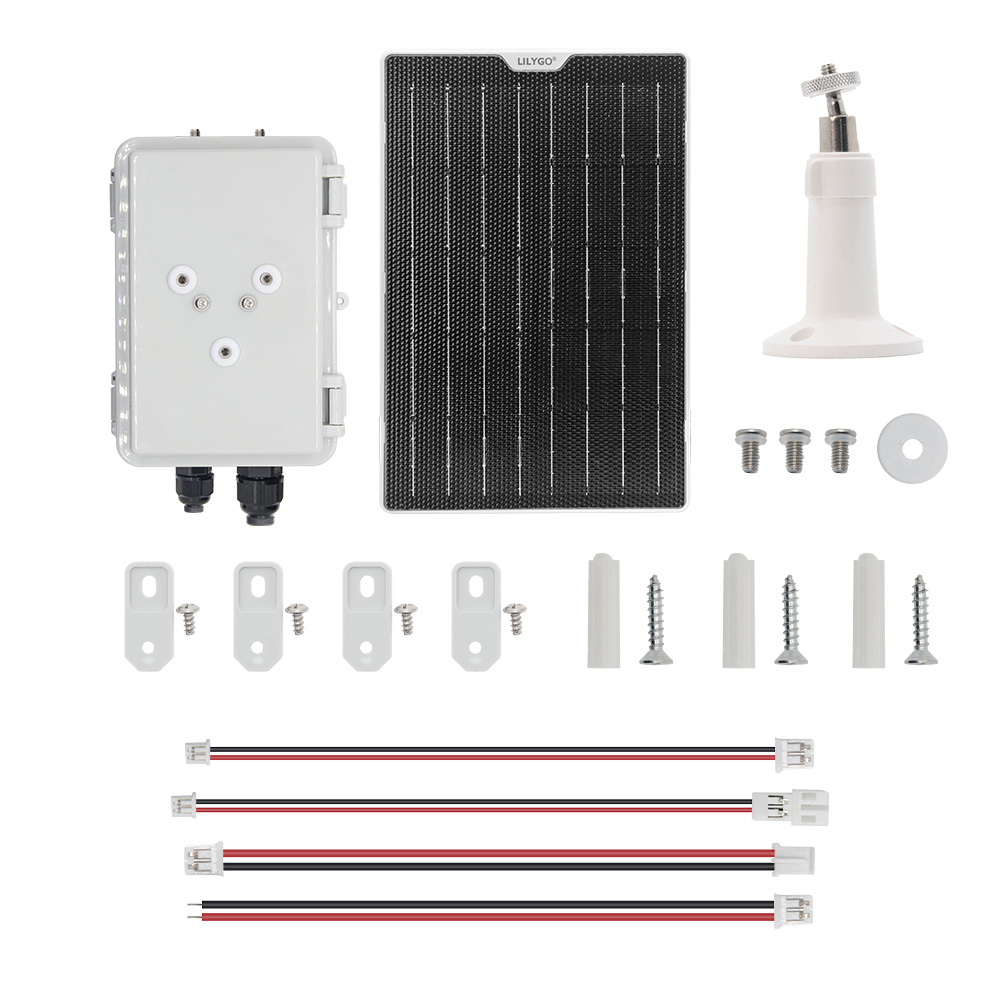

Kit Contents
- T-Solar Charging Expansion Board × 1
- Solar Panel Connection Cable (JST2.0) × 1
- M4×8×7 Machine Screws × 2
- M5×10 Flat Head Self-Tapping Screws × 2
- SUS304 Stainless Steel Washers × 2
- IPEX Adapter (M12/M16 optional) × 1
Pin Diagram
Antenna Installation Options

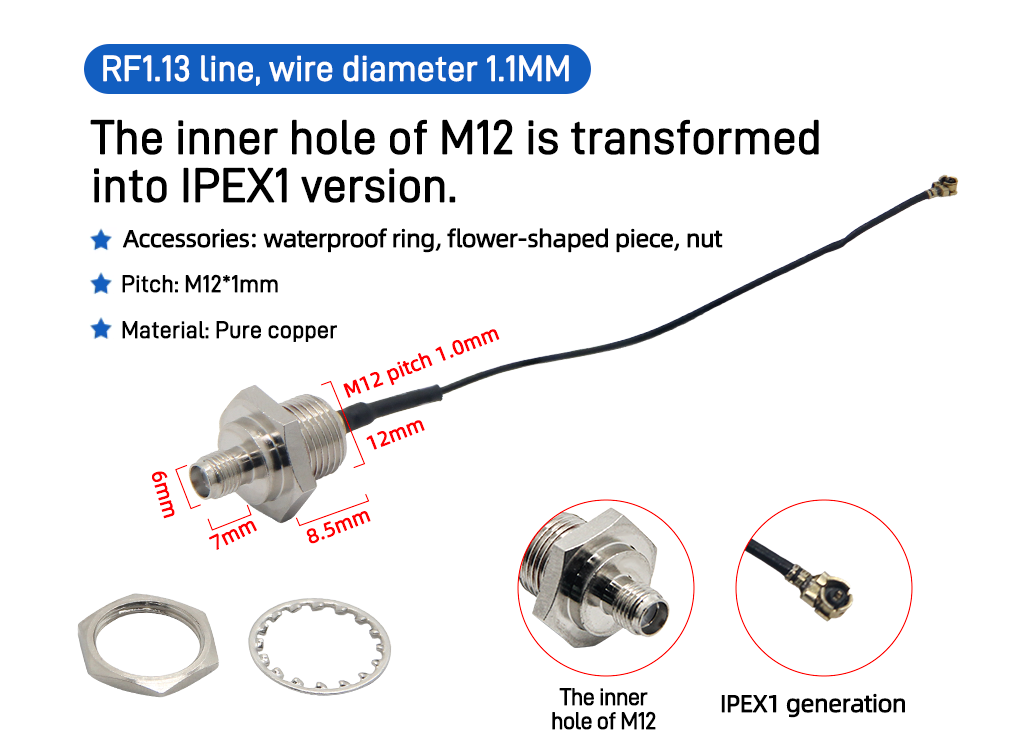

M12 Interface:

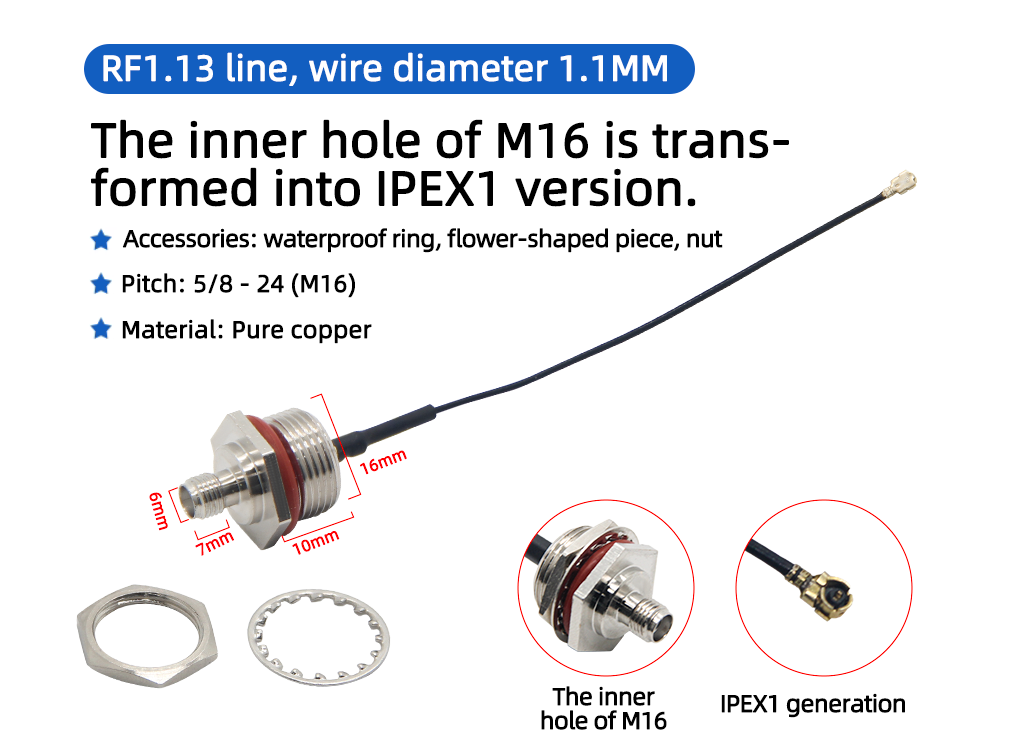

M16 Interface:
Dimension Diagram
Schematic
Datasheet
Software Development
FAQ
Q. Can I connect a higher-power solar panel? A. This product is designed for 5.4 W peak input. Solar panels exceeding 6 W are not recommended.
Q. Can it charge on cloudy or rainy days? A. Supports 4.4 V low-voltage input, allowing charging in low-light environments at reduced efficiency.
Q. What battery types are supported? A. Supports 3.7 V Lithium-ion / Lithium-polymer batteries with built-in intelligent charging protection.
Q. Are special tools required for installation? A. Only a Phillips screwdriver is needed — all hardware is included in the kit.
Version History
| Version | Release Date | Update Description |
|---|---|---|
| T-Solar Kit V1.0 | — | Initial version |
