Overview

LILYGO T-Beam is a feature-rich ESP32-based development board combining LoRa long-range wireless communication, GPS positioning, and battery management in a single compact form factor. Based on the ESP32 dual-core LX6 processor with Wi-Fi and Bluetooth 4.2, it integrates an SX1276/SX1278 LoRa module (433/868/915 MHz), a GPS module (NEO-6M or compatible), a 0.96-inch SSD1306 OLED display (128×64), and an AXP192 PMU with 18650 battery holder. Widely used for Meshtastic mesh networking, APRS tracking, LoRaWAN nodes, and portable IoT applications.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
LilyGo-LoRa-Series	✓		LoRa, GPS, OLED, PMU examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Open the LilyGo-LoRa-Series project folder
4. Open platformio.ini, uncomment the T-Beam environment under default_envs
5. Click ✓ to compile, connect via USB, click → to upload

Arduino

1. Install Arduino IDE
2. Install Arduino ESP32
3. Copy all folders from the lib directory to your Arduino libraries folder
4. In Tools → Board, configure:

Arduino IDE Setting	Value
Board	ESP32 Dev Module
Port	Your port
CPU Frequency	240 MHz (WiFi)
Flash Mode	QIO
Flash Size	4MB (32Mb)
Partition Scheme	Default 4MB with spiffs
Upload Speed	921600

5. In utilities.h, uncomment your board model, then click Upload

Development Platforms

1. Arduino IDE
2. PlatformIO
3. ESP-IDF
4. MicroPython

Related Videos

Key Features

• ESP32 dual-core LX6 @ 240 MHz, Wi-Fi 802.11 b/g/n + Bluetooth 4.2 BLE
• SX1276 / SX1278 LoRa (433/868/915 MHz), long-range low-power communication
• GPS module (NEO-6M or compatible) for location tracking
• 0.96-inch SSD1306 OLED display (128×64, I2C)
• AXP192 PMU — 18650 battery holder with charging
• Micro USB for programming and power
• Meshtastic compatible

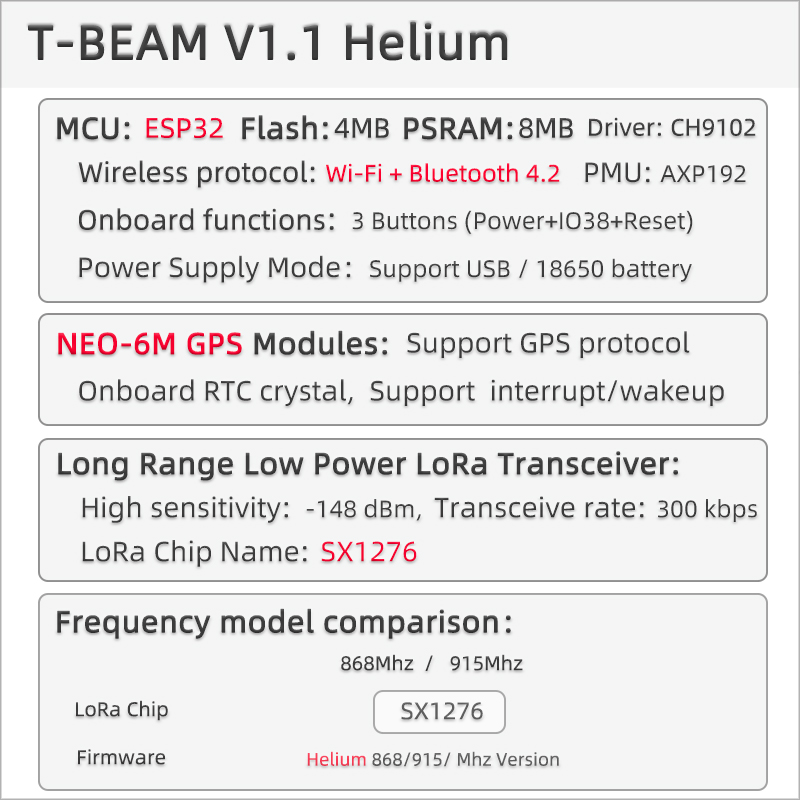

Specifications

Parameter	Value
SOC	ESP32, Dual-core LX6 @ 240 MHz
Flash	4 MB
Wireless	Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 4.2 + BLE
LoRa	SX1276 / SX1278, 433/868/915 MHz
GPS	NEO-6M or compatible
Display	0.96-inch SSD1306 OLED, 128×64, I2C
PMU	AXP192
Battery	18650 Li-Ion holder
USB	1 × Micro USB

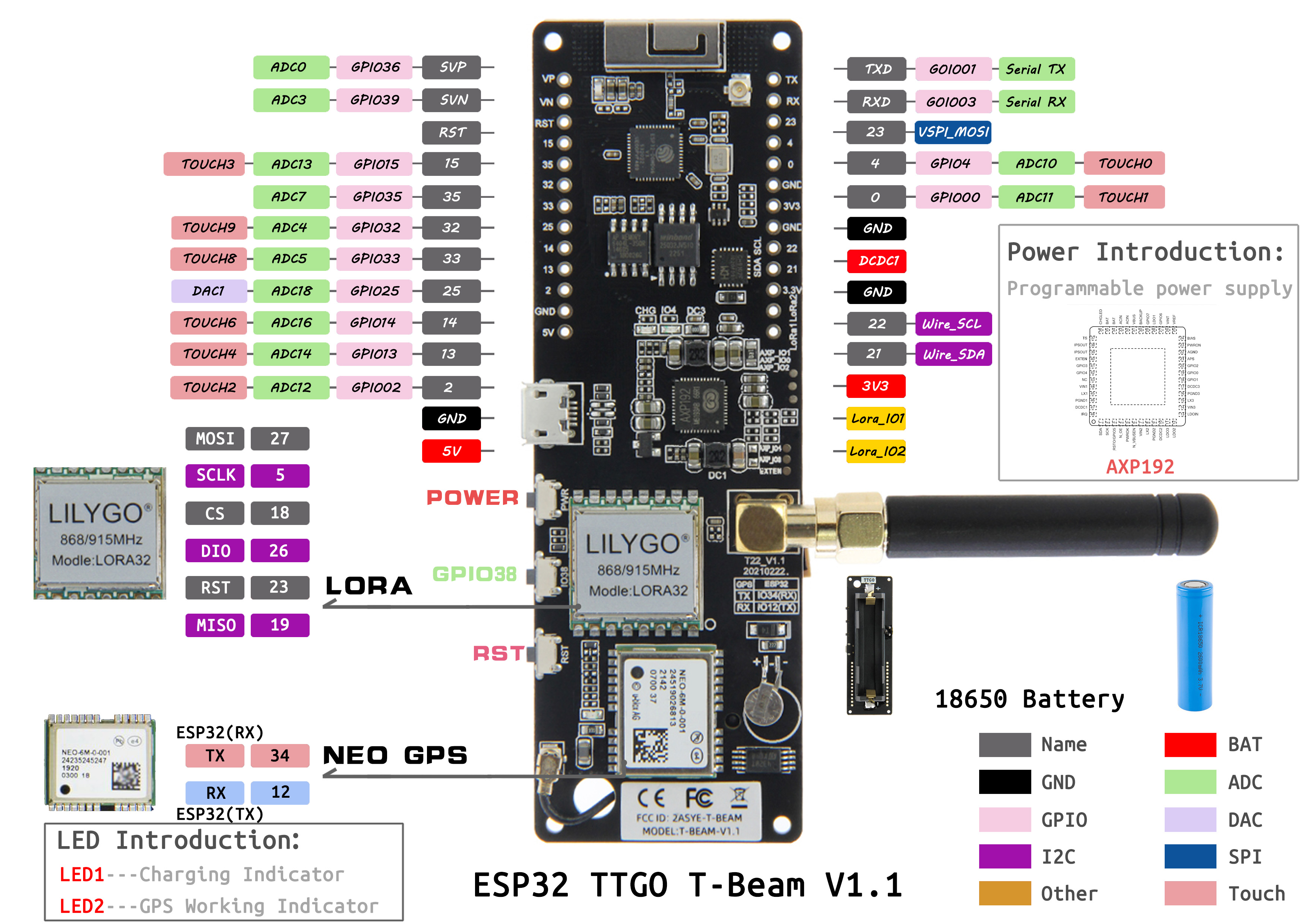

Pin Diagram

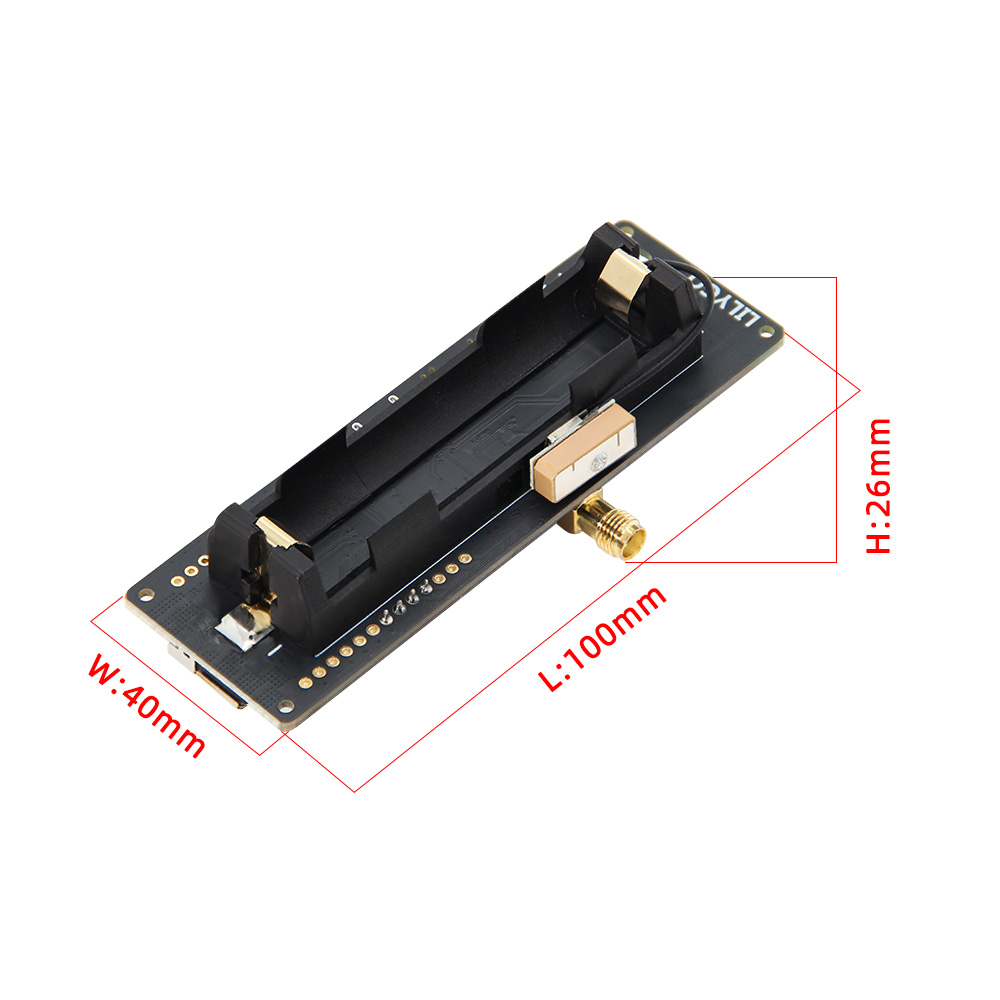

Dimensions

Schematic

• LilyGo-LoRa-Series Hardware

Datasheet

• ESP32 Datasheet
• SX1276 Datasheet

Software Libraries

• LilyGo-LoRa-Series GitHub Repository

Dependent Libraries

• RadioLib
• TinyGPSPlus
• U8g2
• XPowersLib

FAQ

• Q. Which LoRa frequency should I use? A. 433 MHz is common in Asia; 868 MHz in Europe; 915 MHz in North America. Match the frequency to your region's regulations.

• Q. Cannot flash firmware? A. Hold the BOOT button, press and release RST, then click Upload.

Changelog

Version	Date	Notes
V1.0		Initial release
V1.1		Added AXP192 PMU
