Overview

LILYGO T-Display is a compact ESP32 development board with a built-in 1.14-inch ST7789V IPS TFT LCD (240 × 135 px). Based on the ESP32 dual-core LX6 processor running at up to 240 MHz, it integrates Wi-Fi 802.11 b/g/n and Bluetooth 4.2 + BLE for wireless connectivity. The board features two programmable push buttons, a battery charging circuit, USB-C programming interface, and exposes a full set of GPIO pins. Its small footprint and integrated display make it popular for wearables, environmental monitors, and IoT dashboards.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
TTGO-T-Display	✓		Display demos, TFT_eSPI examples, factory test

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Open the TTGO-T-Display project folder
4. Open platformio.ini and select your example
5. Click ✓ to compile, connect via USB-C, click → to upload

Arduino

1. Install Arduino IDE
2. Install Arduino ESP32
3. In Tools → Board, configure:

Arduino IDE Setting	Value
Board	ESP32 Dev Module
Port	Your port
CPU Frequency	240 MHz (WiFi)
Flash Mode	QIO
Flash Size	4MB (32Mb)
Upload Speed	921600

4. Click Upload

Development Platforms

1. ESP-IDF
2. Arduino IDE
3. PlatformIO

Related Videos

Key Features

• ESP32 dual-core LX6 @ 240 MHz, Wi-Fi 802.11 b/g/n + Bluetooth 4.2 BLE
• 1.14-inch ST7789V IPS TFT LCD, 240 × 135 px, 260 PPI
• Programmable backlight (GPIO4)
• 2 × programmable push buttons
• Battery charging circuit (supports 1S LiPo)
• USB-C for power and programming
• Compact form factor with full GPIO breakout

Specifications

Parameter	Value
SOC	ESP32-D0WDQ6, dual-core LX6 @ 240 MHz
Flash	4 MB (QSPI) / 16 MB variant available
PSRAM	—
Wi-Fi	2.4 GHz 802.11 b/g/n
Bluetooth	Bluetooth 4.2 + BLE
Display	1.14-inch ST7789V IPS TFT, 240 × 135 px
Display Interface	4-wire SPI
Buttons	2 × programmable push buttons
Battery	JST-PH 1.25mm connector, supports 1S LiPo
USB	1 × USB-C
Working Voltage	2.7 V – 4.2 V

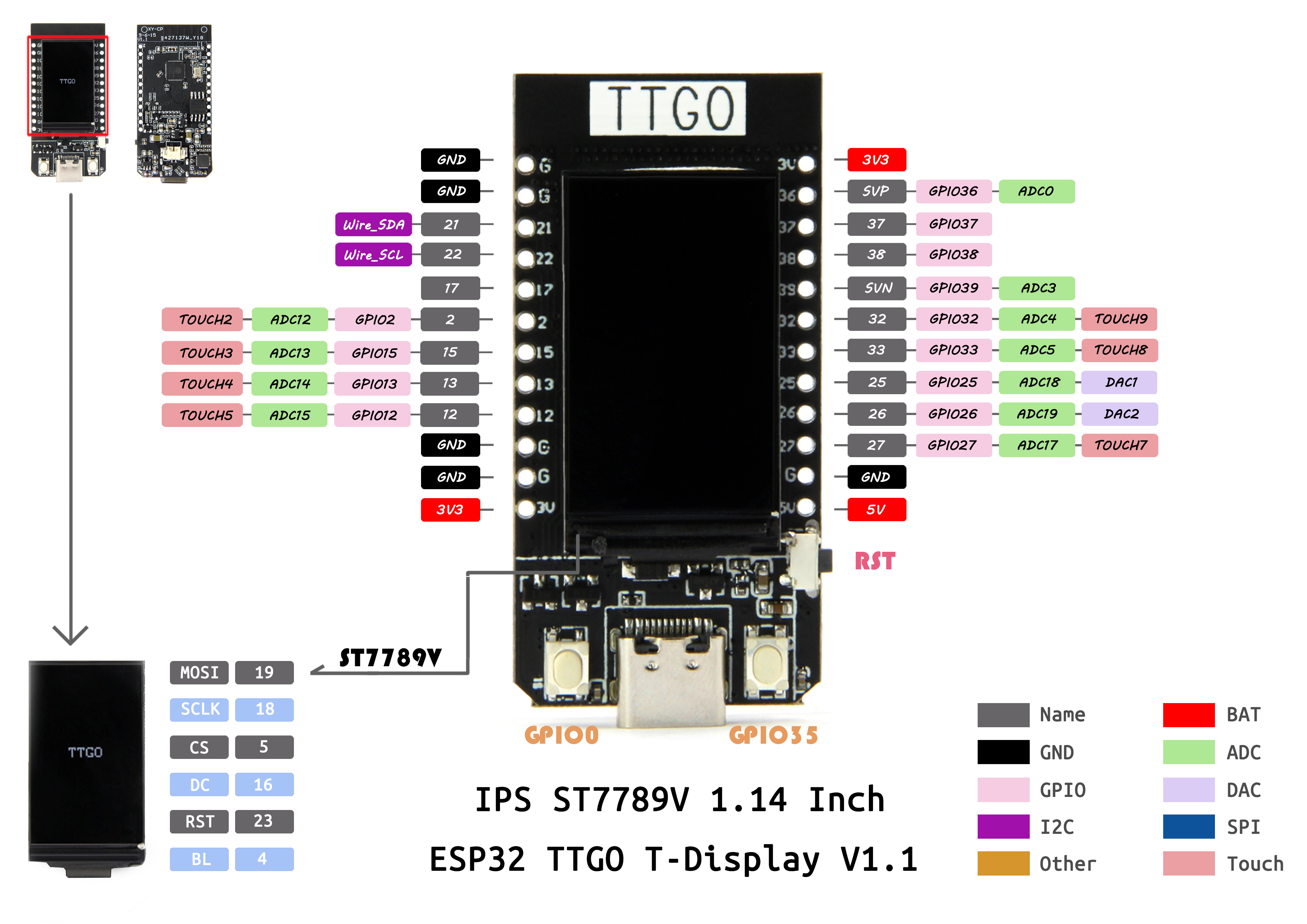

Pin Diagram

Display (ST7789V)

ST7789V	MOSI	SCK	CS	DC	RST	BL
ESP32	GPIO19	GPIO18	GPIO5	GPIO16	GPIO23	GPIO4

Buttons

Function	GPIO
Button 1	GPIO0
Button 2	GPIO35

Dimensions

Schematic

• T-Display V1.0 Schematic

Datasheet

Software Libraries

• TTGO-T-Display GitHub Repository

Dependent Libraries

• TFT_eSPI

FAQ

Version History

Version	Release Date	Update Description
V1.0		Initial release
