T-ETH Elite LTE Shield

Overview

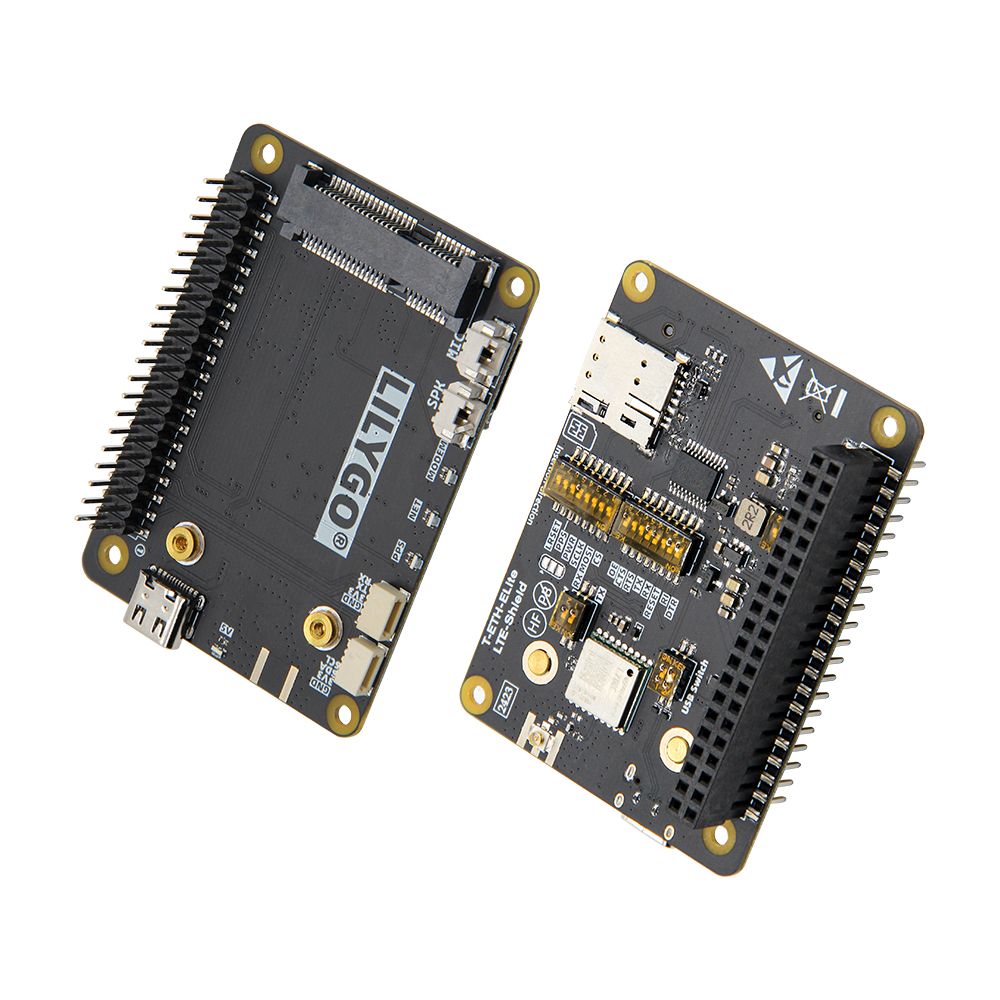

T-ETH Elite LTE Shield is a 4G cellular expansion board designed for the T-ETH-Elite mainboard. Integrates LTE communication and L76K GPS positioning, enabling remote data transmission in areas without Wi-Fi or Ethernet coverage. Compatible with T-PCIE LTE modules (T-PCIE mode: 4.2 V; official PCIE mode: 3.3 V). Combined with the T-ETH-Elite's W5500 Ethernet and PoE (36–57 V), forms an LTE + GPS + Ethernet multi-protocol hybrid hub. Suitable for industrial remote monitoring, vehicle-mounted terminals, and IoT nodes in remote areas.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
T-ETH-Series Examples	✓		LTE and GPS examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Clone the LilyGO-T-ETH-Series repository
4. Open platformio.ini and uncomment the desired example
5. Click ✓ to compile, click → to upload

Arduino

Refer to the T-ETH-Elite Quick Start guide for Arduino board settings.

Development Platforms

1. PlatformIO
2. Arduino IDE

Video

Key Features

• LTE (4G/5G) cellular expansion for T-ETH-Elite mainboard
• Compatible with T-PCIE LTE modules (T-PCIE mode: 4.2 V; official PCIE mode: 3.3 V)
• L76K GPS for precise location tracking and time synchronization
• Works with T-ETH-Elite's W5500 Ethernet, PoE (36–57 V), and Wi-Fi/BT

Product Parameters

Feature	Specification
Cellular	LTE (4G/5G via T-PCIE module)
GPS	L76K
PCIE Mode	T-PCIE (4.2 V) or official PCIE (3.3 V)
GPIO	40-PIN (Raspberry Pi compatible)
Compatible Mainboard	T-ETH-Elite

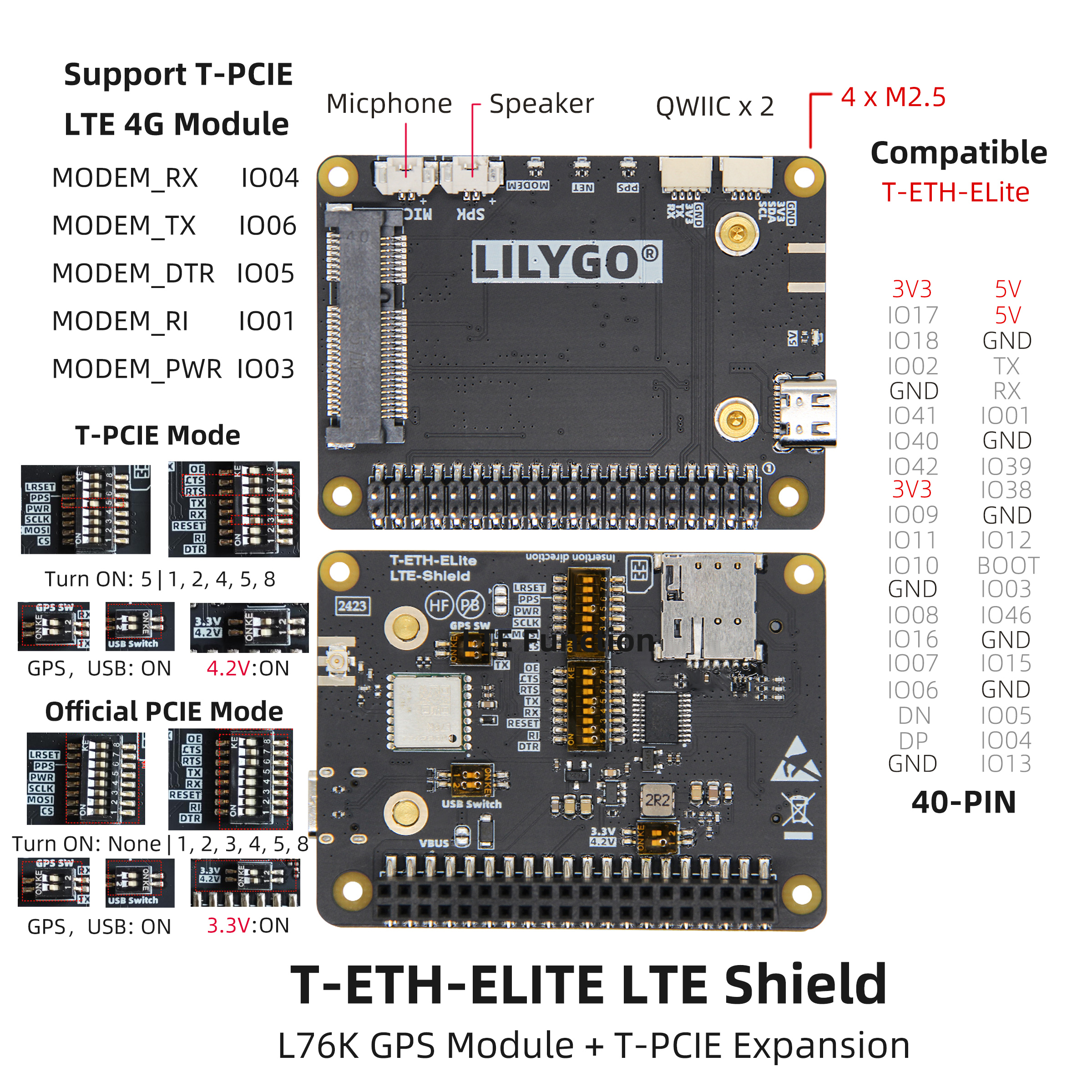

Pin Diagram

Dimension Diagram

Schematic

• T-ETH-ELite-LTE-Shield Schematic

Datasheet

Software Development

• LilyGO-T-ETH-Series GitHub Repository

Dependent Libraries

• AceButton
• Adafruit_NeoPixel
• Adafruit_BME280_Library
• ESPAsyncWebServer
• TFT_eSPI
• TinyGPSPlus
• TinyGSM
• U8g2
• XPowersLib

FAQ

• Q. Which mainboard is required to use T-ETH Elite LTE Shield? A. Designed for the T-ETH-Elite mainboard. Does not function standalone.

• Q. What LTE modules are compatible? A. Compatible with T-PCIE LTE modules. Supports T-PCIE mode (4.2 V) or official PCIE mode (3.3 V).

Version History

Version	Release Date	Update Description
T-ETH Elite LTE Shield V1.0	—	Initial version
