Overview

LILYGO T-Dongle-C5 is a compact ESP32-C5-based USB dongle development board in a standard USB Type-A plug form factor. Powered by the ESP32-C5 single-core RISC-V @ 240 MHz with dual-band Wi-Fi 6 (2.4 GHz + 5 GHz) and Bluetooth 5.0 LE, it integrates a 0.96-inch ST7735 IPS color TFT (80 × 160), a TF card slot, 16 MB Flash, and 8 MB PSRAM — all within a transparent USB-A housing. Thread and Zigbee 3.0 support makes it a versatile platform for next-generation IoT applications, wireless display dongles, and Matter-ready devices.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
T-Dongle-C5	✓		Display, TF card, Wi-Fi 6, BLE examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Open the T-Dongle-C5 project folder
4. Open platformio.ini and select your example
5. Click ✓ to compile, connect via USB-A, click → to upload

Arduino

1. Install Arduino IDE
2. Install Arduino ESP32
3. In Tools → Board, configure:

Arduino IDE Setting	Value
Board	ESP32C5 Dev Module
Port	Your port
USB CDC On Boot	Enable
CPU Frequency	240 MHz
Flash Mode	QIO
Flash Size	16MB (128Mb)
Partition Scheme	16M Flash (3MB APP/9.9MB FATFS)
PSRAM	OPI PSRAM
Upload Speed	921600

4. Click Upload

Development Platforms

1. ESP-IDF
2. Arduino IDE

Related Videos

Key Features

• ESP32-C5 single-core RISC-V @ 240 MHz
• Dual-band Wi-Fi 6 (802.11ax) 2.4 GHz + 5 GHz
• Bluetooth 5.0 LE, Thread, Zigbee 3.0

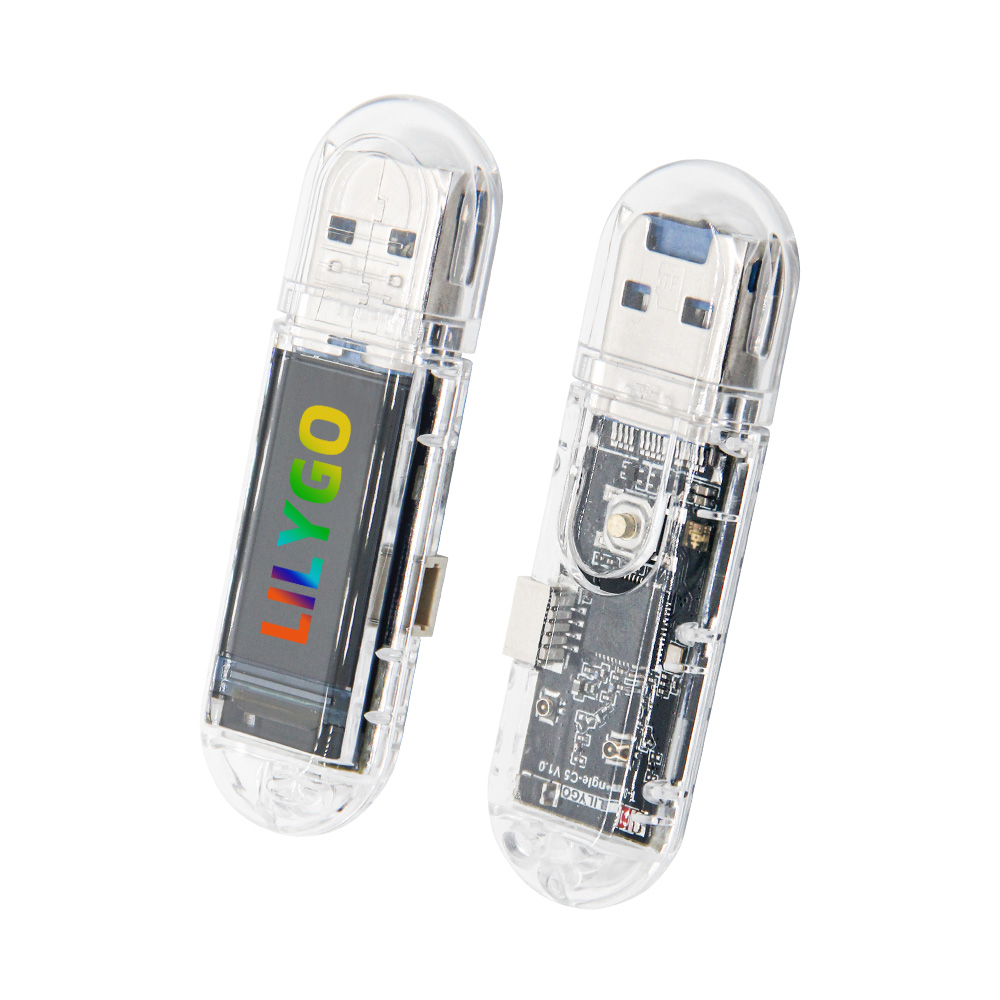

• USB Type-A plug form factor with transparent housing
• 0.96-inch ST7735 IPS color TFT LCD (80 × 160, 65k colors)
• TF card slot
• 16 MB Flash, 8 MB PSRAM
• Matter-ready for smart home integration

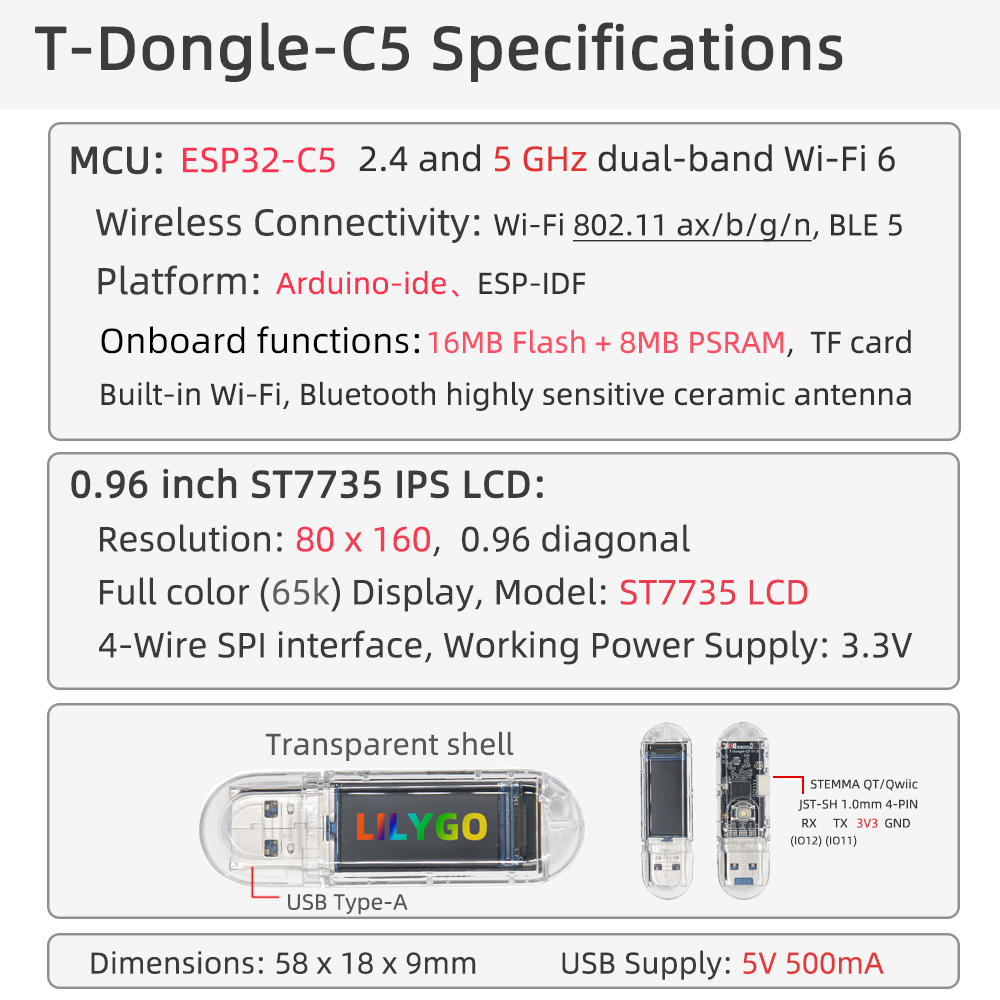

Specifications

Parameter	Value
SOC	ESP32-C5, Single-core RISC-V @ 240 MHz
Flash	16 MB
PSRAM	8 MB
Wireless	Wi-Fi 6 (2.4 GHz + 5 GHz), Bluetooth 5.0 LE, Thread, Zigbee 3.0
Display	0.96-inch ST7735 IPS TFT, 80 × 160
Storage	TF card slot
USB	USB Type-A plug
Dimensions	58 × 18 × 9 mm

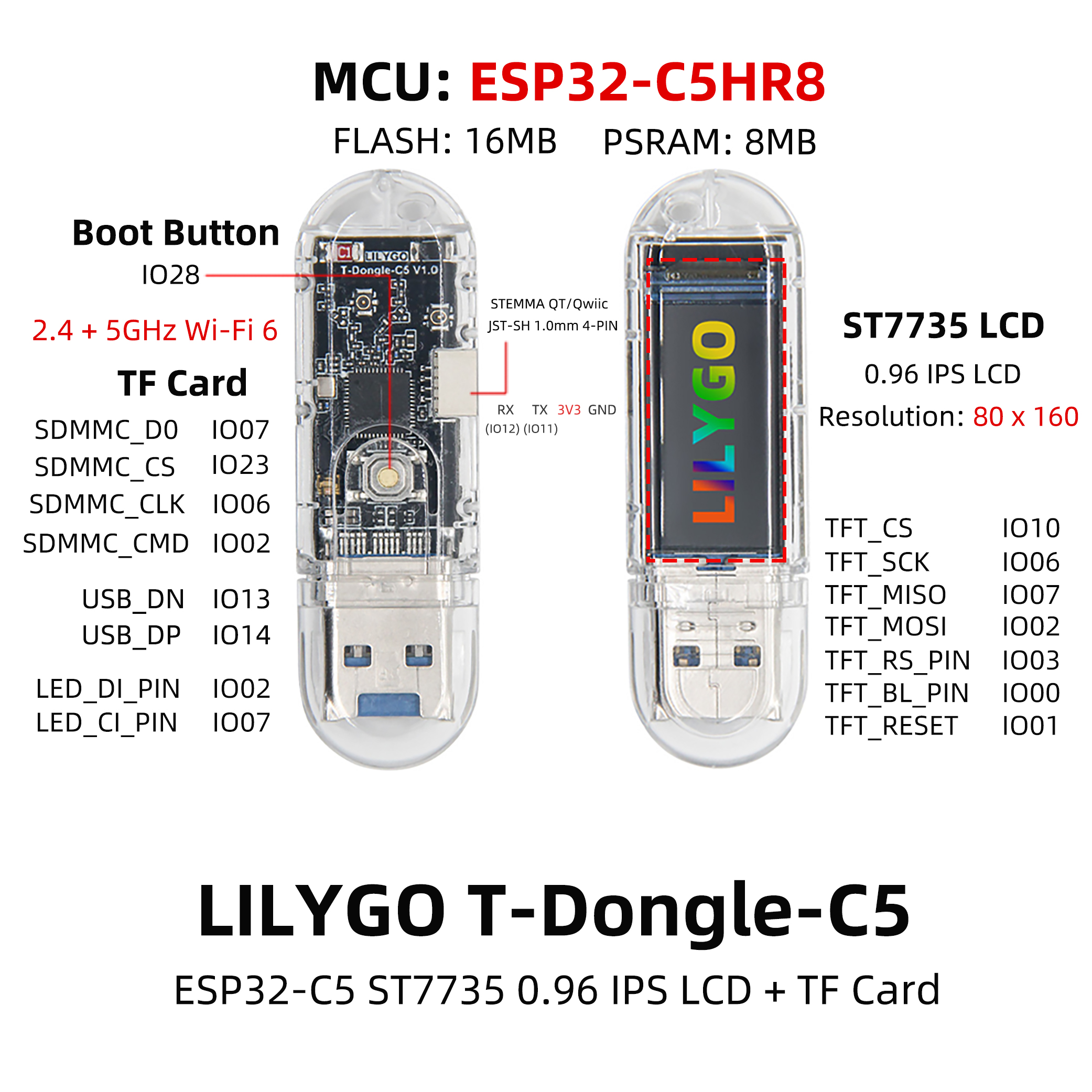

Pin Diagram

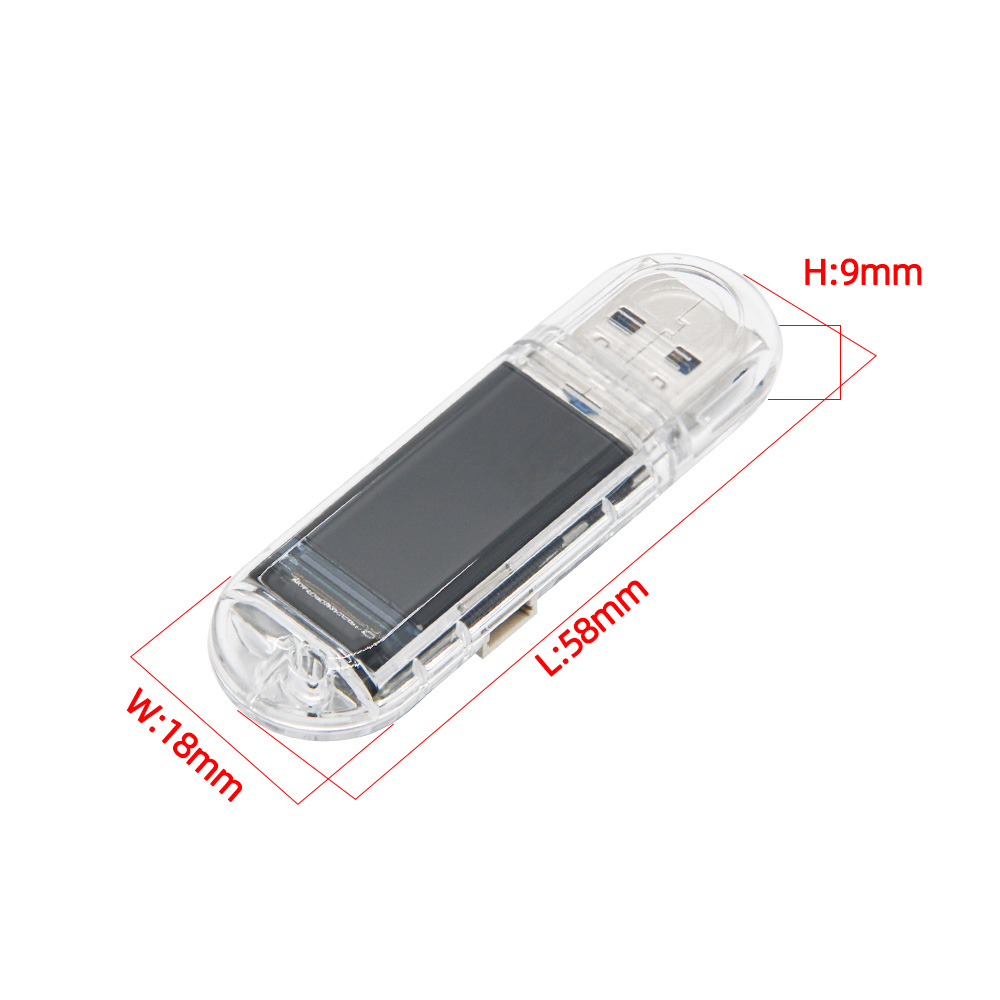

Dimensions

Schematic

• T-Dongle-C5 GitHub Repository (hardware)

Datasheet

• ESP32-C5 Datasheet

Software Libraries

• T-Dongle-C5 GitHub Repository

Dependent Libraries

• TFT_eSPI

FAQ

• Q. Does T-Dongle-C5 support Matter? A. Yes. The ESP32-C5 supports Thread and Zigbee 3.0, which are key protocols for Matter-based smart home ecosystems.

• Q. What is the difference from T-Dongle-S3? A. The C5 variant uses the newer ESP32-C5 chip with dual-band Wi-Fi 6 (including 5 GHz) and Thread/Zigbee support, whereas the S3 uses ESP32-S3 with 2.4 GHz Wi-Fi 4 and Bluetooth 5 LE only.

Changelog

Version	Date	Notes
V1.0		Initial release
