T-ETH Elite LoRa Shield
Overview

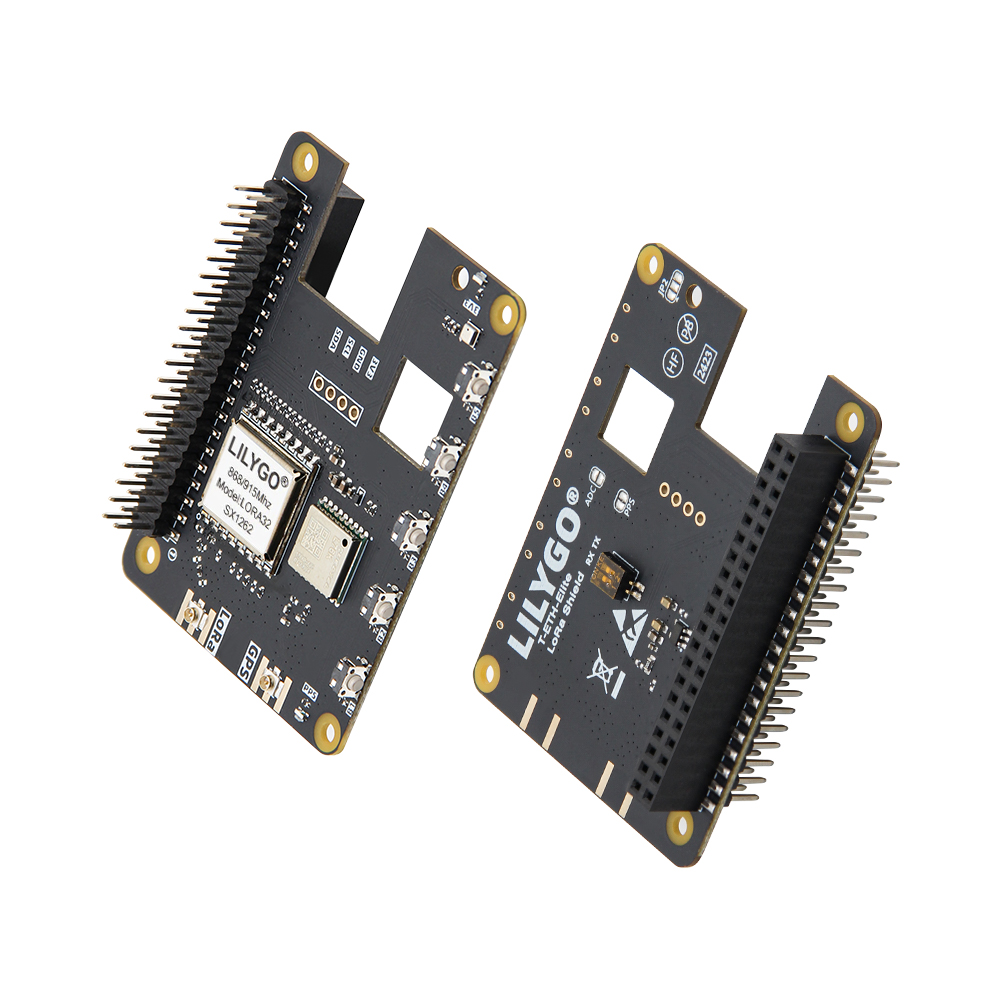

T-ETH Elite LoRa Shield is a LoRa end-node expansion board designed for the T-ETH-Elite mainboard. Integrates multi-band LoRa communication supporting T-LR1121, SX1262, SX1276, and SX1280 modules (covering 2.4 GHz and 830–945 MHz bands), plus L76K GPS positioning. Features a 40-PIN GPIO header (Raspberry Pi compatible), SPI interface (MISO/MOSI/SCLK/CS), and control pins (RST/IRQ/BUSY), 4 × M2.5 mounting holes. Combined with the T-ETH-Elite's W5500 Ethernet and PoE (36–57 V), suitable for logistics tracking, asset location, and outdoor sensor deployments.
Quick Start
Example Support
| Example | PlatformIO/Arduino | ESP-IDF | Description |
|---|---|---|---|
| T-ETH-Series Examples | ✓ | LoRa end node examples |
PlatformIO
- Install Visual Studio Code and Python
- Search for and install the PlatformIO IDE extension in VS Code
- Clone the LilyGO-T-ETH-Series repository
- Open
platformio.iniand uncomment the desired example - Click ✓ to compile, click → to upload
Arduino
Refer to the T-ETH-Elite Quick Start guide for Arduino board settings.
Development Platforms
Video
Key Features
- LoRa end-node expansion for T-ETH-Elite mainboard
- Multi-band support: SX1262, SX1276, SX1280, T-LR1121 (2.4 GHz + 830–945 MHz)
- L76K GPS for real-time location tracking
- 40-PIN GPIO (Raspberry Pi compatible), 4 × M2.5 mounting holes
Product Parameters
| Feature | Specification |
|---|---|
| LoRa Modules | SX1262, SX1276, SX1280, T-LR1121 |
| LoRa Bands | 2.4 GHz + 830–945 MHz |
| GPS | L76K |
| GPIO | 40-PIN (Raspberry Pi compatible) |
| Compatible Mainboard | T-ETH-Elite |

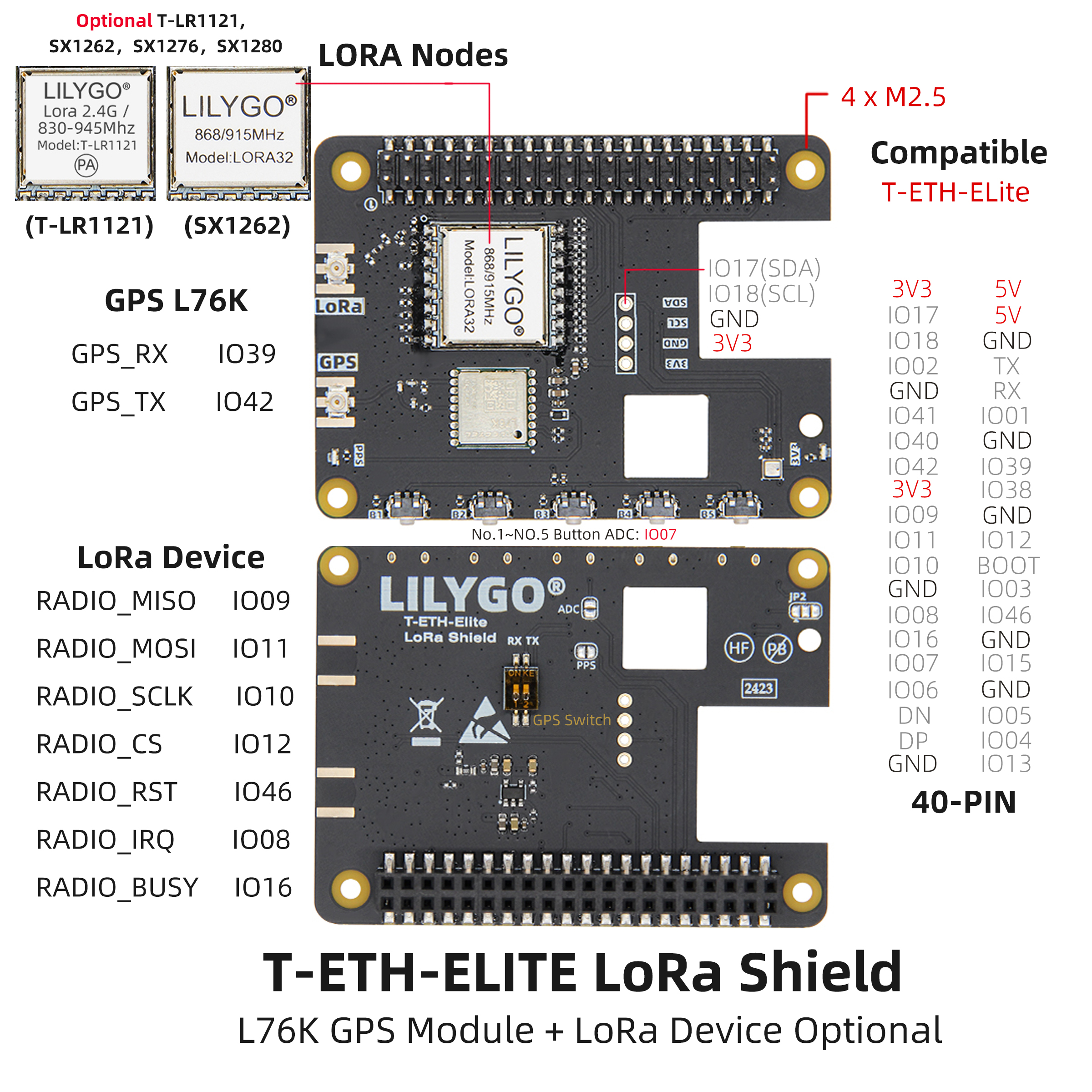

Pin Diagram
Dimension Diagram
Schematic
Datasheet
Software Development
Dependent Libraries
FAQ
- Q. Which mainboard is required to use T-ETH Elite LoRa Shield? A. Designed for the T-ETH-Elite mainboard. Does not function standalone.
Version History
| Version | Release Date | Update Description |
|---|---|---|
| T-ETH Elite LoRa Shield V1.0 | — | Initial version |
