Overview
LILYGO T7 (Mini32) is a compact general-purpose ESP32-WROVER development board. Based on the ESP32-WROVER-E module with 4–16 MB Flash, 8 MB PSRAM, Wi-Fi, and Bluetooth 4.2 + BLE, it is WROVER-compatible and supports MicroPython, Arduino, and ESP-IDF. Features CH9102 USB-to-UART, STEMMA QT/Qwiic JST connectors, and a compact form factor suitable for prototyping and production.
Quick Start
Example Support
| Example | PlatformIO/Arduino | ESP-IDF | Description |
|---|---|---|---|
| TTGO-T7-Demo | ✓ | GPIO, PSRAM, Wi-Fi examples |
Arduino
- Install Arduino IDE and Arduino ESP32
- In Tools → Board, configure:
| Arduino IDE Setting | Value |
|---|---|
| Board | ESP32 Wrover Module |
| Upload Speed | 921600 |
| Flash Size | 4MB (32Mb) or 16MB (128Mb) |
| Partition Scheme | Huge APP (3MB No OTA/1MB SPIFFS) |
| PSRAM | Enabled |
Key Features
- ESP32-WROVER-E (Xtensa dual-core LX6 @ 240 MHz), Wi-Fi + Bluetooth 4.2 + BLE
- 4 or 16 MB Flash, 8 MB PSRAM
- CH9102 USB-to-UART
- STEMMA QT / Qwiic JST-SH connector

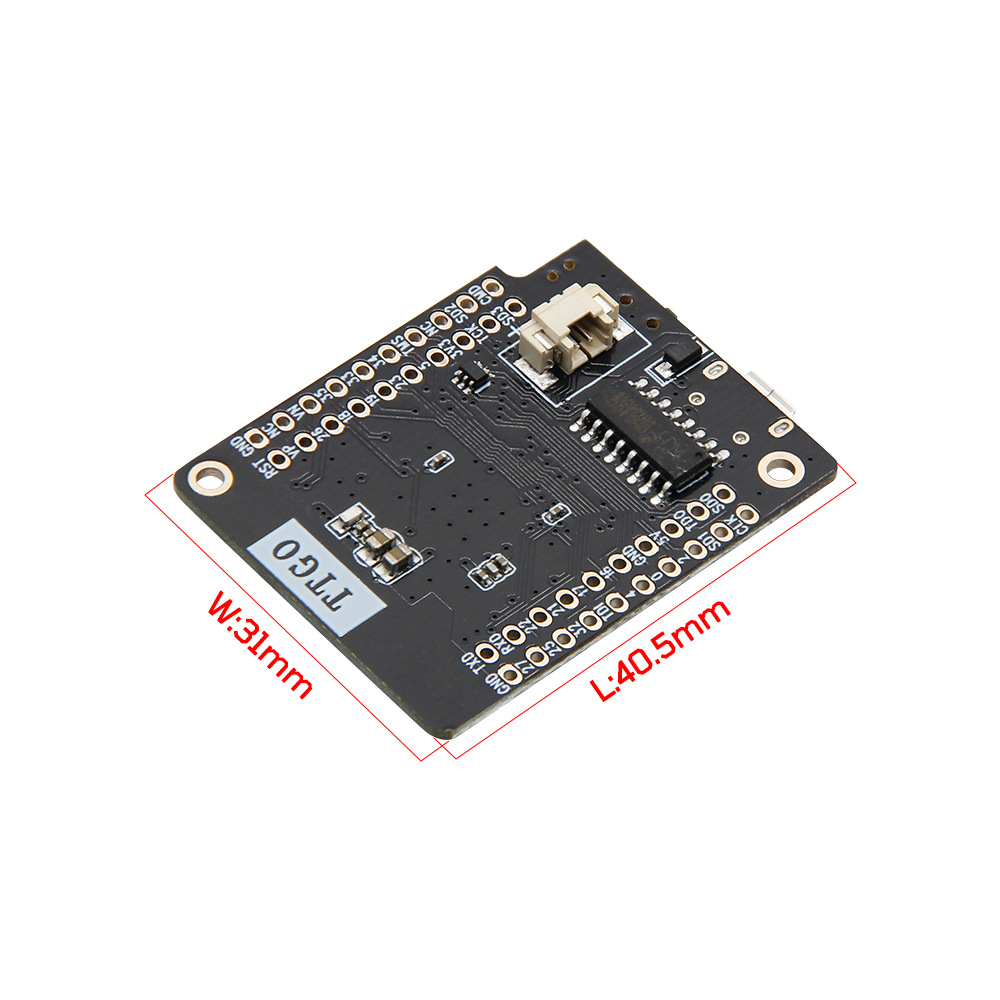

- Compact Mini32 form factor (40 × 31 mm)
- MicroPython support
- Battery support (Li-Po with charging)
Specifications
| Parameter | Value |
|---|---|
| SOC | ESP32-WROVER-E, Dual-core LX6 @ 240 MHz |
| Flash | 4 MB or 16 MB |
| PSRAM | 8 MB |
| Wireless | Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 4.2 + BLE |
| USB Serial | CH9102 |
| Dimensions | 40 × 31 mm |
Software Libraries
Changelog
| Version | Date | Notes |
|---|---|---|
| V1.3 | Initial release | |
| V1.5 | Added PSRAM |
