T-ETH Gateway Shield
Overview
T-ETH Gateway Shield is a LoRa gateway expansion board designed for the T-ETH-Elite mainboard. Supports mainstream LoRa modules including SX1276, SX1262, SX1280, and LR1121, with optional GPS positioning (L76K). When combined with the T-ETH-Elite's W5500 Ethernet, Wi-Fi/Bluetooth, and PoE (36–57 V), it forms a complete LoRa network gateway hub. Suitable for agricultural environmental monitoring, smart city node management, and long-range low-power wide-area IoT deployments.
Quick Start
Example Support
| Example | PlatformIO/Arduino | ESP-IDF | Description |
|---|---|---|---|
| T-ETH-Series Examples | ✓ | LoRa gateway examples |
PlatformIO
- Install Visual Studio Code and Python
- Search for and install the PlatformIO IDE extension in VS Code
- Clone the LilyGO-T-ETH-Series repository
- Open
platformio.iniand uncomment the desired example - Click ✓ to compile, click → to upload
Arduino
Refer to the T-ETH-Elite Quick Start guide for Arduino board settings.
Development Platforms
Video
Key Features
- LoRa gateway expansion for T-ETH-Elite mainboard
- Compatible with SX1276, SX1262, SX1280, LR1121 modules
- Optional L76K GPS (868/915 MHz frequency bands)
- Works with T-ETH-Elite's W5500 Ethernet, PoE (36–57 V), and Wi-Fi/BT
Product Parameters
| Feature | Specification |
|---|---|
| LoRa Modules | SX1276, SX1262, SX1280, LR1121 |
| GPS | L76K (optional) |
| Compatible Mainboard | T-ETH-Elite |

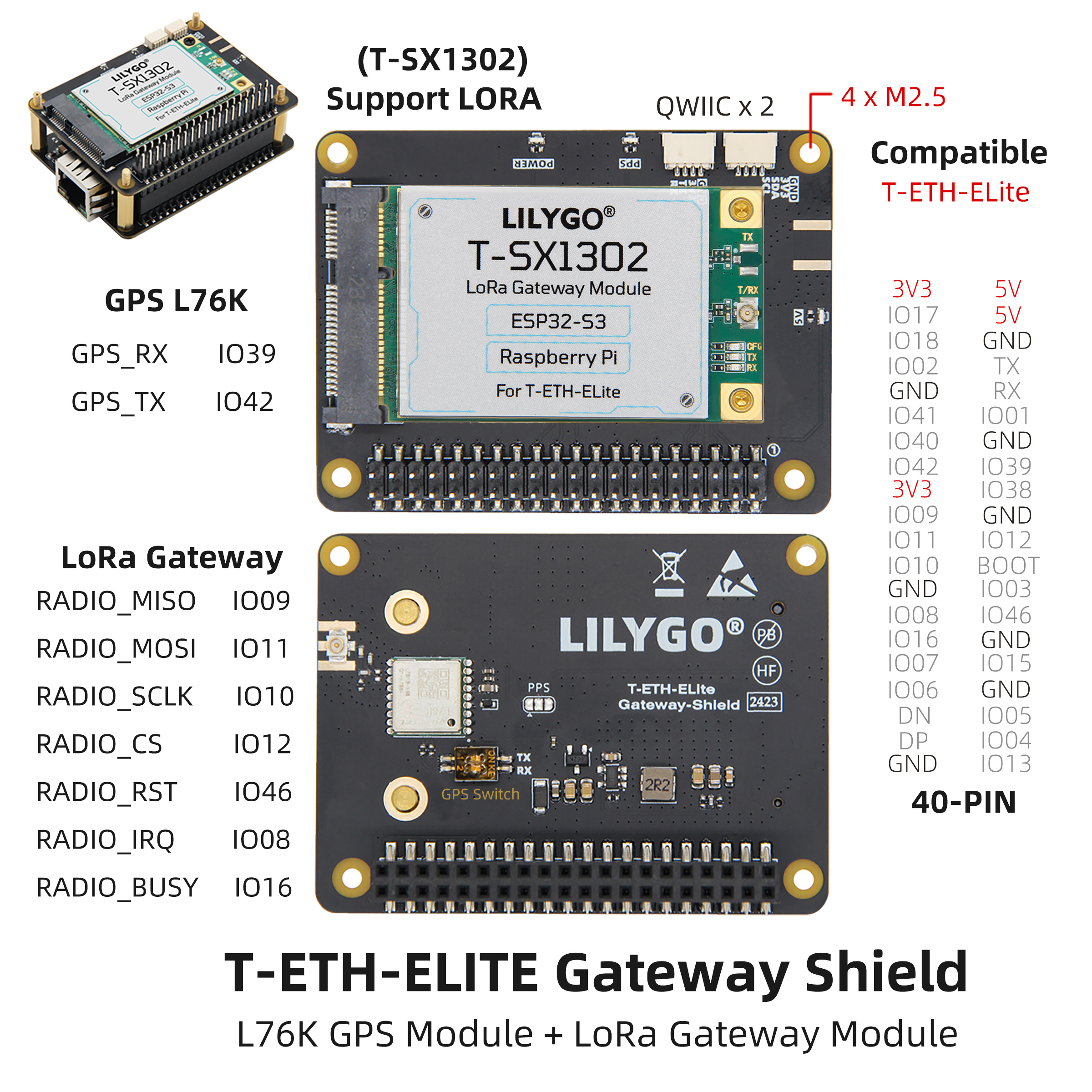

Pin Diagram
Dimension Diagram
Schematic
Datasheet
Software Development
Dependent Libraries
FAQ
- Q. Which mainboard is required to use T-ETH Gateway Shield? A. Designed for the T-ETH-Elite mainboard. Does not function standalone.
Version History
| Version | Release Date | Update Description |
|---|---|---|
| T-ETH Gateway Shield V1.0 | — | Initial version |
