Overview

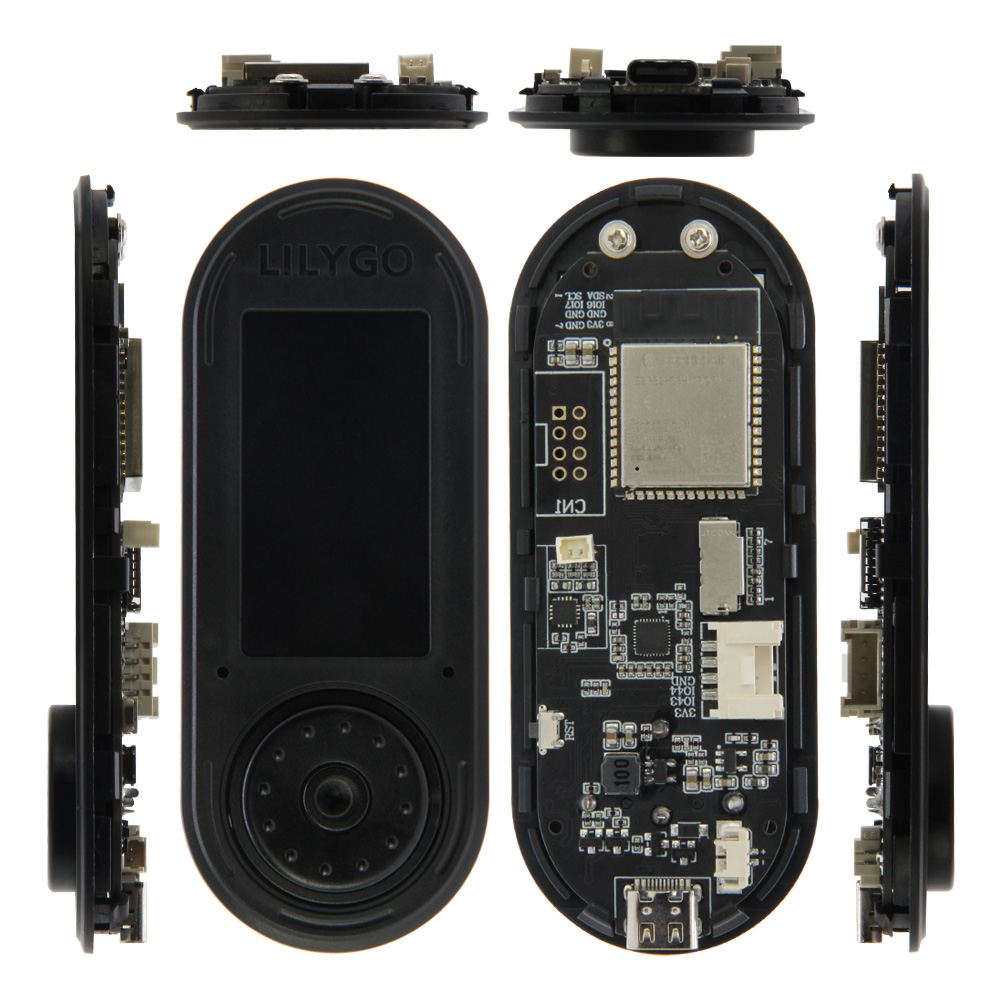

LILYGO T-Embed is a multi-functional ESP32-S3 development platform featuring a 1.9-inch ST7789V IPS TFT (320 × 170), a 24-step rotary encoder, 7 APA102 RGB LEDs, a stereo speaker (MAX98357A I2S amplifier), dual MEMS microphones, and a MicroSD card slot. Powered by the ESP32-S3 dual-core LX7 @ 240 MHz with Wi-Fi and Bluetooth 5.0, it includes a 3.7 V Li-Po battery port and a 1300 mAh battery. Suitable for audio players, smart remote controls, LVGL-based HMI interfaces, and embedded IoT hubs.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
T-Embed	✓		Display, audio, LED, encoder, SD examples

PlatformIO

1. Install Visual Studio Code and Python
2. Search for and install the PlatformIO IDE extension in VS Code
3. Open the T-Embed project folder
4. Open platformio.ini and select your example
5. Click ✓ to compile, connect via USB-C, click → to upload

Arduino

1. Install Arduino IDE
2. Install Arduino ESP32
3. In Tools → Board, configure:

Arduino IDE Setting	Value
Board	ESP32S3 Dev Module
Port	Your port
USB CDC On Boot	Enable
CPU Frequency	240 MHz (WiFi)
Flash Mode	QIO 80 MHz
Flash Size	16MB (128Mb)
Partition Scheme	16M Flash (3MB APP/9.9MB FATFS)
PSRAM	OPI PSRAM
Upload Mode	UART0/Hardware CDC
Upload Speed	921600
USB Mode	CDC and JTAG

4. Click Upload

Development Platforms

1. ESP-IDF
2. Arduino IDE

Related Videos

Key Features

• ESP32-S3 dual-core LX7 @ 240 MHz, Wi-Fi + Bluetooth 5.0
• 1.9-inch ST7789V IPS TFT (320 × 170), LVGL UI
• 24-step rotary encoder with push button
• 7 × APA102 RGB LEDs (SPI-controlled)
• MAX98357A I2S stereo amplifier + built-in speaker
• Dual MEMS PDM microphones
• MicroSD card slot
• 16 MB Flash, 8 MB PSRAM
• 3.7 V Li-Po battery support (1300 mAh included)
• 2 × QWIIC (I2C) expansion connectors

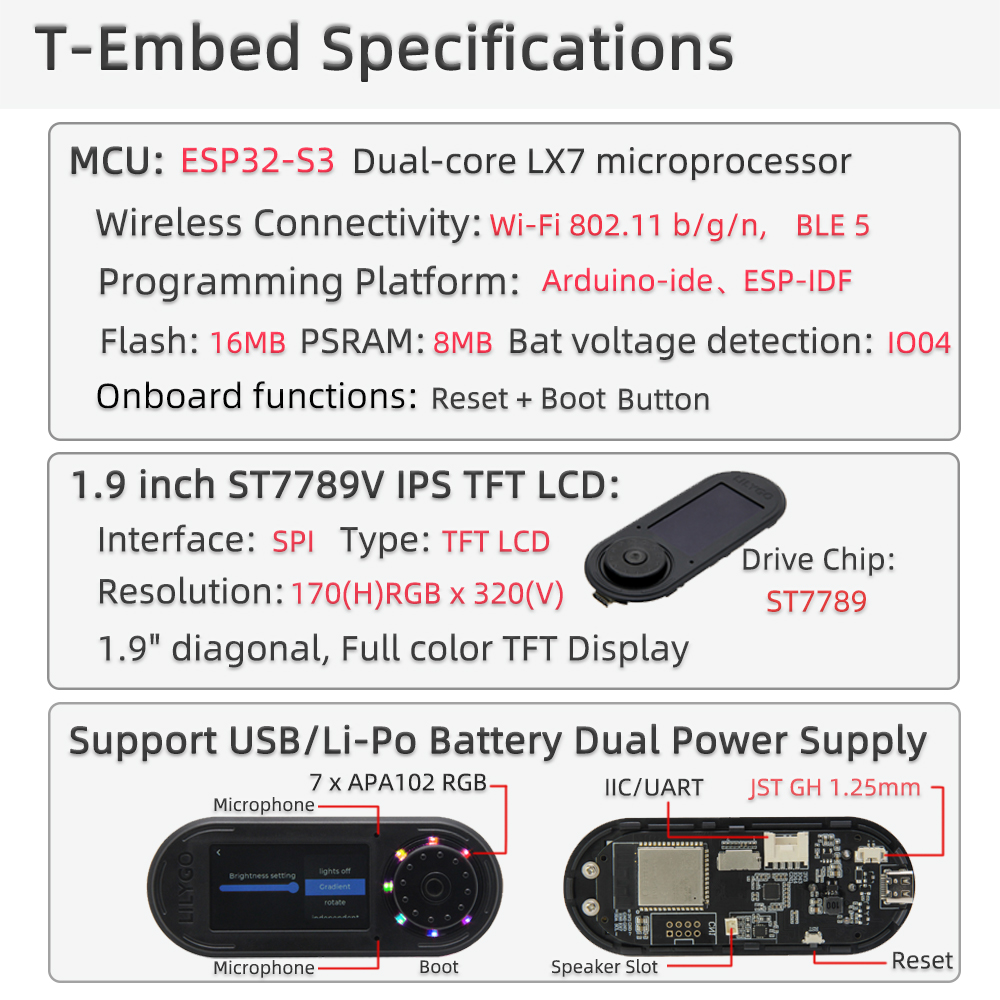

Specifications

Parameter	Value
SOC	ESP32-S3, Dual-core LX7 @ 240 MHz
Flash	16 MB
PSRAM	8 MB
Wireless	Wi-Fi 2.4 GHz 802.11 b/g/n, Bluetooth 5.0
Display	1.9-inch ST7789V IPS TFT, 320 × 170
RGB LEDs	APA102 × 7
Audio	MAX98357A I2S amplifier, dual MEMS mic, built-in speaker
Encoder	24-step rotary encoder with push button
Storage	MicroSD card slot (SPI)
Battery	3.7 V Li-Po, 1300 mAh
USB	1 × USB-C
Expansion	2 × QWIIC
Dimensions	95.4 × 36.4 mm

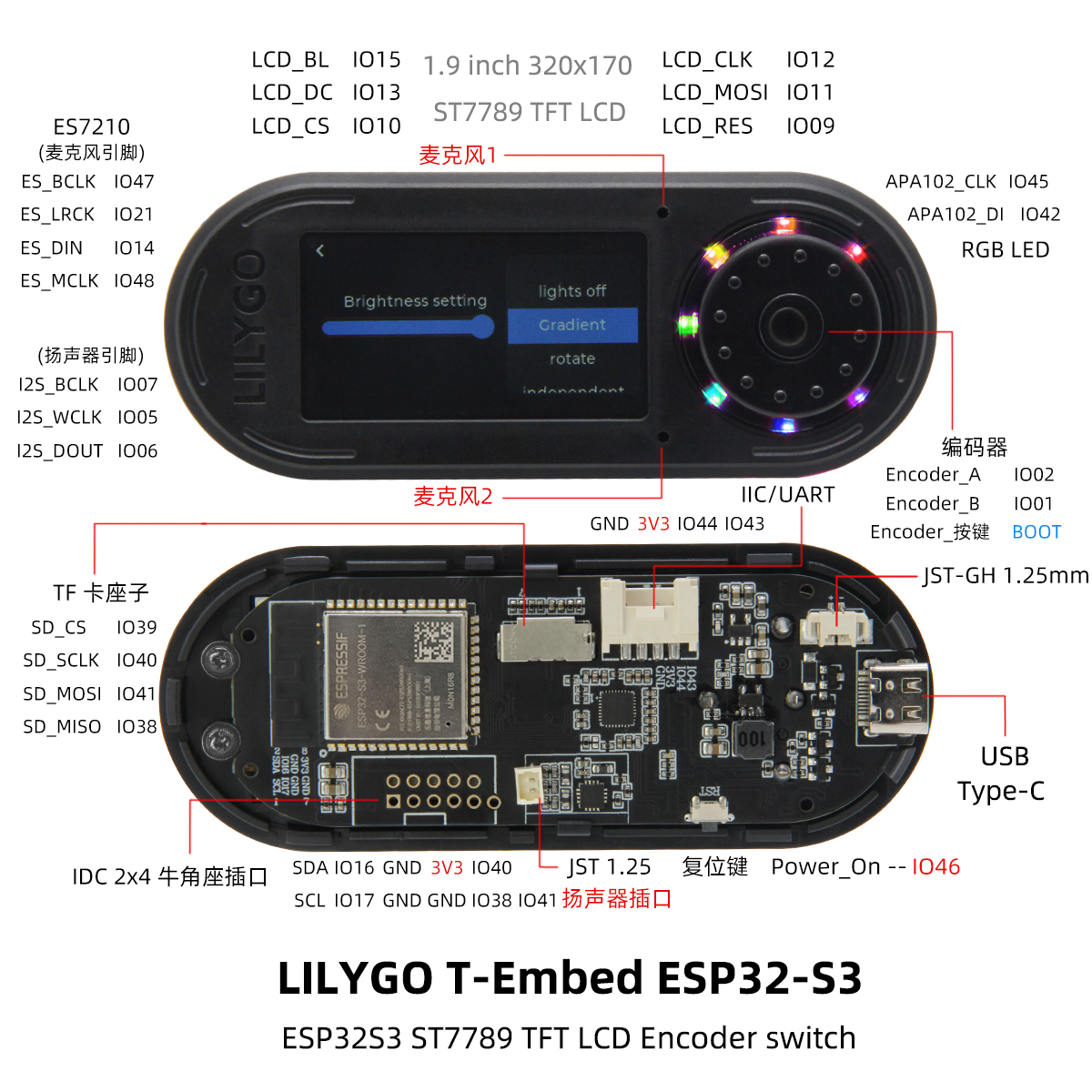

Pin Diagram

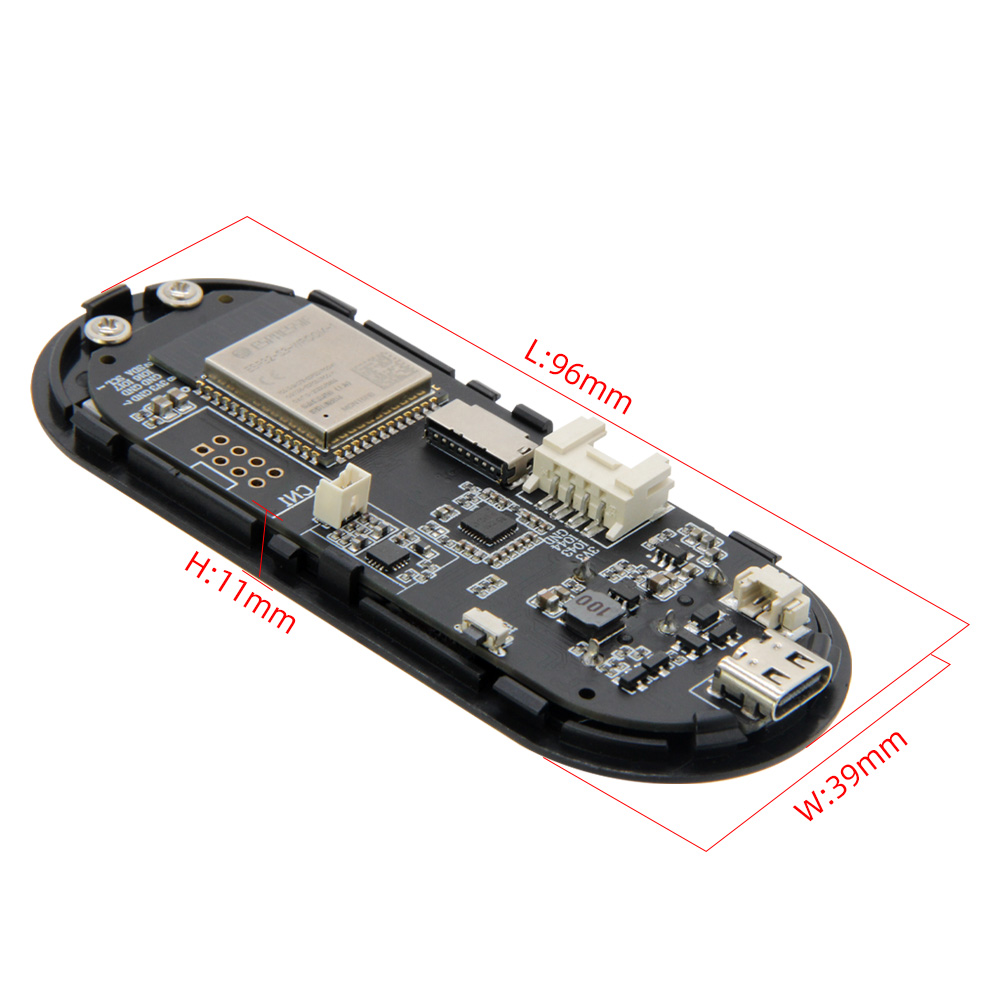

Dimensions

Schematic

• T-Embed GitHub Repository (hardware)

Datasheet

• ESP32-S3 Datasheet
• ST7789V Datasheet
• MAX98357A Datasheet

Software Libraries

• T-Embed GitHub Repository

Dependent Libraries

• TFT_eSPI
• FastLED
• ESP32-audioI2S
• LVGL
• RotaryEncoder

FAQ

• Q. Can T-Embed play audio files from MicroSD? A. Yes. With the ESP32-audioI2S library and MAX98357A amplifier, the T-Embed can stream MP3, AAC, and WAV files from a MicroSD card.

• Q. What is the difference between T-Embed and T-Embed CC1101? A. The T-Embed CC1101 adds a Sub-GHz CC1101 radio and PN532 NFC module. The base T-Embed focuses on display, audio, and LED control without wireless RF beyond Wi-Fi/BT.

Changelog

Version	Date	Notes
V1.0		Initial release
