Overview

T-Halow P4 is a high-performance IoT development board based on ESP32-P4 (16 MB Nor Flash QSPI, 32 MB package-stacked PSRAM), co-processor ESP32-C6-MINI (Wi-Fi 6 + Bluetooth 5.3, SDIO), and T-Halow module (Wi-Fi HaLow 802.11ah, 730–950 MHz). Features MIPI-DSI display interface, MIPI-CSI camera interface with H264/JPEG encoding (1080P), Pixel Processing Accelerator (PPA), and 2D DMA. The ESP32-P4 handles complex graphics and video tasks while the ESP32-C6 provides Wi-Fi 6 and Bluetooth 5.3 connectivity via esp-hosted-mcu over SDIO. Primary development platform: ESP-IDF v5.4.1+.

T-Halow-P4 and T-Halow use the same AT Command Set.

Quick Start

Example Support

Example	PlatformIO/Arduino	ESP-IDF	Description
T-Halow-P4 Examples		✓	Camera, HaLow, display examples

ESP-IDF (Primary)

1. Install Visual Studio Code and the ESP-IDF extension
2. Install ESP-IDF v5.4.1+
3. Clone the T-Halow-P4 repository
4. Build and flash:

   cd examples/xxx
   idf.py set-target esp32p4
   idf.py build
   idf.py -p PORT flash

Enter Download Mode:

1. Plug in USB, hold BOOT without releasing
2. Press RST briefly, then release
3. Serial output "wait for download" → in download mode
4. Release BOOT, then flash

Development Platforms

1. ESP-IDF — Primary platform (v5.4.1+)
2. PlatformIO

Video

Key Features

• ESP32-P4 (16 MB Flash, 32 MB stacked PSRAM), complex graphics and video processing
• ESP32-C6-MINI co-processor (Wi-Fi 6 + BT 5.3, SDIO)
• T-Halow module (Wi-Fi HaLow 802.11ah, 730–950 MHz, km-range)
• MIPI-DSI display + MIPI-CSI camera, H264 encoding, JPEG decoding (1080P 30fps)
• PPA pixel accelerator, 2D DMA, SPI, I2S, I2C, LED PWM, Ethernet

Product Parameters

Feature	Specification
MCU	ESP32-P4
Flash	16 MB (Nor Flash, QSPI)
PSRAM	32 MB (package-stacked)
Co-processor	ESP32-C6-MINI
Wi-Fi	Wi-Fi 6 (ESP32-C6, SDIO)
Bluetooth	Bluetooth 5.3 (ESP32-C6)
Wi-Fi HaLow	TX-AH (802.11ah), 730–950 MHz
Display	MIPI-DSI interface (with touch)
Camera	MIPI-CSI interface (1080P)
Video	H264 + JPEG encoding, JPEG decoding (1080P 30fps)
USB	1 × Type-C

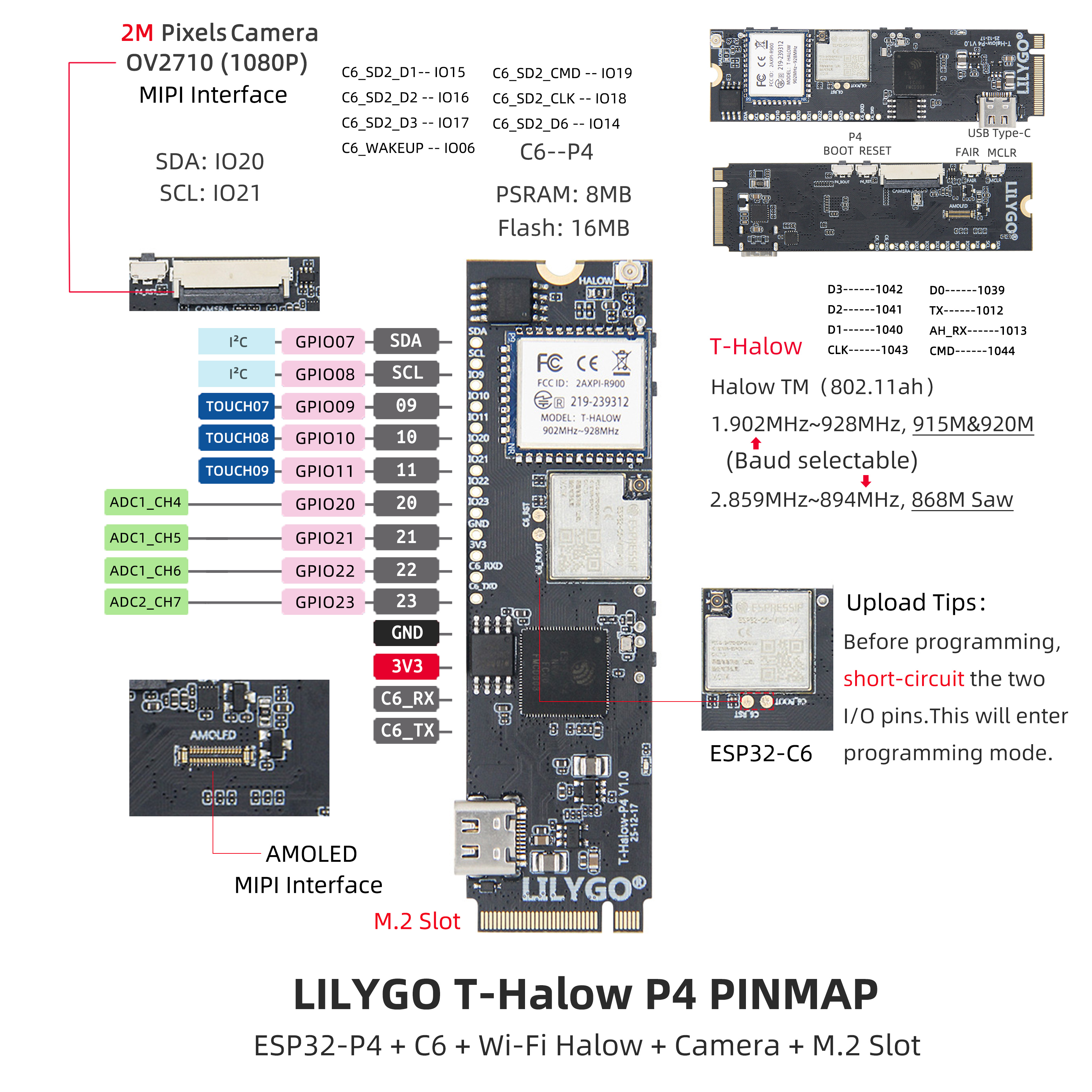

Pin Diagram

Pin Mapping

I2C	IO8 (SCL), IO7 (SDA)
Touch	IO8 (SCL), IO7 (SDA), IO11 (INT), IO10 (RST)
MIPI DSI	IO9 (RST)
Halow (SPI+UART)	IO44 (CMD), IO43 (CLK), IO42–IO39 (D3–D0), IO12 (TX), IO13 (RX)
ESP32-C6 (SDIO)	IO19 (CMD), IO18 (CLK), IO17–IO14 (D3–D0), IO6 (WAKEUP)

Dimension Diagram

Schematic

Datasheet

• ESP32-P4 Datasheet
• TX-AH Module Resources

Software Development

• T-Halow-P4 GitHub Repository

Dependent Libraries

• espressif/esp_hosted^1.4.1
• espressif/esp_wifi_remote^0.8.5
• espressif/esp_lcd_ek79007^1.0.2
• lvgl/lvgl

FAQ

• Q. How do I enter download mode? A. Hold BOOT, press RST once, release RST while still holding BOOT, then flash with idf.py flash.

• Q. Which ESP-IDF version is required? A. ESP-IDF v5.4.1 or newer. Configure and build with idf.py set-target esp32p4.

• Q. What frequency bands does the HaLow module support? A. 868 MHz (859–894 MHz) and 915 MHz (902–928 MHz). Select appropriate band per regional regulations.

Version History

Version	Release Date	Update Description
T-Halow P4 V1.0	2025-12-04	Initial version: ESP32-P4 + ESP32-C6 + T-Halow
